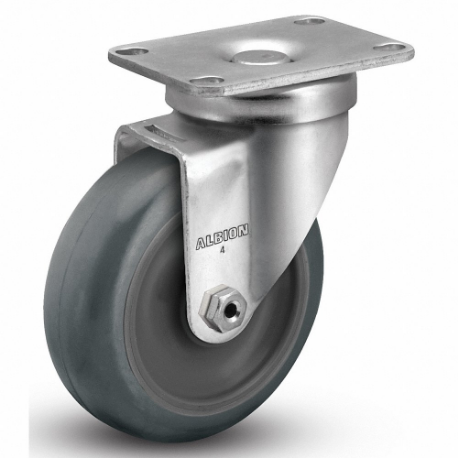

ALBION CASTERS P2XR03028S Plate Caster, 3 Inch Dia, 4 1/4 Inch Height, Swivel
Get it by Thursday, Feb 19
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Brake Type | No Brake Included |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Swivel |
| Esd Conductive | No |
| Features | Ergonomic, Harsh Environment Wheel, MainteNaNce Free, Floor Protective Wheel |
| For Axle Dia. | 3/8" |
| Frame Color | Gray |
| Frame Finish | Zinc |
| Includes Spanner Bushing | Yes |
| Includes Thread Guards | Yes |
| Inside Bolt Hole Spacing | 1 3/4" x 2 13/16" |
| Load Rating | 200 lbs. |
| Load Rating Range | 0 lbs. to 299 lbs. |
| Mounting Bolt Dia. | 5/16" |
| Mounting Height | 4 1/4" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 2 1/2" x 3 5/8" |
| Mounting Plate Size & Bolt Hole Pattern | 2 1/2" X 3 5/8" ( B ) |
| Non-marking | Yes |
| Nsf Listed | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -45°F to +180°F |
| Operating Temperature Range | -45°F to +180°F |
| Outside Bolt Hole Spacing | 1 3/4" x 3 1/16" |
| Series | P2 Series |
| Swivel Bearing Seal Type | Sealed |
| Swivel Construction | Swivel |
| Swivel Lock Type | No Lock Included |
| Tread Material, Wheel Material | Rubber |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Core Material | Polypropylene |
| Wheel Core Type | Solid |
| Wheel Diameter | 3" |
| Wheel Type | Tread On Core |
| Wheel Width | 1 1/4" |
| Wheel/tread Color | Gray |
| Wheel/tread Hardness | 65-75A |
| Wheel/tread Hardness Rating | Soft |
Shipping Info:
| Ship weight (kg) | 0.62 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Caster Sub-type | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Width | Wheel Bearing Type | Load Rating | Mounting Height | Mounting Plate Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
18AX04228SFBE | Swivel | 2 5/8" x 3" | 3" x 3 5/8" | 2" | Precision Ball | 800 lbs. | 5 5/8" | 4.5" x 4" | €257.40 | |
 |
18EG04229SFBE | Swivel | 2 5/8" x 3" | 3" x 3 5/8" | 2" | Precision Ball | 600 lbs. | 5 5/8" | 4" x 4 1/2" | €189.29 | |
 |
18XS04229SFBE | Swivel | 2 5/8" x 3" | 3" x 3 5/8" | 2" | Precision Ball | 350 lbs. | 5 5/8" | 4" x 4 1/2" | €287.14 | |
 |
18EG04229R | Rigid | 2 5/8" x 3" | 3" x 3 5/8" | 2" | Precision Ball | 600 lbs. | 5 5/8" | 4" x 4 1/2" | €68.42 | |
 |
18EG04229S | Swivel | 2.625" x 3" | 3" x 3.625" | 2" | Precision Ball | 600 lbs. | 5 5/8" | 4" x 4.5" | €150.65 | |
 |
18XS04229S | Swivel | 2 5/8" x 3" | 3" x 3 5/8" | 2" | Precision Ball | 350 lbs. | 5 5/8" | 4.5" x 4" | €227.78 | |
 |
18AX04228S | Swivel | 2 5/8" x 3" | 3" x 3 5/8" | 2" | Precision Ball | 800 lbs. | 5 5/8" | 4" x 4 1/2" | €202.26 |
