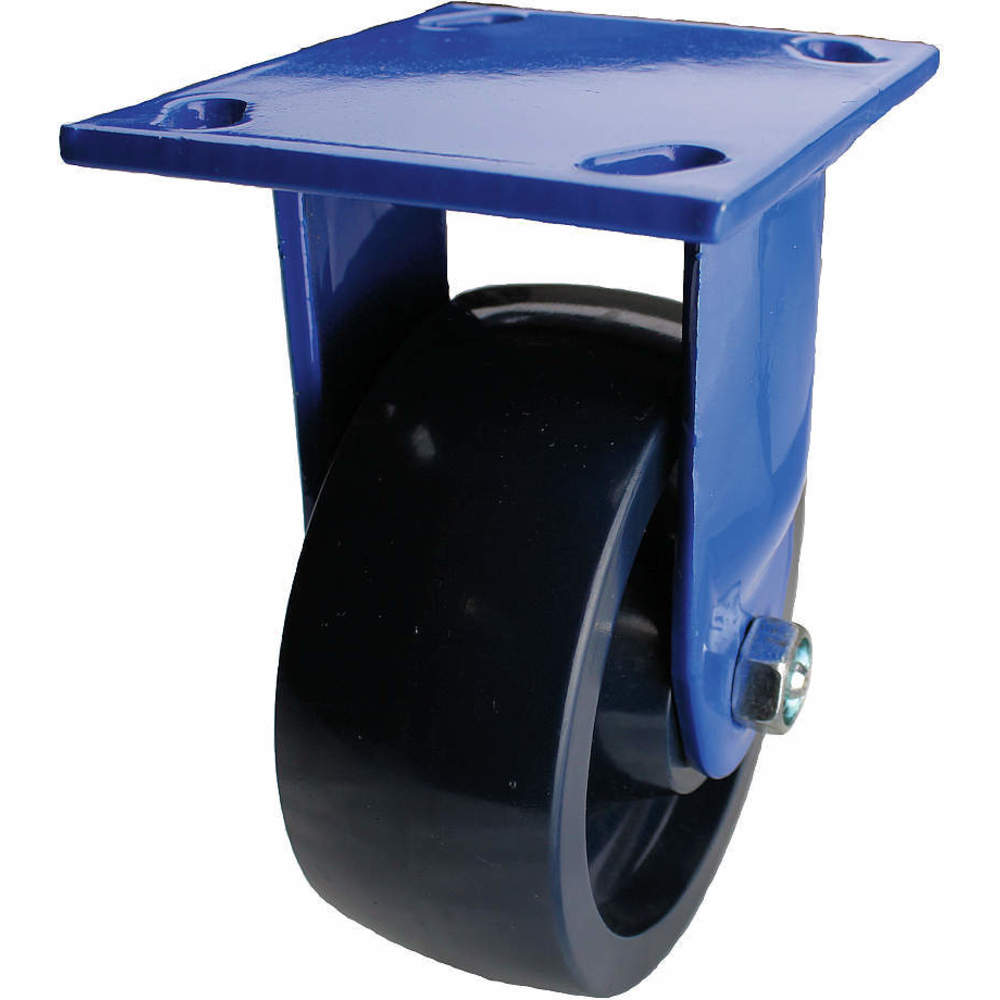

ALBION CASTERS 934FK05252R-BLUGN Rigid Plate Caster 900 Lb 5 Inch Diameter
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€64.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Plate Caster |
| Application | Food Processing, Food Service, Hospitality, Institutional, Pharmaceuticals |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 300 lbs. to 999 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Rigid Caster |
| Caster Sub-type | Rigid |
| Caster Temp. Range Available | Yes |
| Caster Type | Rigid |
| Caster Wheel Material | Polyurethane |
| Core Color | Blue |
| Core Material | Polyurethane |
| Durometer | 55 Shore D |
| Extended Lead | No |
| Frame Finish | Blue Powder Coat |
| Frame Material | Steel |
| Hole Pattern | B |
| Includes | Top And Bottom Grease Seals |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 3" x 3" |
| Load Rating | 750 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 6 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -40°F to +180°F |
| Outside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Overall Height | 6 1/2" |
| Plate Size | 4" x 4 1/2" |
| Plate Thickness | 1/4" |
| Plate Type | B |
| Standards | Icwm, Nsf Listed |
| Swivel Lock Type | No Lock Included |
| Swivel Radius | 0.0" |
| Tread Shape | Standard |
| Wheel Bearing Material | Delrin |
| Wheel Bearing Type | Delrin |
| Wheel Color | Blue |
| Wheel Core Material | Polyurethane |
| Wheel Diameter | 5" |
| Wheel Material | Polyurethane |
| Wheel Width | 2" |
| Wheel/tread Color | Blue |
| Wheel/tread Hardness | 75 Shore D |
| Wheel/tread Hardness Rating | Hard |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 1.82 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 10.67 |
| HS code | 8716900000 |
| Country of Origin | US |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Caster Brake Type | Mounting Height | Mounting Plate Bolt Hole Pattern | Mounting Plate Size | Wheel/tread Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
110FR05201RG | 3" x 3" | 2 5/8" x 3 5/8" | Roller | No Brake Included | 6 1/2" | B | 4" x 4 1/2" | Ductile Iron | €63.82 | |
|
110FR06201RG | 3" x 3" | 2 5/8" x 3 5/8" | Roller | No Brake Included | 7 1/2" | B | 4" x 4 1/2" | Ductile Iron | €74.85 | |
|
110FR08201RG | 3" x 3" | 2 5/8" x 3 5/8" | Roller | No Brake Included | 10 1/8" | B | 4" x 4 1/2" | Ductile Iron | €95.43 | |
 |
110PM05228RG | 3" x 3" | 2 5/8" x 3 5/8" | Precision Ball | No Brake Included | 6 1/2" | B | 4" x 4 1/2" | Polyurethane | €81.38 | |
 |
110XA04201RG | 3" x 3" | 2 5/8" x 3 5/8" | Roller | No Brake Included | 5 5/8" | B | 4" x 4 1/2" | Polyurethane | €49.19 | |
|
110XA05201RG | 3" x 3" | 2 5/8" x 3 5/8" | Roller | No Brake Included | 6 1/2" | B | 4" x 4 1/2" | Polyurethane | €51.10 | |
|
110XA06201RG | 3" x 3" | 2 5/8" x 3 5/8" | Roller | No Brake Included | 7 1/2" | B | 4" x 4 1/2" | Polyurethane | €71.48 |
