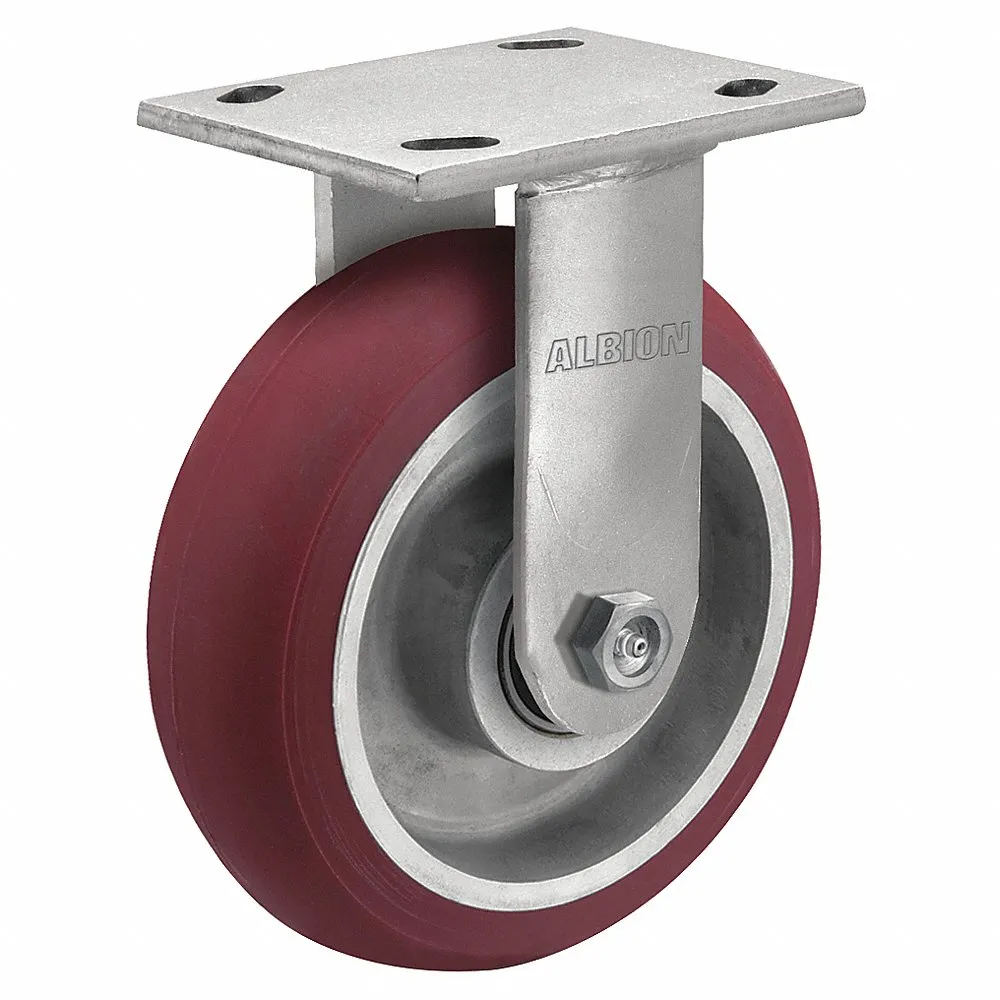

ALBION CASTERS 18AX04228R Plate Caster, 4 Inch Dia, 5 5/8 Inch Height, Rigid
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€133.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Bearing Type | Precision Ball |
| Brake Type | No Brake Included |
| Capacity | 800 lbs. |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Sub-type | Rigid |
| Caster Type | Rigid |
| Core Material | Aluminum |
| Fastening Size | 4 1/2'' x 4'' |
| Fastening Type | Top Plate Rigid |
| Frame Finish | Zinc |
| Hardness | 85 Shore A |
| Includes Spanner Bushing | No |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 5/8" x 3" |
| Load Rating | 800 lbs. |
| Mount Height | 5.625" |
| Mounting Height | 5 5/8" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4.5" x 4" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| Non-marking | Yes |
| Nsf Listed | No |
| Number Of Wheels | 1 |
| Operating Temp. Range | -40°F to +180°F |
| Outside Bolt Hole Spacing | 3" x 3 5/8" |
| Swivel Construction | Rigid |
| Tread Material, Wheel Material | Polyurethane |
| Tread Shape | Standard |
| Tread Width | 2" |
| Wheel Bearing Type | Precision Ball |
| Wheel Core Material | Aluminum |
| Wheel Diameter | 4" |
| Wheel Face | Radius Tread |
| Wheel Material | Polyurethane |
| Wheel Type | AX |
| Wheel Width | 2" |
| Wheel/tread Color | Maroon |
| Wheel/tread Hardness | 85 Shore A |
| Wheel/tread Hardness Rating | Soft |
Shipping Info:
| Ship weight (kg) | 1.69 |
Product Variants
| Product | Model | Caster Sub-type | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Width | Wheel Bearing Type | Load Rating | Mounting Height | Mounting Plate Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
18AX04228SFBE | Swivel | 2 5/8" x 3" | 3" x 3 5/8" | 2" | Precision Ball | 800 lbs. | 5 5/8" | 4.5" x 4" | €257.40 | |
 |
18EG04229SFBE | Swivel | 2 5/8" x 3" | 3" x 3 5/8" | 2" | Precision Ball | 600 lbs. | 5 5/8" | 4" x 4 1/2" | €189.29 | |
 |
18XS04229SFBE | Swivel | 2 5/8" x 3" | 3" x 3 5/8" | 2" | Precision Ball | 350 lbs. | 5 5/8" | 4" x 4 1/2" | €287.14 | |
 |
18EG04229R | Rigid | 2 5/8" x 3" | 3" x 3 5/8" | 2" | Precision Ball | 600 lbs. | 5 5/8" | 4" x 4 1/2" | €68.42 | |
 |
18EG04229S | Swivel | 2.625" x 3" | 3" x 3.625" | 2" | Precision Ball | 600 lbs. | 5 5/8" | 4" x 4.5" | €150.65 | |
 |
18XS04229S | Swivel | 2 5/8" x 3" | 3" x 3 5/8" | 2" | Precision Ball | 350 lbs. | 5 5/8" | 4.5" x 4" | €227.78 | |
 |
18AX04228S | Swivel | 2 5/8" x 3" | 3" x 3 5/8" | 2" | Precision Ball | 800 lbs. | 5 5/8" | 4" x 4 1/2" | €202.26 |
