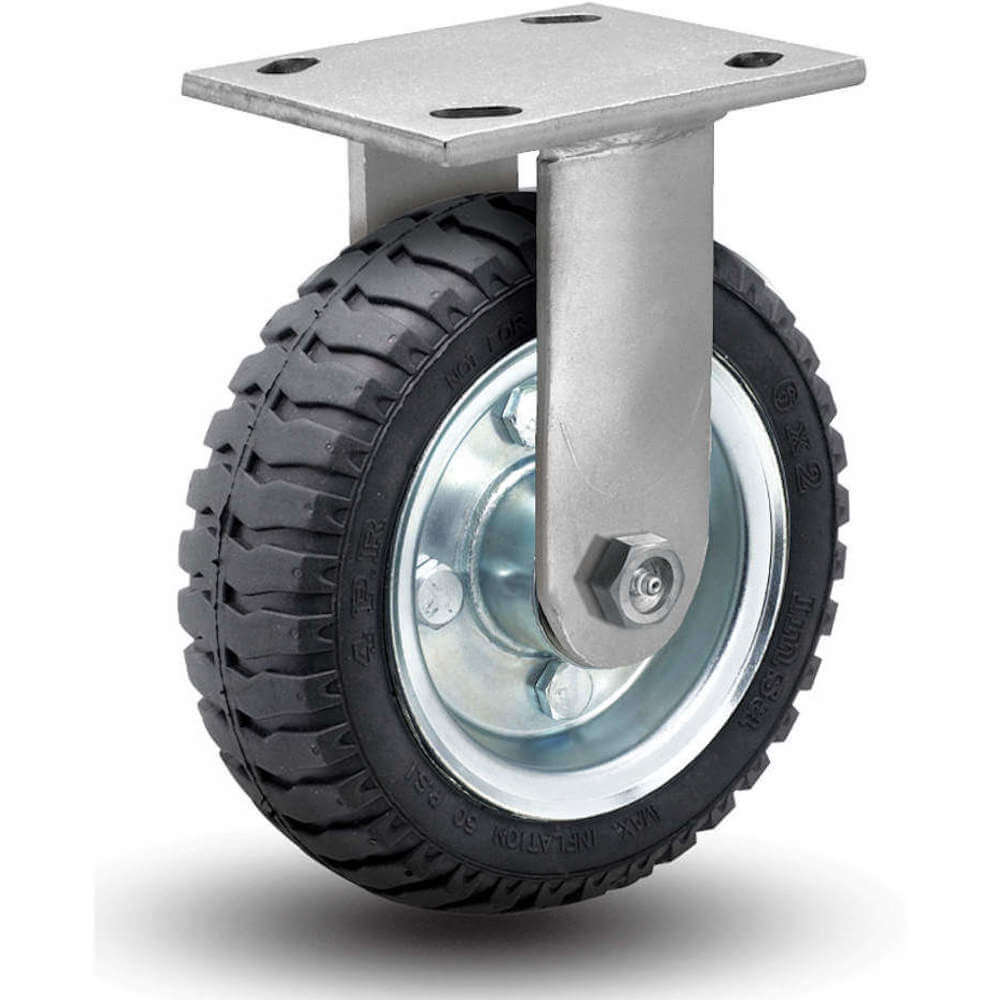

ALBION CASTERS 16SZ08427RG Rigid Plate Caster 350 Lb Black Steel
Get it by Tuesday, Sep 1
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
€117.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Plate Caster |
| Application | All Purpose Industrial And Commercial Casters |
| Bearing Type | Double Ball |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating | 300 lbs. to 999 lbs. |
| Caster Material | Monoprene |
| Caster Mounting Type | Plate |
| Caster Product Group | Rigid Caster |
| Caster Sub-type | Rigid |
| Caster Temp. Range Available | Yes |
| Caster Type | Rigid |
| Caster Wheel Material | Monoprene |
| Core Color | Silver |
| Core Material | Steel |
| Durometer | 60 Shore A |
| Extended Lead | No |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | B |
| Included Thread Guards | No |
| Inside Bolt Hole Spacing | 3" x 3" |
| Load Rating | 350 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 7 1/4" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( A ) |
| No. Of Mounting Holes | 4 |
| No. Of Wheels | 1 |
| Non-marking | Yes |
| Operating Temp. | -40°F to +180°F |
| Outside Bolt Hole Spacing | 3" x 3 5/8" |
| Overall Height | 10 1/8" |
| Plate Caster Core Material | Steel |
| Plate Caster Lock | No Lock Included |
| Plate Caster Wheel Material | Monoprene |
| Plate Size | 4" x 4 1/2" |
| Plate Thickness | 1/4" |
| Plate Type | B |
| Raceway Type | Double Ball |
| Replacement Wheel | SZ0842708G |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 0.0" |
| Tread | Sawtooth |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Precision Ball |
| Wheel Color | Black |
| Wheel Core Material | Steel |
| Wheel Dia. | 8" |
| Wheel Width | 2" |
| Wheel/tread Hardness | 65-75 Shore A , Soft |
| Wheel/tread Material | Monoprene |
Shipping Info:
| Ship weight (kg) | 3.94 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 20.32 |
| HS code | 8302200000 |
Product Details:
- Plate Caster Brake (No)
- Thread Guard (No)
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Dia. | Wheel Bearing Type | Caster Brake Type | Mounting Height | Mounting Plate Bolt Hole Pattern | Mounting Plate Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
110FR05201RG | 3" x 3" | 2 5/8" x 3 5/8" | 5" | Roller | No Brake Included | 6 1/2" | B | 4" x 4 1/2" | €50.46 | |
|
110FR06201RG | 3" x 3" | 2 5/8" x 3 5/8" | 6" | Roller | No Brake Included | 7 1/2" | B | 4" x 4 1/2" | €59.18 | |
|
110FR08201RG | 3" x 3" | 2 5/8" x 3 5/8" | 8" | Roller | No Brake Included | 10 1/8" | B | 4" x 4 1/2" | €75.46 | |
 |
110PM05228RG | 3" x 3" | 2 5/8" x 3 5/8" | 5" | Precision Ball | No Brake Included | 6 1/2" | B | 4" x 4 1/2" | €75.53 | |
 |
110XA04201RG | 3" x 3" | 2 5/8" x 3 5/8" | 4" | Roller | No Brake Included | 5 5/8" | B | 4" x 4 1/2" | €38.91 | |
|
110XA05201RG | 3" x 3" | 2 5/8" x 3 5/8" | 5" | Roller | No Brake Included | 6 1/2" | B | 4" x 4 1/2" | €40.41 | |
|
110XA06201RG | 3" x 3" | 2 5/8" x 3 5/8" | 6" | Roller | No Brake Included | 7 1/2" | B | 4" x 4 1/2" | €54.65 |
