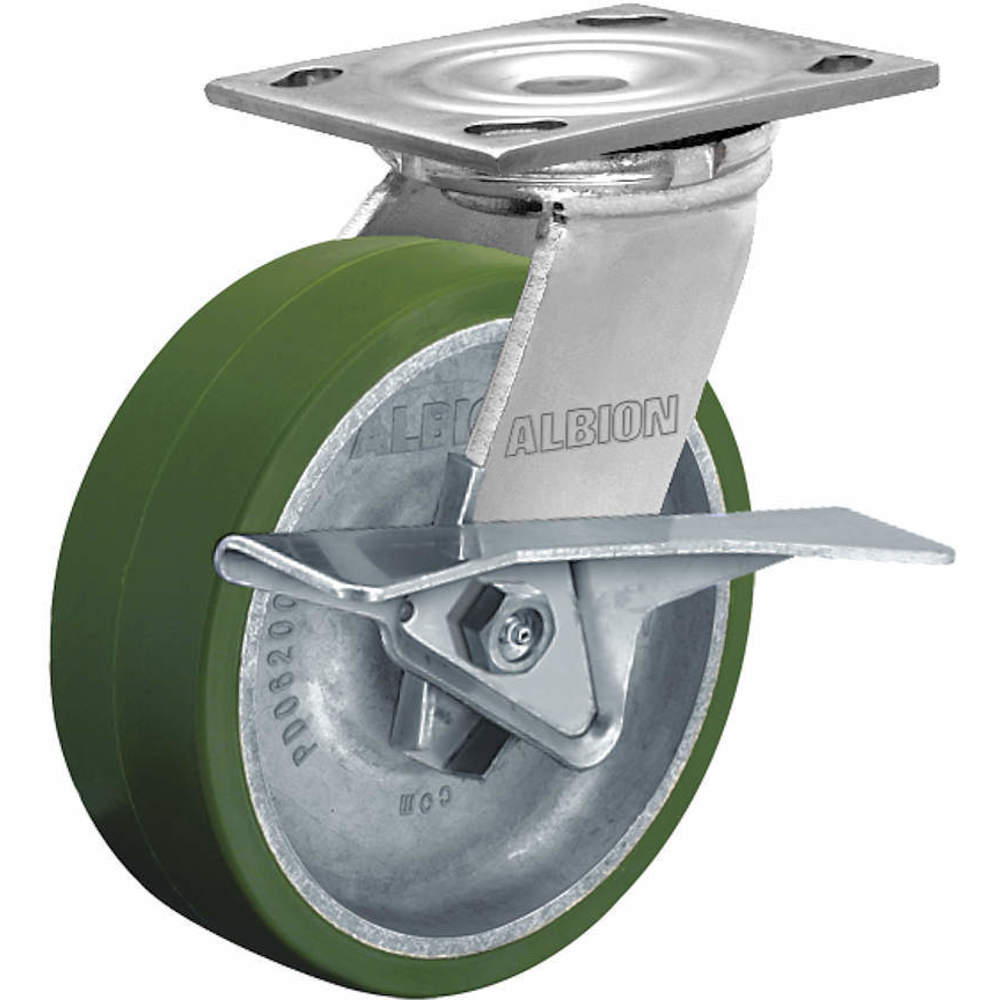

ALBION CASTERS 16PD06201SW104 Plate Caster, Swivel, No Brake, Polyurethane, 6 Inch Dia, 2 Inch Wd, Slot, Rectangle
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€168.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Application | Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks |
| Bearing Type | Double Ball |
| Brake Type | Pinch |
| Caster Brake Included | Yes |
| Caster Brake Type | Side Pedal Brake |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Swivel Caster With Brake |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Polyurethane |
| Caster Wheel Shape | Standard |
| Core Color | Silver |
| Core Material | Aluminum |
| Durometer | 60 Shore D |
| Extended Lead | No |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | B |
| Includes | Complete Caster With Brake |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 3" x 3" |
| Load Rating | 1250 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 7 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -40°F to +180°F |
| Outside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Overall Height | 7 1/4" |
| Plate Caster Core Material | Aluminum |
| Plate Caster Core Material | Aluminium |
| Plate Caster Lock | No Lock Included |
| Plate Caster Wheel Material | Polyurethane |
| Plate Size | 4" x 4 1/2" |
| Plate Thickness | 1/4" |
| Plate Type | B |
| Raceway Type | Double Ball |
| Standards | Icwm |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 4 3/4" |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Bearings | Roller |
| Wheel Color | Green |
| Wheel Core Material | Aluminum |
| Wheel Diameter | 6" |
| Wheel Width | 2" |
| Wheel/tread Color | Green |
| Wheel/tread Hardness | 92 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 2.73 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 8302200000 |
| Country of Origin | CN |
Product Details:
- Plate Caster Brake (Yes)
- Thread Guard (No)
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Caster Load Rating Range | Mounting Plate Bolt Hole Pattern | Wheel/tread Material | Mounting Height | Mounting Plate Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
01RN02041S003G | 15/16" x 2 1/8" | 15/16" x 2 1/8" | Plain | 0 lbs. to 299 lbs. | B | Rubber | 2 7/16" | 1 7/8" x 2 9/16" | €10.94 | |
 |
02RR04151S001GN | 1 3/4" x 3" | 2 3/8" x 3 3/8" | Delrin | 0 lbs. to 299 lbs. | A | Rubber | 5 3/16" | 3 1/8" x 4 1/8" | €38.70 | |
 |
DCIB06052S001G | 1 3/4" x 3" | 2 3/8" x 3 3/8" | Plain | 300 lbs. to 999 lbs. | A | Polyolefin | 7 19/64" | 3 1/8" x 4 1/8" | €27.47 | |
 |
02RR04028SFPQG | 3" x 3" | 2 5/8" x 3 5/8" | Precision Ball | 0 lbs. to 299 lbs. | B | Rubber | 5 1/8" | 3 3/4" x 4 3/8" | €30.53 | |
 |
02TM06101SFPQGN | 3" x 3" | 2 5/8" x 3 5/8" | Roller | 300 lbs. to 999 lbs. | B | Phenolic | 7 5/16" | 3 3/4" x 4 1/2" | €51.80 | |
 |
DCIB04028S001G | 3" x 3" | 2 5/8" x 3 5/8" | Precision Ball | 300 lbs. to 999 lbs. | B | Polypropylene | 5 1/8" | 3 3/4" x 4 3/8" | €26.77 | |
|
DCIB05028S001G | 3" x 3" | 2 5/8" x 3 5/8" | Precision Ball | 300 lbs. to 999 lbs. | B | Polypropylene | 6 3/16" | 3 3/4" x 4 3/8" | €28.83 |
