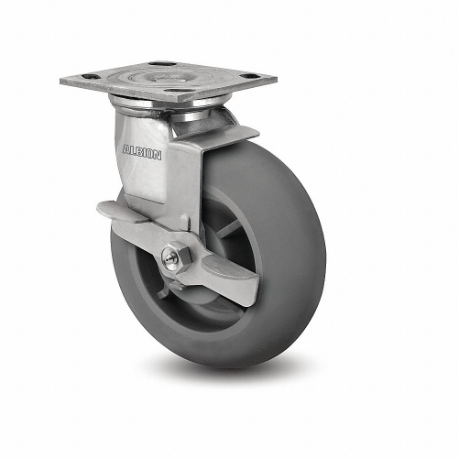

ALBION CASTERS 05XR08201SFBD Caster, 8 Inch Dia, 9 1/2 Inch Height, Swivel With Face Brake, Swivel, Rubber
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€230.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Caster |
| Application | Bakery Troughs, Clean Room, Dollies, Food Processing, Food Service, Hospital Waste Management, Laboratory Equipment, Marine, Pharmaceutical Equipment |
| Brake Type | FBD Face Brake |
| Caster Brake Material | Stainless Steel |
| Caster Brake Type | FBD Stainless Steel Face Brake |
| Caster Frame Material | Stainless Steel |
| Caster Material | Stainless Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Swivel |
| Core Color | Gray |
| Features | Stainless-Steel Casters Are Designed For Light-Duty Applications Where Frequent Wash-Downs Are Necessary |
| For Axle Dia. | 1/2" |
| Frame Construction | Formed |
| Frame Finish | Stainless Steel |
| Frame Material | Formed |
| Hub Length | 2 3/16" |
| Includes Spanner Bushing | Yes |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 5/8" x 3" |
| Load Rating | 600 lbs. |
| Load Rating Range | 300 lbs. to 999 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 9 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| Mounting Plate Thickness | 1/4" |
| Non-marking | Yes |
| Nsf Listed | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | 0°F to +180°F |
| Operating Temperature Range | Up to 180°F |
| Outside Bolt Hole Spacing | 3" x 3 5/8" |
| Overall Wheel Width | 2" |
| Swivel Construction | Kingpin |
| Swivel Lead | 2 3/8" |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 6 3/8" |
| Tread Material, Wheel Material | Rubber |
| Tread Shape | Crown |
| Wheel Bearing Material | Stainless Steel |
| Wheel Bearing Type | Roller |
| Wheel Core Material | Rubber |
| Wheel Core Type | Solid |
| Wheel Diameter | 8" |
| Wheel Material | Rubber |
| Wheel Type | Rubber |
| Wheel Width | 2" |
| Wheel/tread Color | Gray |
| Wheel/tread Hardness | 65-75 Shore A |
| Wheel/tread Hardness Rating | Soft |
| With Toe Plate | No |
Shipping Info:
| Ship weight (kg) | 3.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Mounting Height | Mounting Plate Size | Wheel Bearing Type | Wheel Width | Mounting Plate Bolt Hole Pattern | Caster Sub-type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FH0650924 | - | - | - | - | - | - | - | - | €560.98 | |
 |
05DT05201SFBD | 2.625" x 3" | 3" x 3.625" | - | - | - | - | - | - | - | RFQ
|
 |
05DT06201S | 2.625" x 3" | 3" x 3.625" | - | - | - | - | - | - | €231.28 | |
|
05DT08201SFBD | 2.625" x 3" | 3" x 3.625" | - | - | - | - | - | - | €305.27 | |
 |
05DT06201R | 2.625" x 3" | 3" x 3.625" | - | - | - | - | - | - | - | RFQ
|
|
05DT04201SFBD | 2.625" x 3" | 3" x 3.625" | - | - | - | - | - | - | €246.69 | |
|
05DT04201R | 2.625" x 3" | 3" x 3.625" | - | - | - | - | - | - | €150.69 |
