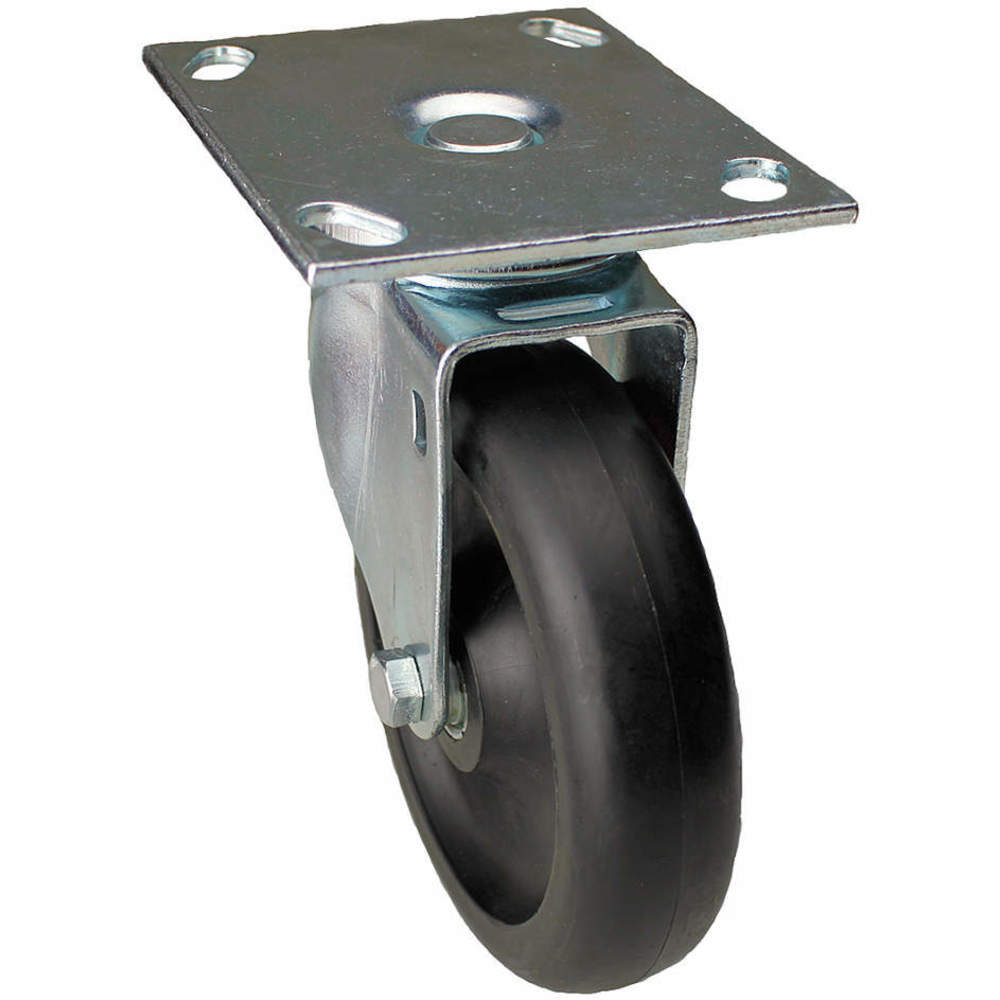

ALBION CASTERS 02PB06128S002GN Swivel Plate Caster 450 Lb 6 Inch Diameter
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€27.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Application | Food Service Racks And Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts |
| Bearing Type | Double Ball |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 300 lbs. to 999 lbs. |
| Caster Material | Polyolefin |
| Caster Product Group | Swivel Caster |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Polyolefin |
| Caster Wheel Shape | Standard |
| Core Color | Black |
| Core Material | Polyolefin |
| Durometer | 70 Shore D |
| Extended Lead | No |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | B |
| Includes | Dust Cover |
| Includes Thread Guards | Yes |
| Inside Bolt Hole Spacing | 3" x 3" |
| Load Rating | 300 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 5/16" |
| Mounting Height | 7 1/4" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 3 3/4" x 4 3/8" |
| Mounting Plate Size & Bolt Hole Pattern | 3 3/4" X 4 3/8" ( B ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -20°F to +180°F |
| Outside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Overall Height | 7 3/8" |
| Plate Size | 3 5/8" x 4 1/2" |
| Plate Thickness | 0.149" |
| Plate Type | B |
| Raceway Type | Double Ball |
| Replacement Wheel | IB0604106G |
| Standards | Icwm, Nsf Listed |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 0.0" |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Ball |
| Wheel Color | Black |
| Wheel Core Material | Plastic |
| Wheel Diameter | 6" |
| Wheel Material | Polyolefin |
| Wheel Width | 1 1/4" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 65 Shore D |
| Wheel/tread Hardness Rating | Hard |
| Wheel/tread Material | Polypropylene |
Shipping Info:
| Ship weight (kg) | 1.31 |
| Ship height (cm) | 19.56 |
| Ship length (cm) | 17.27 |
| Ship width (cm) | 9.65 |
| HS code | 8716900000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Caster Brake Type | Wheel/tread Material | Mounting Height | Mounting Plate Size | Mounting Plate Bolt Hole Pattern | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20PB03201SG | 2 3/8" x 3 3/8" | 2 3/8" x 3 3/8" | Roller | No Brake Included | Polypropylene | 4 1/16" | 3 1/8" x 4 1/8" | D | €21.77 | |
 |
04XA04051SPREVG | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Delrin | No Brake Included | Polyurethane | 5 1/8" | 2 1/2" x 3 5/8" | C | €63.11 | |
|
04XA05051SPREVG | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Delrin | No Brake Included | Polyurethane | 6 3/16" | 2 1/2" x 3 5/8" | C | €66.68 | |
 |
P2XR03028SG | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Precision Ball | No Brake Included | Thermoplastic Rubber | 4 1/4" | 2 1/2" x 3 5/8" | C | €34.06 | |
|
P2XR03X28SG | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | - | No Brake Included | Thermoplastic Rubber | 4 11/16" | 2 1/2" x 3 5/8" | C | €51.79 | |
|
P2XR05028SG | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Precision Ball | No Brake Included | Thermoplastic Rubber | 6 3/16" | 2 1/2" x 3 5/8" | C | €47.23 | |
 |
05XS04251SPREVG | 3" x 3" | 2 5/8" x 3 5/8" | Delrin | No Brake Included | Thermoplastic Rubber | 5 5/8" | 4" x 4 1/2" | B | €244.89 |
