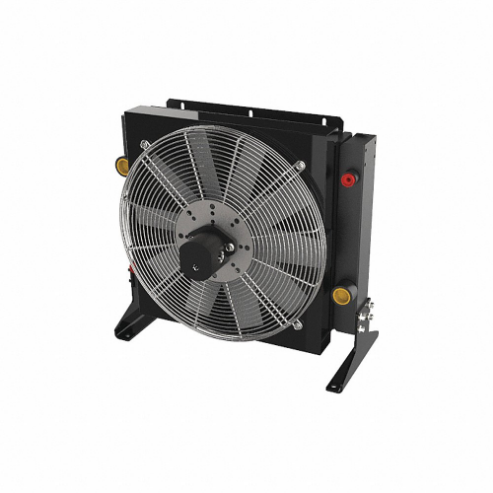

AKG HR75-0050 Oil Cooler With Hydraulic Motor 8-80 Gpm
Get it by Tuesday, Aug 25
13.00% off
€2,091.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Forced Air Oil Cooler |
| Bypass Valve Included | No |
| Compatible Hydraulic Fluids | Up To ISO 320 |
| Depth | 12.3" |
| Fan Blade Material | Polypropylene |
| Fan Guard Material | Steel |
| Finish | Paint |
| Flow | 8-80 GPM |
| For Fluid Viscosity | Up To ISO VG 320 |
| Heat Exchanger Material | Aluminium |
| Heat Exchanger Material | Aluminum |
| Height | 24.03" |
| Hp Heat Removed | 75 hp |
| Included | Mounting Feet |
| Inlet Port Thread Gender | Female |
| Inlet Port Thread Size | #20 |
| Max. Flow Rate | 80 GPM |
| Max. Operating Temp. | 250°F |
| Max. Pressure | 377 psi |
| Motor Flow Rate | 4.2 GPM |
| Motor Type | Gear |
| No. Of Fans | 1 |
| Oil Cooler Finish | Powder Coated |
| Oil Cooler Material | Aluminum |
| Outlet Port Thread Gender | Female |
| Outlet Port Thread Size | SAE #20 |
| Overall Depth | 12.3" |
| Overall Height | 24.03" |
| Overall Width | 26.38" |
| Type | Hydraulic Motor |
| Width | 26.38" |
Shipping Info:
| Ship weight (kg) | 71.55 |
| Ship height (cm) | 61.04 |
| Ship length (cm) | 31.24 |
| Ship width (cm) | 67.01 |
| HS code | 8419505000 |
| Country of Origin | US |
Product Details:
- Coolant Flow Range (gpm) (8 to 80)
- Coolant HP Heat Removed (75)
- Coolant Max. Pressure (psi) (377)
- Coolant Port Size (SAE #20)
- Fan Blade Material (Polypropylene)
- Fan Guard Material (Steel)
- Hydraulic Motor GPM (4.2)
- Max. Oil Pressure (3500 PSI)
- Min. Oil Pressure (PSI) (500)
- Oil Port Size (#12 SAE)
- Sub-Brand: COOL-LINE
Product Variants
| Product | Model | Finish | Overall Depth | Overall Height | Hp Heat Removed | Max. Pressure | Inlet Port Thread Size | Overall Width | Flow | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AL5-1 | Paint | 12.56" | 13.74" | 5 hp | 377 psi | #12 | 13.78" | 2-30 GPM | €1,371.63 | |
|
A8-1 | Paint | 13.27" | 14 1/4" | 8 hp | 377 psi | #12 | 13.78" | 2-30 GPM | €1,475.55 | |
 |
A10-1 | Paint | 14.5" | 15.91" | 10 hp | 377 psi | #16 | 15 3/4" | 4-50 GPM | €1,518.79 | |
 |
A15-1 | Paint | 16" | 15.91" | 15 hp | 377 psi | #16 | 16.54" | 8-80 GPM | €1,617.63 | |
 |
A20-1 | Paint | 15.5" | 19 3/5" | 20 hp | 377 psi | #20 | 21.65" | 4-50 GPM | €1,685.01 | |
 |
A30-1 | Paint | 16.75" | 24.03" | 30 hp | 377 psi | #20 | 25.59" | 4-50 GPM | €2,386.61 | |
|
A40-1 | Paint | 18" | 24.03" | 40 hp | 377 psi | #20 | 26.38" | 8-80 GPM | €2,770.82 |
