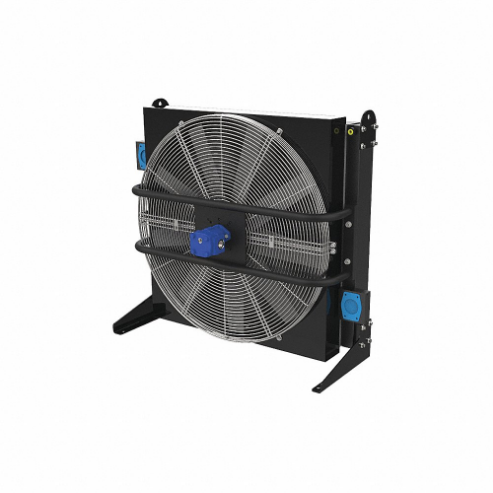

AKG HR400-0195 Oil Cooler With Hydraulic Motor 20-350 Gpm
Get it by Tuesday, Dec 23
10.00% off
€13,028.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Forced Air Oil Cooler |
| Bypass Valve Included | No |
| Compatible Hydraulic Fluids | Up To ISO 320 |
| Depth | 20.79" |
| Fan Blade Material | Polypropylene |
| Fan Guard Material | Steel |
| Finish | Paint |
| Flow Range | 20-350 GPM |
| For Fluid Viscosity | Up To ISO VG 320 |
| Heat Exchanger Material | Aluminium |
| Heat Exchanger Material | Aluminum |
| Height | 46 24/25" |
| Hp Heat Removed | 400 hp |
| Inlet Port Thread Gender | Female |
| Inlet Port Thread Size | 3" |
| Max. Flow | 350 GPM |
| Max. Operating Temp. | 250°F |
| Max. Pressure | 377 psi |
| Motor Type | Gear |
| No. Of Fans | 1 |
| Oil Cooler Finish | Powder Coated |
| Oil Cooler Material | Aluminum |
| Outlet Port Thread Gender | Female |
| Outlet Port Thread Size | 3" SAE 4 Bolt Flange |
| Overall Depth | 20.79" |
| Overall Height | 46.96" |
| Overall Width | 49.49" |
| Type | Hydraulic Motor |
| Width | 49.49" |
Shipping Info:
| Ship weight (kg) | 265.5 |
| Ship height (cm) | 119.28 |
| Ship length (cm) | 52.81 |
| Ship width (cm) | 125.7 |
| HS code | 8419505000 |
| Country of Origin | US |
Product Details:
- Coolant Flow Range (gpm) (20 to 350)
- Coolant HP Heat Removed (400)
- Coolant Max. Pressure (psi) (250)
- Coolant Port Size (3" SAE 4 Bolt Flange)
- Fan Blade Material (Polypropylene)
- Fan Guard Material (Steel)
- Hydraulic Motor GPM (16.4)
- Max. Oil Pressure (3500 PSI)
- Min. Oil Pressure (PSI) (1170)
- Oil Port Size (#16 SAE)
- Sub-Brand: COOL-LINE
Product Variants
| Product | Model | Hp Heat Removed | Max. Pressure | Inlet Port Thread Size | Max. Flow | Motor Type | Finish | Overall Depth | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AL5-1 | 5 hp | 377 psi | #12 | 30 GPM | - | Paint | 12.56" | 13.74" | €1,686.23 | |
|
A8-1 | 8 hp | 377 psi | #12 | 30 GPM | - | Paint | 13.27" | 14 1/4" | €1,831.95 | |
 |
A10-1 | 10 hp | 377 psi | #16 | 50 GPM | - | Paint | 14.5" | 15.91" | €1,804.04 | |
 |
A15-1 | 15 hp | 377 psi | #16 | 80 GPM | - | Paint | 16" | 15.91" | €1,860.05 | |
 |
A20-1 | 20 hp | 377 psi | #20 | 50 GPM | - | Paint | 15.5" | 19 3/5" | €1,852.64 | |
 |
A30-1 | 30 hp | 377 psi | #20 | 50 GPM | - | Paint | 16.75" | 24.03" | €2,614.14 | |
|
A40-1 | 40 hp | 377 psi | #20 | 80 GPM | - | Paint | 18" | 24.03" | €3,191.71 |
