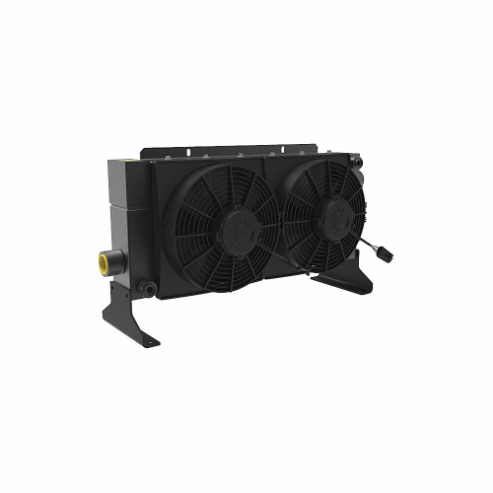

AKG D45-12-BP45 Forced Air Oil Cooler, DC, 45 hp Heat Removed, 80 GPM Max. Flow, 377 PSI Max. Pressure
Get it by Tuesday, Jul 7
€1,968.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Forced Air Oil Cooler |
| Bypass Pressure | 45 psi |
| Bypass Valve Included | Yes |
| Compatible Hydraulic Fluids | Up To ISO 320 |
| Construction | Aluminum |
| Fan Blade Material | Plastic |
| Fan Guard Material | Plastic |
| Finish | Powder Coating |
| Flow | 8-80 GPM |
| Hp | 0.19 hp |
| Hp Heat Removed | 45 hp |
| Included | Bypass Valve |
| Inlet Port Thread Gender | Female |
| Inlet Port Thread Size | #20 |
| Inlet Port Thread Type | SAE |
| Material | Aluminum |
| Max. Flow Rate | 80 GPM |
| Max. Oil Temp. | 250°F |
| Max. Operating Temp. | 250°F |
| Max. Pressure | 377 psi |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Hp | 19/100 hp |
| Motor Type-oil Coolers | DC |
| No. Of Fans | 2 |
| Oil Cooler Finish | Powder Coated |
| Oil Cooler Material | Aluminum |
| Outlet Connection Gender | Female |
| Outlet Port Thread Gender | Female |
| Outlet Port Thread Size | SAE #20 |
| Outlet Port Thread Size(sae) | #20 |
| Overall Depth | 8.45" |
| Overall Height | 16 14/25" |
| Overall Width | 28.35" |
| Shroud Material | Plastic |
| Voltage | 12V DC |
| With Motor/without Motor | With Motor |
Shipping Info:
| Ship weight (kg) | 44.1 |
| Ship height (cm) | 42.06 |
| Ship length (cm) | 21.46 |
| Ship width (cm) | 72.01 |
| Country of Origin | US |
Product Variants
| Product | Model | Hp Heat Removed | Max. Pressure | Inlet Port Thread Size | Motor Type | Finish | Overall Depth | Overall Height | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AL5-1 | 5 hp | 377 psi | #12 | - | Paint | 12.56" | 13.74" | 13.78" | €1,371.63 | |
|
A8-1 | 8 hp | 377 psi | #12 | - | Paint | 13.27" | 14 1/4" | 13.78" | €1,475.55 | |
 |
A10-1 | 10 hp | 377 psi | #16 | - | Paint | 14.5" | 15.91" | 15 3/4" | €1,518.79 | |
 |
A15-1 | 15 hp | 377 psi | #16 | - | Paint | 16" | 15.91" | 16.54" | €1,617.63 | |
 |
A20-1 | 20 hp | 377 psi | #20 | - | Paint | 15.5" | 19 3/5" | 21.65" | €1,685.01 | |
 |
A30-1 | 30 hp | 377 psi | #20 | - | Paint | 16.75" | 24.03" | 25.59" | €2,386.61 | |
|
A40-1 | 40 hp | 377 psi | #20 | - | Paint | 18" | 24.03" | 26.38" | €2,770.82 |
