AKG D36-12-BP60 Forced Air Oil Cooler, DC, 36 hp Heat Removed, 80 GPM Max. Flow, 377 PSI Max. Pressure
Get it by Tuesday, Sep 1
13.00% off
€1,380.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Forced Air Oil Cooler |
| Bypass Pressure | 60 psi |
| Bypass Valve Included | Yes |
| Compatible Hydraulic Fluids | Up To ISO 320 |
| Construction | Aluminum |
| Fan Blade Material | Plastic |
| Fan Guard Material | Plastic |
| Finish | Powder Coating |
| Flow | 8-80 GPM |
| Full Load Amps | 29A |
| Hp | 0.48 hp |
| Hp Heat Removed | 36 hp |
| Included | Bypass Valve |
| Inlet Port Thread Gender | Female |
| Inlet Port Thread Size | #20 |
| Inlet Port Thread Type | SAE |
| Material | Aluminum |
| Max. Flow Rate | 80 GPM |
| Max. Oil Temp. | 250°F |
| Max. Operating Temp. | 250°F |
| Max. Pressure | 377 psi |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Size | IP68 |
| Motor Hp | 12/25 hp |
| Motor Type | DC |
| No. Of Fans | 1 |
| Oil Cooler Finish | Powder Coated |
| Oil Cooler Material | Aluminum |
| Outlet Connection Gender | Female |
| Outlet Port Thread Gender | Female |
| Outlet Port Thread Size | SAE #20 |
| Outlet Port Thread Size(sae) | #20 |
| Overall Depth | 9 24/25" |
| Overall Height | 18.03" |
| Overall Width | 20.47" |
| Shroud Material | Plastic |
| Voltage | 12V DC |
| With Motor/without Motor | With Motor |
Shipping Info:
| Ship weight (kg) | 21.35 |
| Ship height (cm) | 45.8 |
| Ship length (cm) | 25.3 |
| Ship width (cm) | 51.99 |
| Country of Origin | US |
Product Variants
| Product | Model | Finish | Overall Depth | Overall Height | Hp Heat Removed | Max. Pressure | Inlet Port Thread Size | Overall Width | Flow | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AL5-1 | Paint | 12.56" | 13.74" | 5 hp | 377 psi | #12 | 13.78" | 2-30 GPM | €1,348.98 | |
|
A8-1 | Paint | 13.27" | 14 1/4" | 8 hp | 377 psi | #12 | 13.78" | 2-30 GPM | €1,465.56 | |
 |

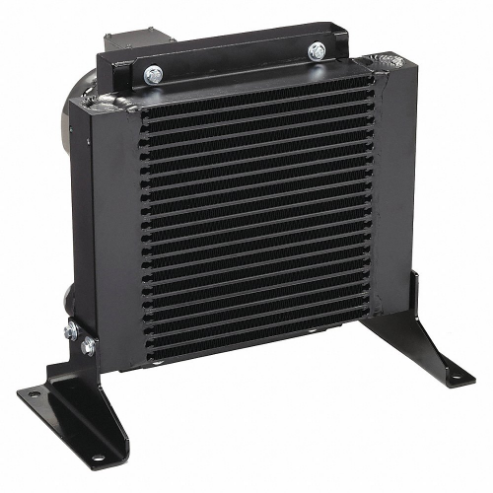

A10-1 | Paint | 14.5" | 15.91" | 10 hp | 377 psi | #16 | 15 3/4" | 4-50 GPM | €1,443.23 | |
 |
A15-1 | Paint | 16" | 15.91" | 15 hp | 377 psi | #16 | 16.54" | 8-80 GPM | €1,488.04 | |
 |

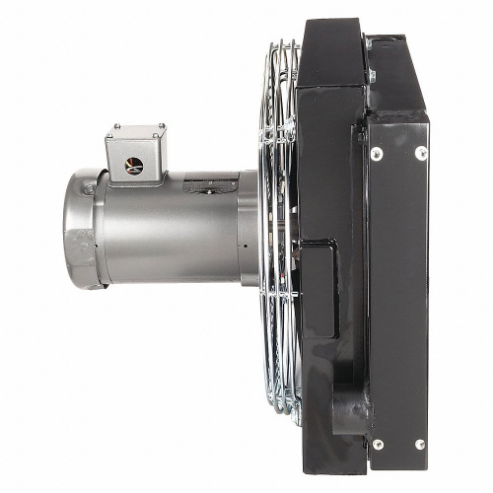

A20-1 | Paint | 15.5" | 19 3/5" | 20 hp | 377 psi | #20 | 21.65" | 4-50 GPM | €1,482.11 | |
 |

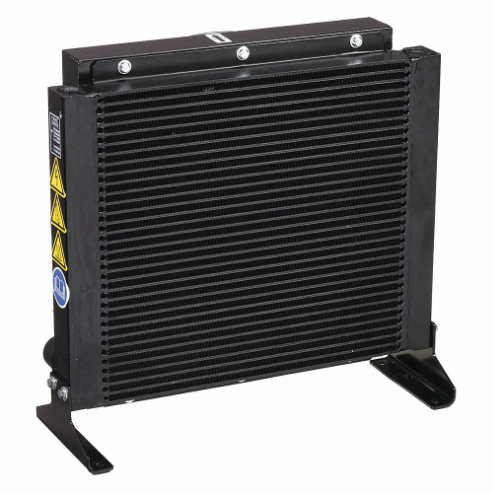

A30-1 | Paint | 16.75" | 24.03" | 30 hp | 377 psi | #20 | 25.59" | 4-50 GPM | €2,091.32 | |
|
A40-1 | Paint | 18" | 24.03" | 40 hp | 377 psi | #20 | 26.38" | 8-80 GPM | €2,553.37 |
