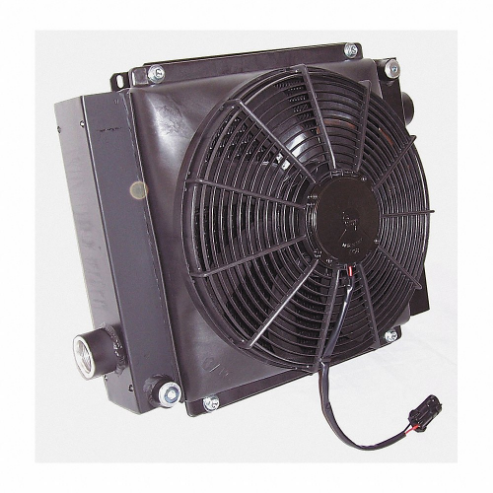

AKG D36-12 Oil Cooler 12 Vdc 8-80 Gpm 0.48 Hp
Get it by Friday, Dec 19
10.00% off
€1,475.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Forced Air Oil Cooler |
| Bypass Valve Included | No |
| Compatible Hydraulic Fluids | Up To ISO 320 |
| Construction | Aluminum |
| Depth | 9 24/25" |
| Fan Blade Material | Plastic |
| Fan Guard Material | Plastic |
| Finish | Paint |
| Flow Range | 8-80 GPM |
| Flow Ranges (gpm) | 8-80 GPM |
| Flow Ranges (gpm) | 8 to 80 |
| Full Load Amps | 29A |
| Height | 18.03" |
| Hp | 0.48 hp |
| Hp Heat Removed | 36 |
| Hp Heat Removed | 36 hp |
| Includes | Universal Mounting Bracket |
| Inlet Port Thread Gender | Female |
| Inlet Port Thread Size | #20 |
| Max. Flow | 80 GPM |
| Max. Oil Temp. | 250°F |
| Max. Operating Temp. | 250°F |
| Max. Pressure | 377 psi |
| Motor Amps | 29 |
| Motor Amps | 29A |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| Motor Frame Size | IP68 |
| Motor Hp | 0.48 hp |
| Motor Type - Oil Coolers | DC |
| Nema/iec Frame | IP68 |
| No. Of Fans | 1 |
| Oil Cooler Finish | Powder Coated |
| Oil Cooler Material | Aluminum |
| Outlet Port Thread Gender | Female |
| Outlet Port Thread Size | SAE #20 |
| Overall Depth | 9.96" |
| Overall Height | 18.03" |
| Overall Width | 20.47" |
| Port Size | #20 |
| Port Type | SAE |
| Shroud Material | Plastic |
| Type | DC Motor |
| Voltage | 12V DC |
| Width | 20.47" |
| With Motor/without Motor | With Motor |
Shipping Info:
| Ship weight (kg) | 22 |
| Ship height (cm) | 45.8 |
| Ship length (cm) | 25.3 |
| Ship width (cm) | 51.99 |
| HS code | 8419505000 |
| Country of Origin | US |
Product Details:
- Sub-Brand: COOL-LINE
Product Variants
| Product | Model | Hp Heat Removed | Max. Pressure | Inlet Port Thread Size | Max. Flow | Motor Type | Finish | Overall Depth | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AL5-1 | 5 hp | 377 psi | #12 | 30 GPM | - | Paint | 12.56" | 13.74" | €1,686.23 | |
|
A8-1 | 8 hp | 377 psi | #12 | 30 GPM | - | Paint | 13.27" | 14 1/4" | €1,831.95 | |
 |
A10-1 | 10 hp | 377 psi | #16 | 50 GPM | - | Paint | 14.5" | 15.91" | €1,804.04 | |
 |
A15-1 | 15 hp | 377 psi | #16 | 80 GPM | - | Paint | 16" | 15.91" | €1,860.05 | |
 |
A20-1 | 20 hp | 377 psi | #20 | 50 GPM | - | Paint | 15.5" | 19 3/5" | €1,852.64 | |
 |
A30-1 | 30 hp | 377 psi | #20 | 50 GPM | - | Paint | 16.75" | 24.03" | €2,614.14 | |
|
A40-1 | 40 hp | 377 psi | #20 | 80 GPM | - | Paint | 18" | 24.03" | €3,191.71 |
