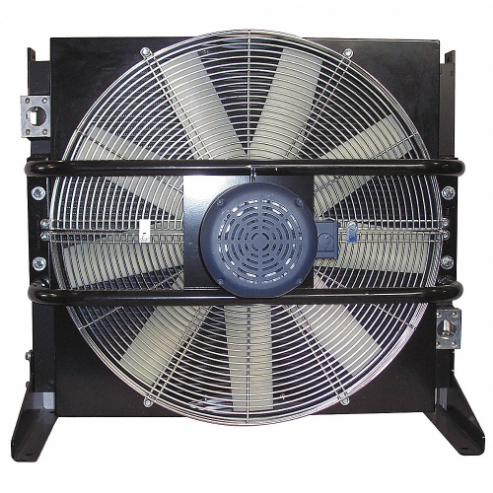

AKG A215-3 Oil Cooler Ac 20-350 Gpm 230/460 V 10 Hp
Get it by Friday, Dec 19
10.00% off
€10,873.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Forced Air Oil Cooler |
| Bypass Valve Included | No |
| Compatible Hydraulic Fluids | Up To ISO 320 |
| Construction | Aluminum |
| Depth | 30 4/5" |
| Fan Blade Material | PPG |
| Fan Guard Material | Steel |
| Finish | Paint |
| Flow Range | 20-350 GPM |
| Flow Ranges (gpm) | 20-350 GPM |
| Flow Ranges (gpm) | 20 to 350 |
| Full Load Amps | 26/13A |
| Height | 46 24/25" |
| Hp | 10 hp |
| Hp Heat Removed | 215 |
| Hp Heat Removed | 215 hp |
| Includes | Mounting Feet |
| Includes Mounting Bracket | Yes |
| Includes Mounting Hardware | Yes |
| Inlet Port Thread Gender | Female |
| Inlet Port Thread Size | 3" |
| Max. Flow | 350 GPM |
| Max. Oil Temp. | 250°F |
| Max. Operating Temp. | 250°F |
| Max. Pressure | 250 psi |
| Motor Amps | 26/13 |
| Motor Amps | 13/26A |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Size | 215TC |
| Motor Hp | 10 hp |
| Motor Type - Oil Coolers | AC |
| Mounting Bracket Material | Steel |
| Nema/iec Frame | 215TC |
| No. Of Fans | 1 |
| Number Of Phases | 3 |
| Oil Cooler Finish | Powder Coated |
| Oil Cooler Material | Aluminum |
| Outlet Port Thread Gender | Female |
| Outlet Port Thread Size | 3" SAE 4 Bolt Flange |
| Overall Depth | 30.8" |
| Overall Height | 46.96" |
| Overall Width | 49.49" |
| Port Size | 3" |
| Port Type | SAE |
| Shroud Material | Steel |
| Type | AC Motor |
| Voltage | 230/460V AC |
| Width | 49.49" |
| With Motor/without Motor | With Motor |
Shipping Info:
| Ship weight (kg) | 288 |
| Ship height (cm) | 119.28 |
| Ship length (cm) | 78.23 |
| Ship width (cm) | 125.7 |
| HS code | 8419501000 |
| Country of Origin | US |
Product Details:
- Sub-Brand: COOL-LINE
Product Variants
| Product | Model | Hp Heat Removed | Max. Pressure | Inlet Port Thread Size | Max. Flow | Motor Type | Finish | Overall Depth | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AL5-1 | 5 hp | 377 psi | #12 | 30 GPM | - | Paint | 12.56" | 13.74" | €1,686.23 | |
|
A8-1 | 8 hp | 377 psi | #12 | 30 GPM | - | Paint | 13.27" | 14 1/4" | €1,831.95 | |
 |
A10-1 | 10 hp | 377 psi | #16 | 50 GPM | - | Paint | 14.5" | 15.91" | €1,804.04 | |
 |
A15-1 | 15 hp | 377 psi | #16 | 80 GPM | - | Paint | 16" | 15.91" | €1,860.05 | |
 |
A20-1 | 20 hp | 377 psi | #20 | 50 GPM | - | Paint | 15.5" | 19 3/5" | €1,852.64 | |
 |
A30-1 | 30 hp | 377 psi | #20 | 50 GPM | - | Paint | 16.75" | 24.03" | €2,614.14 | |
|
A40-1 | 40 hp | 377 psi | #20 | 80 GPM | - | Paint | 18" | 24.03" | €3,191.71 |
