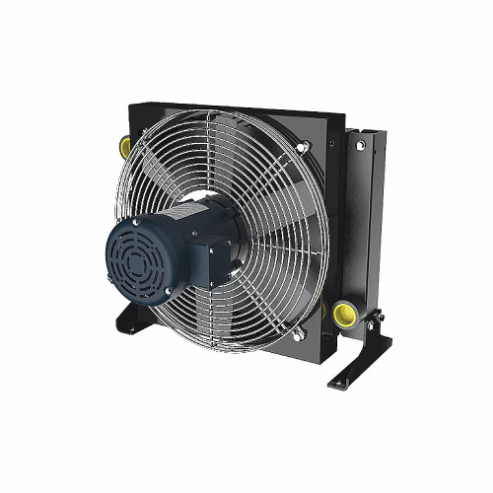

AKG A20-3 Forced Air Oil Cooler, AC, 25 hp Heat Removed, 115 GPM Max. Flow, 377 PSI Max. Pressure
Get it by Thursday, Dec 18
10.00% off
€1,848.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Forced Air Oil Cooler |
| Bypass Valve Included | No |
| Compatible Hydraulic Fluids | Up To ISO 320 |
| Construction | Aluminum |
| Fan Blade Material | PPG |
| Fan Guard Material | Steel |
| Finish | Powder Coat |
| Flow Range | 14-120 GPM |
| For Fluid Viscosity | 50 cST |
| Full Load Amps | 2A |
| Hp | 1/2 hp |
| Hp Heat Removed | 25 hp |
| Includes | Mounting Bracket |
| Includes Mounting Bracket | Yes |
| Includes Mounting Hardware | No |
| Inlet Port Thread Gender | Female |
| Inlet Port Thread Size | #20 |
| Inlet Port Thread Type | SAE |
| Material | Aluminum |
| Max. Flow | 60 GPM |
| Max. Oil Temp. | 250°F |
| Max. Operating Temp. | 250°F |
| Max. Pressure | 377 psi |
| Motor Connection Type | Flying Leads |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Hp | 1/2 hp |
| Motor Type | AC |
| Mounting Bracket Material | Steel |
| Mounting Hardware Included | No |
| Mounting Style | Foot |
| Mounting Style - Oil Coolers | Foot Mount |
| Number Of Fans | 1 |
| Number Of Phases | 3 |
| Oil Cooler Finish | Powder Coated |
| Oil Cooler Material | Aluminum |
| Outlet Connection Gender | Female |
| Outlet Port Thread Gender | Female |
| Outlet Port Thread Size | SAE #20 |
| Outlet Port Thread Size(sae) | #20 |
| Overall Depth | 15 1/2" |
| Overall Height | 19 3/5" |
| Overall Width | 15 1/2" |
| Shroud Material | Steel |
| Voltage | 230/460V AC |
| With Motor/without Motor | With Motor |
Shipping Info:
| Ship weight (kg) | 30.15 |
| Ship height (cm) | 49.78 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 39.37 |
| Country of Origin | US |
Product Variants
| Product | Model | Hp Heat Removed | Max. Pressure | Inlet Port Thread Size | Max. Flow | Motor Type | Finish | Overall Depth | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AL5-1 | 5 hp | 377 psi | #12 | 30 GPM | - | Paint | 12.56" | 13.74" | €1,686.23 | |
|
A8-1 | 8 hp | 377 psi | #12 | 30 GPM | - | Paint | 13.27" | 14 1/4" | €1,831.95 | |
 |
A10-1 | 10 hp | 377 psi | #16 | 50 GPM | - | Paint | 14.5" | 15.91" | €1,804.04 | |
 |
A15-1 | 15 hp | 377 psi | #16 | 80 GPM | - | Paint | 16" | 15.91" | €1,860.05 | |
 |
A20-1 | 20 hp | 377 psi | #20 | 50 GPM | - | Paint | 15.5" | 19 3/5" | €1,852.64 | |
 |
A30-1 | 30 hp | 377 psi | #20 | 50 GPM | - | Paint | 16.75" | 24.03" | €2,614.14 | |
|
A40-1 | 40 hp | 377 psi | #20 | 80 GPM | - | Paint | 18" | 24.03" | €3,191.71 |
