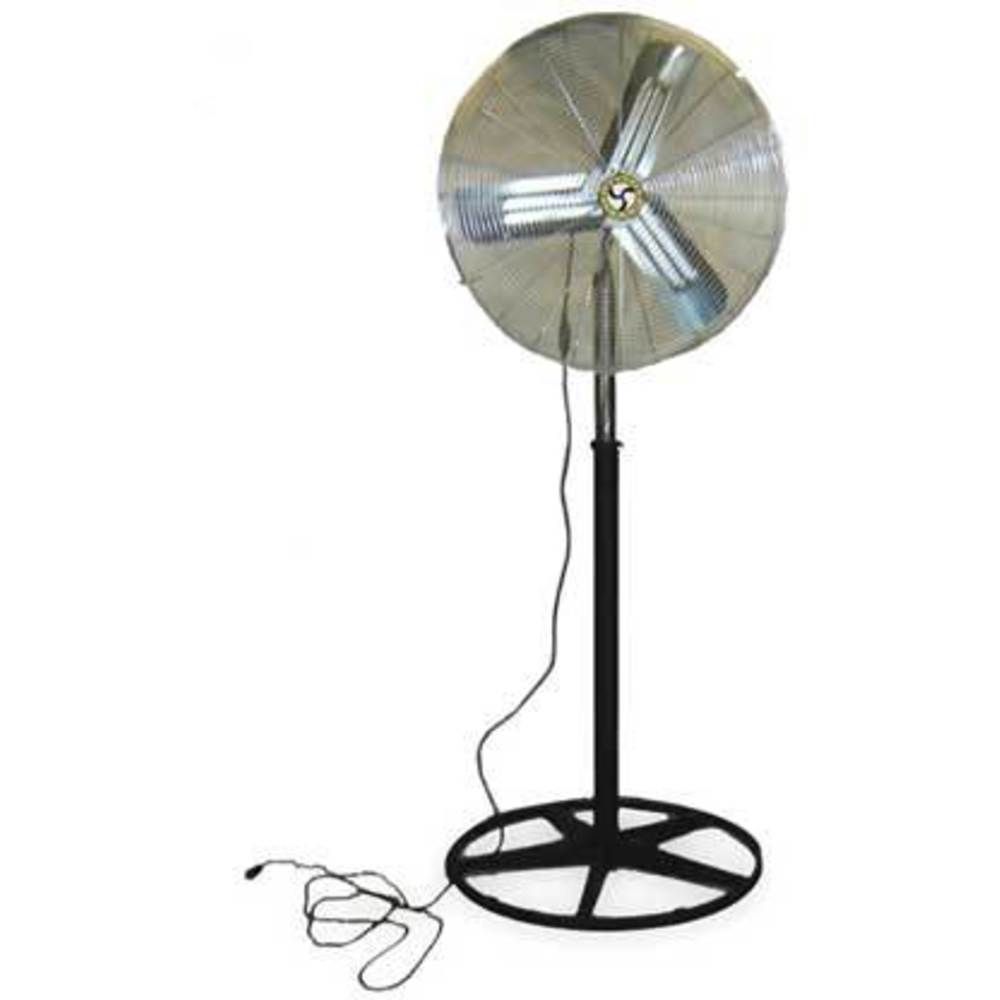

AIRMASTER FAN C-20PN3 Light Duty Industrial Fan, 20 Inch Blade Diameter, 2 Speed, 2,035/2,520 cfm, 115 VAC
Get it by Friday, Jul 17
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Circulator |
| Airflow | 2035/2520 CFM |
| Assembled | No |
| Bearing Type | Ball |
| Blade Dia. | 20" |
| Blade Material | Galvanized Steel |
| Cfm High | 2520 CFM |
| Cfm Low | 2035 CFM |
| Cfm Low | 2035 |
| Cord Length | 10 ft. |
| Drive Type | Direct Drive |
| Environmental Applications | Commercial |
| Fan Accessory Style | Standard |
| Fan Mounting Location | Pedestal |
| Fan Speed | 1615 RPM |
| Fan Style | Standard |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Guard Material | Steel |
| Height | 23" |
| High Cfm | 2520 CFM |
| Housing Material | Steel |
| Included | Column, Mounting Hardware, Pedestal |
| Max. Ambient Temp. | 105°F |
| Max. Depth | 11" |
| Mobile/stationary | Stationary |
| Motor Enclosure Design | Open Dripproof |
| Motor Hp | 1/15 hp |
| Motor Insulation | Class B |
| Motor Speed | 1615 |
| Motor Type | Permanent Split Capacitor |
| Mounting Location | Pedestal |
| Mounting Style | Pedestal |
| Nema Plug Configuration | 5-15P |
| No. Of Blades | 3 |
| No. Of Conductors | 3 |
| No. Of Speed | 2 |
| Operating Amps | 2.6A |
| Oscillating | No |
| Oscillating/non-oscillating | Non Oscillating |
| Oscillation | Non Oscillating |
| Outside Dia. | 23" |
| Phase | 1 |
| Product Type | Light-Duty Industrial Fan |
| Requires | Assembly |
| Shaft Dia. | 1/2" |
| Thermal Protection | Auto |
| Voltage | 115V AC |
| Wheeled Base | Stationary |
| Width | 23" |
| Wire Guard Finish | Nickel Chrome |
Shipping Info:
| Ship weight (kg) | 20.87 |
| Ship height (cm) | 58.42 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 58.42 |
| HS code | 8414513000 |
| Country of Origin | US |
Product Details:
- Mobile/Stationary (Stationary)
