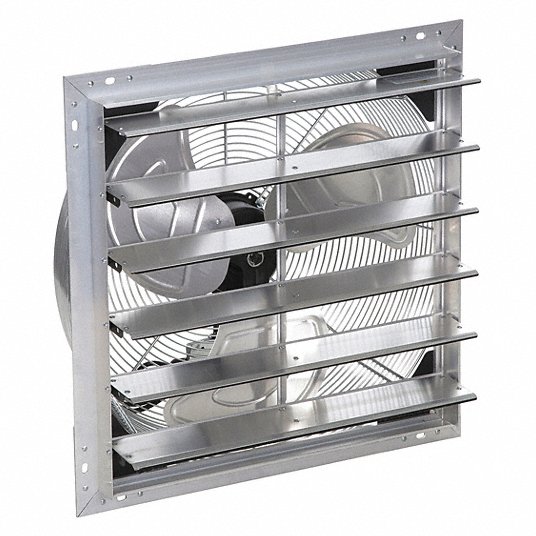

AIRMASTER FAN 23014 LPSF24 Shutter Mount Exhaust Fan, 24 Inch Blade, 2 Speed, 1/15 HP, Open Dripproof, 3,214 cfm, 115 VAC, 1 Phase
Get it by Monday, Aug 17
13.00% off
€473.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Shutter Mount Exhaust Fan |
| Assembled | Assembled |
| Bearing Type | Ball |
| Blade Dia. | 24" |
| Blade Material | Aluminum |
| Cfm @ 0.000 In Sp | 3214 CFM |
| Cfm @ 0.125 In Sp | 2015 CFM |
| Control Type | Pull Chain |
| Drive Package Included | No |
| Drive Type | Direct Drive |
| Duct Dia. | 24 3/8" |
| Duct Shape | Round |
| Electrical Connection | Plug In |
| Enclosure | Totally |
| Exhaust Airflow @ 0.000 In Sp | 3214 CFM |
| Exhaust Airflow @ 0.100 In Sp | 2708 CFM |
| Exhaust Airflow @ 0.125 In Sp | 2015 CFM |
| Exhaust/supply Fan Item | Exhaust Fan |
| Exhaust/supply Fan Motor Hp | 1/15 hp |
| Fan Style | Shutter-Mounted |
| Fits Square Opening | 24 1/2" x 24 1/2" |
| For Cut Out Length | 24 1/2" |
| For Cut-out Height | 24 1/2" |
| For Cut-out Width | 24 1/2" |
| For Max. Wall Thickness | 5 1/2" |
| For Min. Wall Thickness | 3" |
| Frame Material | Aluminum |
| Frequency | 60 Hz |
| Full Load Amps | 2.2A |
| Guard Finish | Chrome |
| Guard Material | Steel |
| Guard Type | Exhaust |
| Height | 27.13" |
| Housing Finish | Galvanized |
| Housing Material | Aluminum, Steel |
| Hp | 1/15 hp |
| Included Dehumidistat | No |
| Included Motor | Yes |
| Max. Airflow | 3214 CFM |
| Max. Ambient Operating Temp. | 104°F |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 12 5/8" |
| Max. Exhaust Airflow @ 0.000 In Sp | 3214 CFM |
| Max. Noise Level | 11.7 sones |
| Motor Enclosure Design | Open Dripproof |
| Motor Hp | 1/15 hp |
| Motor Insulation | Class B |
| Motor Speed | 1050 RPM |
| Motor Type | PSC |
| Nameplate Voltage | 115V AC |
| No. Of Blades | 3 |
| No. Of Fans | 1 |
| No. Of Speed | 1 |
| Noise Level @ 0.000 In Sp @ 5 Ft | 11.7 sones |
| Noise Level @ 0.100 In Sp @ 5 Ft. | 11.7 sones |
| Overall Depth | 12 5/8" |
| Overall Height | 27 1/8" |
| Overall Width | 27 1/8" |
| Phase | 1 |
| Power Cord Length | 9 ft. |
| Profile Height Family | Medium |
| Sones @ 0.000 In Sp @ 5 Ft. | 11.7 |
| Square Opening Required | 24" |
| Supply Airflow @ 0.000 In Sp | 2708 CFM |
| Temp. Thermostat Opens | 104°F |
| Thermal Protection | Yes |
| Ventilation Type | Exhaust |
| Voltage | 115V |
| Watts | 260 W |
| Width | 27 3/25" |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 68.9 |
| Ship length (cm) | 32.07 |
| Ship width (cm) | 68.9 |
| HS code | 8414513000 |
| Country of Origin | US |
Product Variants
| Model | Hp | Blade Dia. | Motor Hp | Max. Exhaust Airflow @ 0.000 In Sp | Exhaust Airflow @ 0.125 In Sp | Full Load Amps | Overall Height | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 23011 | 1/30 hp | 10" | 1/30 hp | 611 CFM | 318 CFM | 0.6A | 13 1/8" | 13 1/8" | €213.72 | |
| 23015 | 1/30 hp | 12" | 1/30 hp | 815 CFM | 490 CFM | 1.2A | 15 1/8" | 15 1/8" | €292.36 | |
| 23012 | 1/15 hp | 16" | 1/15 hp | 1502 CFM | 1151 CFM | 1.32A | 19 1/8" | 19 1/8" | €333.02 | |
| 23013 | 1/30 hp | 18" | 1/30 hp | 1877 CFM | 752 CFM | 1.36A | 21 1/8" | 21 1/8" | €365.08 | |
| 23016 | 1/20 hp | 20" | 1/20 hp | 2235 CFM | 920 CFM | 2.35A | 23 1/8" | 23 1/8" | €458.15 |
