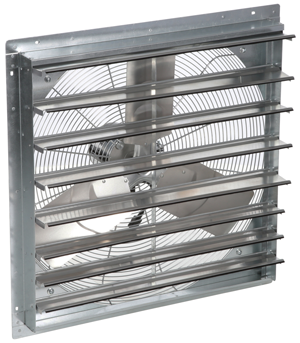

AIRMASTER FAN 23008 EPRSM30 Shutter Mount Exhaust Fan, 30 Inch Blade, 3 Speed, 1/4 HP, Totally Enclosed Air Over, 4,970 cfm, 1 Phase
Get it by Tuesday, Aug 18
13.00% off
€599.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Shutter Mount Exhaust Fan |
| Assembled | Assembled |
| Bearing Type | Ball |
| Blade Dia. | 30" |
| Blade Material | Aluminum |
| Cfm @ 0.000 In Sp | 4970 CFM |
| Cfm @ 0.125 In Sp | 3510 CFM |
| Control Type | Pull Chain |
| Drive Package Included | No |
| Drive Type | Direct Drive |
| Duct Dia. | 30 3/8" |
| Duct Shape | Round |
| Electrical Connection | Hardwired |
| Enclosure | Totally |
| Exhaust Airflow @ 0.000 In Sp | 4970 CFM |
| Exhaust Airflow @ 0.100 In Sp | 3510 CFM |
| Exhaust Airflow @ 0.125 In Sp | 3510 CFM |
| Exhaust/supply Fan Item | Exhaust Fan |
| Exhaust/supply Fan Motor Hp | 1/4 hp |
| Fan Style | Shutter-Mounted |
| Fits Square Opening | 30 1/2" x 30 1/2" |
| For Cut Out Length | 30 3/4" |
| For Cut-out Height | 30 1/2" |
| For Cut-out Width | 30 1/2" |
| For Max. Wall Thickness | 5 1/2" |
| For Min. Wall Thickness | 3" |
| Frame Material | Aluminum |
| Frequency | 60 Hz |
| Full Load Amps | 3.5A |
| Guard Finish | Chrome |
| Guard Material | Steel |
| Guard Type | Exhaust |
| Height | 33 1/8" |
| Housing Finish | Galvanized |
| Housing Material | Aluminum, Steel |
| Hp | 1/4 hp |
| Included Dehumidistat | No |
| Included Grill | No |
| Included Motor | Yes |
| Max. Airflow | 4970 CFM |
| Max. Ambient Operating Temp. | 104°F |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 12 5/8" |
| Max. Exhaust Airflow @ 0.000 In Sp | 4970 CFM |
| Max. Noise Level | 12 sones |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Hp | 1/4 hp |
| Motor Insulation | Class B |
| Motor Speed | 1100 RPM |
| Motor Type | PSC |
| Nameplate Voltage | 115V AC |
| No. Of Blades | 3 |
| No. Of Fans | 1 |
| No. Of Speed | 1 |
| Noise Level @ 0.000 In Sp @ 5 Ft | 12 sones |
| Noise Level @ 0.100 In Sp @ 5 Ft. | 12 sones |
| Overall Depth | 12 5/8" |
| Overall Height | 33 1/8" |
| Overall Width | 33 1/8" |
| Phase | 1 |
| Power Cord Length | 9 ft. |
| Profile Height Family | Medium |
| Promotion Restriction | Not Eligible For Promotion |
| Shaft Dia. | 5" |
| Square Opening Required | 30" |
| Supply Airflow @ 0.000 In Sp | 3510 CFM |
| Temp. Thermostat Opens | 104°F |
| Thermal Protection | Yes |
| Ventilation Type | Exhaust |
| Venturi Depth | 3" |
| Voltage | 115V |
| Watts | 280 W |
| Width | 33 3/25" |
| Wire Guard Finish | Chrome Plated |
Shipping Info:
| Ship weight (kg) | 24.3 |
| Ship height (cm) | 84.14 |
| Ship length (cm) | 32.07 |
| Ship width (cm) | 84.14 |
| HS code | 8414513000 |
| Country of Origin | US |
Product Variants
| Model | Hp | Blade Dia. | No. Of Speed | Voltage | Material | Flow Rate | Height | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 23000 | 33/1000 hp | 7" | - | 115V AC | Aluminum | 121 CFM | - | - | €249.12 | |
| 23001 | 33/1000 hp | 10" | - | 115V AC | Aluminum, Steel | 611 CFM | - | - | €267.84 | |
| 23002 | 33/1000 hp | - | - | 115V AC | Aluminum | 815 CFM | - | - | €303.84 | |
| 23003 | 1/20 hp | 16" | - | 115V AC | Aluminum | 1216 CFM | - | - | €454.32 | |
| 23004 | 67/1000 hp | 18" | - | 115V AC | Aluminum, Steel | - | 21.13" | - | €507.60 | |
| 23005 | 1/4 hp | 24" | 3 | 115V AC | Aluminum | 3214 CFM | - | - | €635.76 | |
| 23007 | 67/1000 hp | 20" | 2 | 115V AC | Aluminum, Steel | 2235 CFM | - | - | €540.72 |
