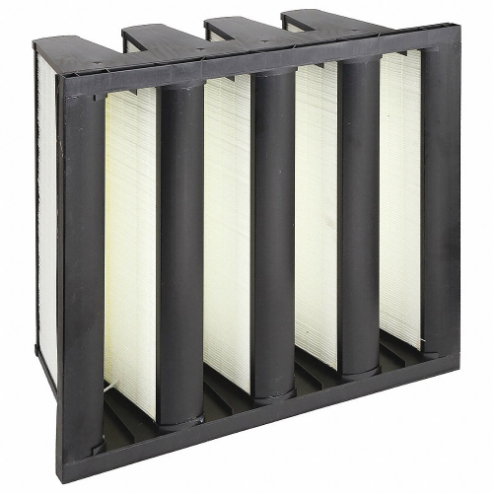

AIR HANDLER 33E937 V-bank Mp With Gasket 20x20x12 Merv 16
Get it by Friday, Dec 19
10.00% off
€380.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Bank Air Filter |
| Actual Depth | 11 1/2" |
| Actual Filter Size | 19 3/8" x 19 3/8" x 11 1/2" |
| Actual Height | 19 3/8" |
| Actual Width | 19 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 833 CFM |
| Air Flow @ 500 Fpm | 1389 CFM |
| Air Flow @ 625 Fpm | 1736 CFM |
| Air Flow @ 750 Fpm | 2083 CFM |
| Air Flow Rate | 500 FPM |
| Filter Pack Enclosure | Plastic Frame |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments |
| Final Resistance | 1.5 in. wc |
| Frame Or Header Material | Plastic |
| Gasket Location | Downstream Face |
| Gasket Material | Foam |
| Initial Resistance | 0.77 in. wc |
| Initial Resistance @ 500 Fpm | 0.8 in. wc |
| Max. Air Flow | 2198 CFM |
| Max. Temp. | 160°F |
| Media Area | 134 sq. ft. |
| Media Color | White |
| Media Material | Fiberglass |
| Merv | 16 |
| Nominal Depth | 12" |
| Nominal Filter Size | 20" x 20" x 12" |
| Nominal Height | 20" |
| Nominal Width | 20" |
| Number Of Vs | 3 |
| Performance Rating | Merv 16 |
| Recommended Final Resistance | 1.5 in. wc |
| Removes Particles Down To | 0.3 µm to 1 µm |
| Standards | Ul 900 |
| Style - Air Filters | Box |
Shipping Info:
| Ship weight (kg) | 5.18 |
| Ship height (cm) | 61.47 |
| Ship length (cm) | 61.47 |
| Ship width (cm) | 30.23 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Details:
- With/Without Gasket (With Gasket)
Product Variants
| Product | Model | Nominal Height | Nominal Width | Nominal Filter Size | Max. Temp. | Max. Air Flow | Initial Resistance | Media Area | Actual Filter Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
33E932 | 12" | 24" | 12" x 24" x 12" | 160°F | 1500 CFM | 0.57 in. wc | 98 sq. ft. | 11 3/8" x 23 3/8" x 11 1/2" | €418.62 | |
 |
33E933 | 20" | 20" | 20" x 20" x 12" | 160°F | 2198 CFM | 0.57 in. wc | 134 sq. ft. | 19 3/8" x 19 3/8" x 11 1/2" | €415.85 | |
 |
33E934 | 20" | 24" | - | 150°F | 2872 CFM | 0.57 in. wc | 161 sq. ft. | - | €484.37 | |
|
33E935 | 24" | 24" | 24" x 24" x 12" | 160°F | 3000 CFM | 0.57 in. wc | 196 sq. ft. | 23 3/8" x 23 3/8" x 11 1/2" | €469.05 | |
|
33E936 | 12" | 24" | 12" x 24" x 12" | 160°F | 1500 CFM | 0.77 in. wc | 98 sq. ft. | 11 3/8" x 23 3/8" x 11 1/2" | €292.17 | |
|
33E938 | 20" | 24" | 20" x 24" x 12" | 160°F | 2872 CFM | 0.77 in. wc | 162 sq. ft. | 19 3/8" x 23 3/8" x 11 1/2" | €369.86 | |
|
33E939 | 24" | 24" | 24" x 24" x 12" | 160°F | 3000 CFM | 0.77 in. wc | 196 sq. ft. | 23 3/8" x 23 3/8" x 11 1/2" | €373.45 |
