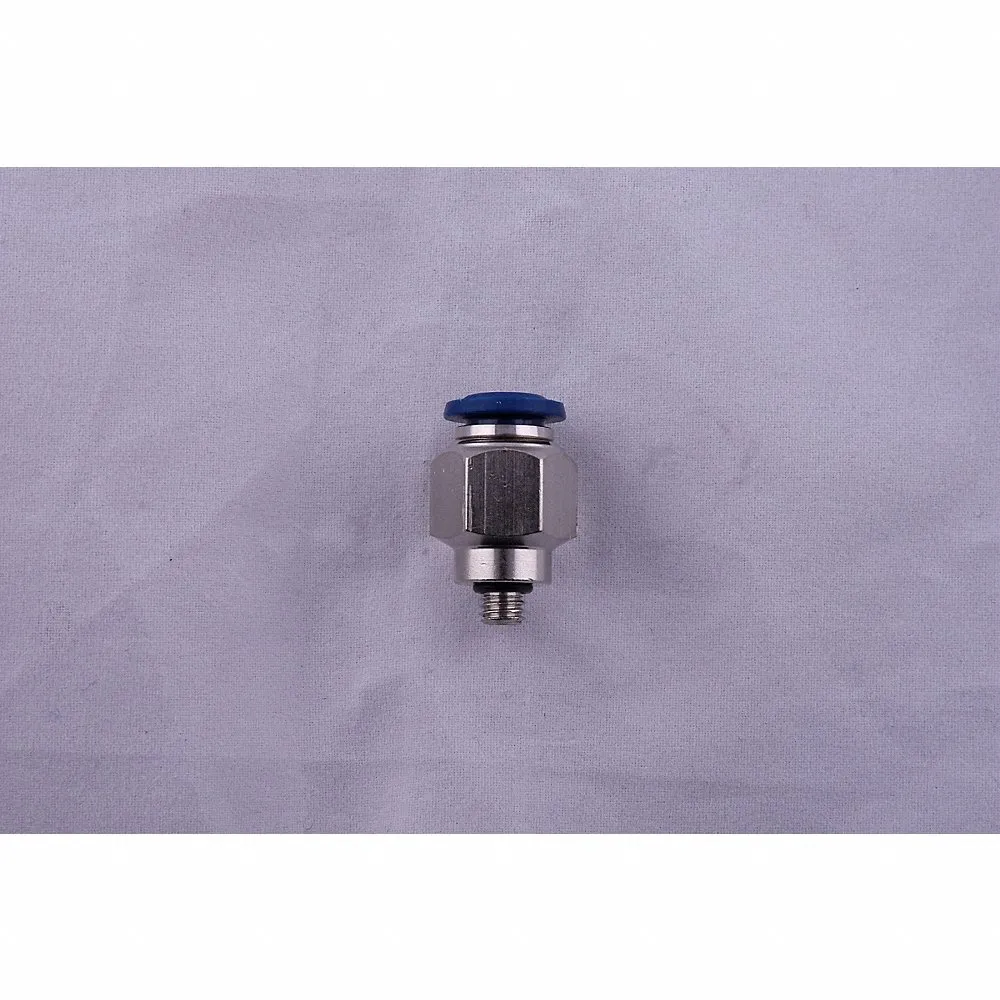

AIGNEP 88020-04-32 Push to Connect Fitting, Nickel Plated Brass, Push-to-Connect x MUNF, For 1/4 Inch Tube OD
€1.94 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Application | Air, Non-Potable Water |
| Color | Silver |
| Compatible Copper Tube Size | 1/4" |
| Compatible Tube Material | Copper, Nylon, Polyethylene, Polyurethane |
| Finish/coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | Munf |
| Fitting Side B Pipe Size | 5/16" |
| Fitting Thread Size | #10-32 |
| Includes Pre-applied Thread Sealant | Yes |
| Maximum Operating Pressure | 290 psi |
| Maximum Operating Temperature | 160°F |
| Minimum Operating Temperature | 0°F |
| Overall Length | 15/16" |
| Release Ring Material | Composite |
| Release Type | Collet |
| Resistance Properties | Impact Resistant, Vibration Resistant |
| Specific Fitting Shape | Straight Adapter |
| System Of Measurement | Imperial |
| Thread Sealant Type | NBR70 |
Shipping Info:
| Ship length (cm) | 2.38 |
| Country of Origin | IT |
