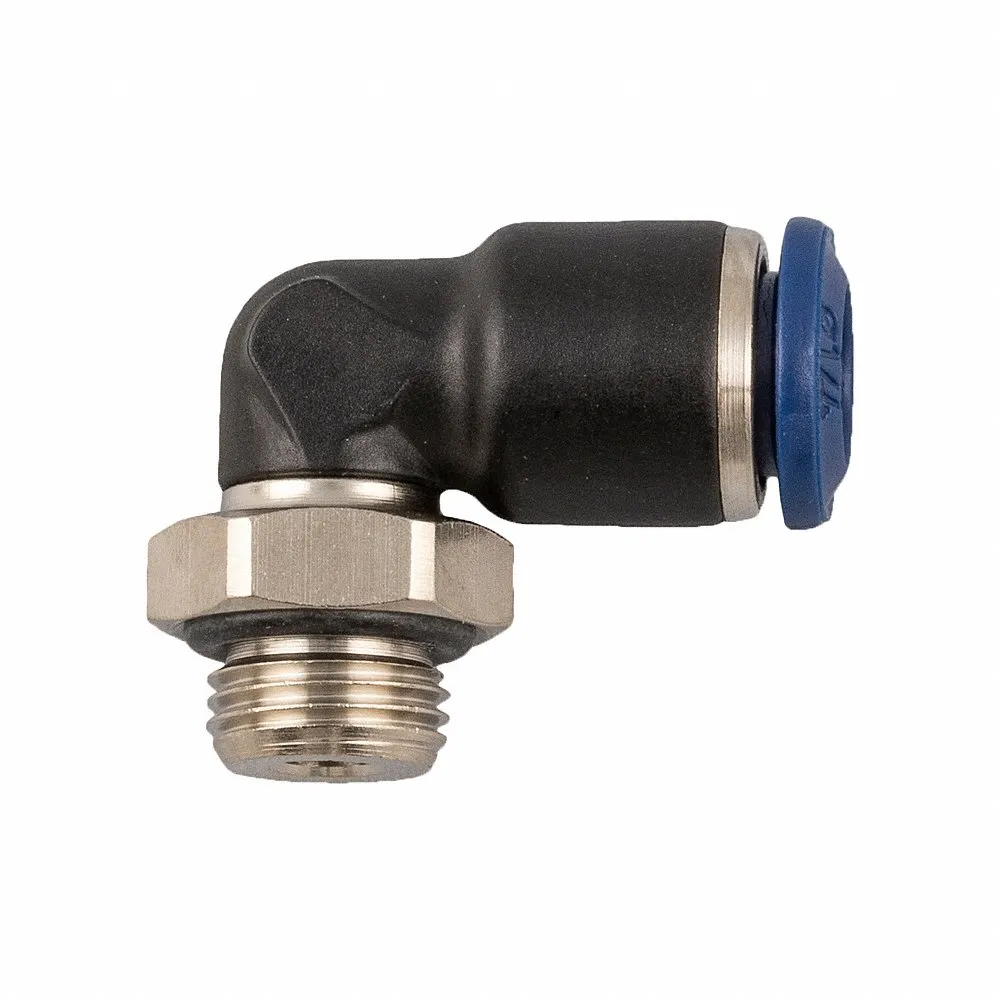

AIGNEP 85110-05-04 Composite Swivel Elbow, 5/16 Inch Tube x 1/4 Inch Swift-Fit
Item: CL7VWKModel: 85110-05-04Cross Ref: 787W76
7 In Stock
Ships within 2 days via
13.00% off
€4.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Application | Air, Non Potable Water |
| Color | Black |
| Compatible Copper Tube Size | 5/16" |
| Compatible Tube Material | Copper, Nylon, Polyethylene, Polyurethane |
| Fitting Material | Nylon |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outside Dia. | 5/16" |
| Fitting Side B Connection Type | Universal |
| Fitting Side B Pipe Size | 1/4" |
| Fitting Thread Size | 1/4" |
| Included Pre-applied Thread Sealant | Yes |
| Max. Operating Pressure | 250 psi |
| Max. Operating Temp. | 160°F |
| Min. Operating Temp. | 0°F |
| Overall Length | 1 21/32" |
| Release Ring Material | Composite |
| Release Type | Collet |
| Resistance Properties | Impact Resistant, Vibration Resistant |
| Specific Fitting Shape | 90° Swivel Elbow Adapter |
| System Of Measurement | Imperial |
| Thread Sealant Type | NBR70 |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 4.21 |
| Ship width (cm) | 2.54 |
| Country of Origin | IT |
