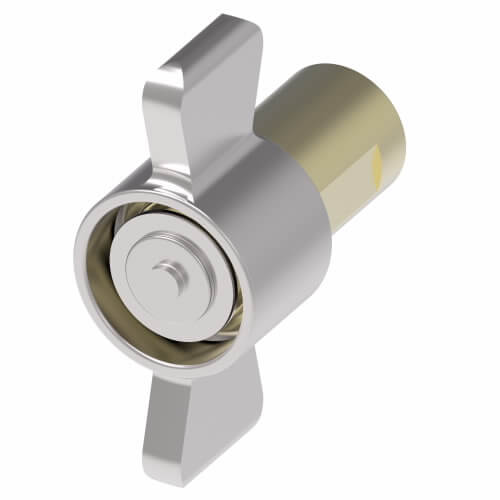

AEROQUIP 5100-S5-16B Quick Connect Hose Coupling, 1 Inch Coupling Size, Brass, 151 lpm Max. Flow Rate
Item: AB9TPHModel: 5100-S5-16BCross Ref: 2F535
7 In Stock
Ships within 2 days via
5.00% off
€426.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Coupler Body |
| Angle | Straight |
| Application | Hydraulics And Fluid Transfer, On-highway Hydraulic Wet Lines, Dump And Refuse Vehicles, Bulk Liquid Transfer |
| Body Material | Brass |
| Body Size | 1 |
| Connection Style | Thread To Connect |
| Connection Type | NPT |
| Coupling Component | Socket |
| Coupling Locking Type | Thread-To-Connect |
| Coupling Size | 1" |
| Coupling Type | Coupling |
| End Gender 1 | Female |
| End Gender 2 | Female |
| End Size 1 | 1" |
| End Size 2 | 1" |
| End Type 2 | NPTF |
| Finish Plating | Zinc Trivalent |
| Finish, Coating | Trivalent Chromium Zinc |
| Fitting Type | FNPT |
| Flow Rate | 40 GPM |
| Fluid Compatibility | Hydraulic Oil |
| Fluid Loss | 0.35 cu. cm |
| For Use With | Truck Wet Lines |
| Hansen Interchange | 96-P36 |
| Hansen Interchange | 96-S36 |
| Height | 4.38" |
| Hex Size 1 | 1 11/25" |
| Hose Fitting Gender | Female |
| Included Bearing | No |
| Included Shut Off | Yes |
| Included Valve | Yes |
| Internal Connection Type | Thread To Connect |
| Item Type | Female Half |
| Latch Type | Threaded Together |
| Length | 3 17/25" |
| Material | Brass, Carbon Steel |
| Max. Air Inclusion | 0.5 cu. cm |
| Max. Flow Rate | 151 LPM |
| Max. Vacuum Pressure | 28 in. hg |
| Max. Working Pressure @ 70f | 3000 psi |
| Max. Working Temp. | 250°F |
| Media | Hydraulic |
| Min. Operating Temp. | -40°F |
| Overall Length | 3 11/16" |
| Parker Interchange | 6125-16 |
| Pipe Size Npt | 1 |
| Port Size | 1" |
| Pull Ring Material | PTFE |
| Safeway Interchange | S515W-8 |
| Seal Material | Nitrile |
| Series | 5100 Series |
| Shut Off | Double |
| Sleeve Material | Steel |
| Snap-tite Interchange | B78C-16-16-F, B78C16-16F+H61 |
| Thread Sealant | No |
| Thread Size | 1"-11.5 |
| Thread Size 2 | 1"-11 1/2 |
| Vacuum | 28 in. hg |
| Valve Type | Tubular |
| Weatherhead Interchange | 5100-S5-16B |
| Width | 4.38" |
| Working Pressure | 3000 psi |
Shipping Info:
| Ship weight (kg) | 0.87 |
| Ship height (cm) | 11.13 |
| Ship length (cm) | 9.35 |
| Ship width (cm) | 11.13 |
| HS code | 7307995045 |
| Country of Origin | US |
Product Variants
| Product | Model | Body Size | End Size 1 | Coupling Size | Max. Working Pressure @ 70f | Finish, Coating | Max. Flow Rate | Flow Rate | Working Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5100-S5-12B | 3/4" | 3/4" | 3/4" | 3000 psi | Plain | 68 LPM | 18 GPM | 3000 psi | €384.08 | |
|
5100-S5-20B | 1.25 | 1 1/4" | 1 1/4" | 2750 psi | Plain | 284 LPM | 75 GPM | 2750 psi | €798.56 |
