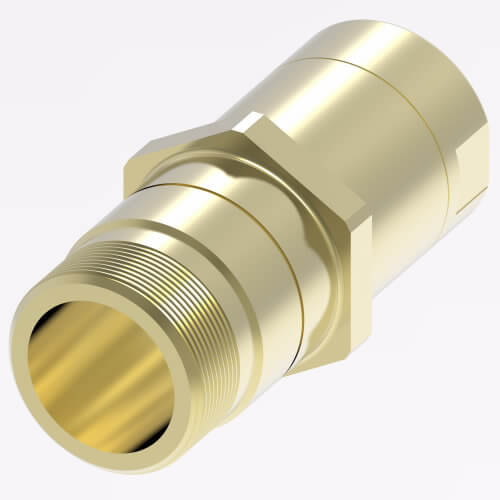

AEROQUIP 5100-S2-12B Quick Connect Hose Coupling, 3/4 Inch Coupling Size, Brass, 68 lpm Max. Flow Rate
Item: AD9YNFModel: 5100-S2-12BCross Ref: 4VTR6
7 In Stock
Ships within 2 days via
5.00% off
€268.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Coupler Body |
| Angle | Straight |
| Application | Hydraulics And Fluid Transfer, On-highway Hydraulic Wet Lines, Dump And Refuse Vehicles, Bulk Liquid Transfer |
| Body Material | Brass |
| Body Size | 3/4" |
| Connection Type | NPT |
| Coupling Component | Plug |
| Coupling Locking Type | Thread-To-Connect |
| Coupling Size | 3/4" |
| Coupling Type | Coupling |
| End Gender 1 | Male |
| End Gender 2 | Female |
| End Size 1 | 1 1/2" |
| End Size 2 | 3/4" |
| End Type 1 | UNF |
| End Type 2 | NPTF |
| Finish, Coating | Plain |
| Fitting Type | FNPT |
| Flow Rate | 18 GPM |
| Fluid Compatibility | Hydraulic Oil |
| Fluid Loss | 0.26 cu. cm |
| For Use With | Truck Wet Lines |
| Hansen Interchange | 96-P31 |
| Height | 1.38" |
| Hex Size 1 | 1.82" |
| Hose Fitting Gender | Female |
| Included Bearing | No |
| Included Shut Off | Yes |
| Included Valve | Yes |
| Item Type | Male Half |
| Latch Type | Threaded Together |
| Length | 3.11" |
| Material | Brass |
| Max. Air Inclusion | 0.34 cu. cm |
| Max. Flow Rate | 68 LPM |
| Max. Vacuum Pressure | 28 in. hg |
| Max. Working Pressure @ 70f | 3000 psi |
| Max. Working Temp. | 250°F |
| Media | Hydraulic |
| Min. Operating Temp. | -40°F |
| Overall Length | 3 1/8" |
| Parker Interchange | 6105-12 |
| Pipe Size Npt | 3/4 |
| Port Size | 3/4" |
| Pull Ring Material | PTFE |
| Safeway Interchange | S511-6, S511W-6 |
| Seal Material | Nitrile |
| Series | 5100 Series |
| Shut Off | Double |
| Sleeve Material | Steel |
| Snap-tite Interchange | B78N-12-12-F, B78N12-12F |
| Thread Sealant | No |
| Thread Size | 3/4"-14 |
| Thread Size 1 | 1 1/2"-12 |
| Thread Size 2 | 3/4"-14 |
| Vacuum | 28 in. hg |
| Valve Type | Tubular |
| Weatherhead Interchange | 5100-S2-12B |
| Width | 1.38" |
| Working Pressure | 3000 psi |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 3.51 |
| Ship length (cm) | 7.9 |
| Ship width (cm) | 3.51 |
| HS code | 7307929000 |
| Country of Origin | US |
Product Variants
| Product | Model | Body Size | End Size 1 | Flow Rate | Working Pressure | Port Size | Height | End Size 2 | Thread Size 2 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5100-S2-16B | 1 | 1 7/8" | 40 GPM | 3000 psi | 1" | 1.74" | 1" | 1"-11 1/2 | €277.51 | |
|
5100-S2-20B | 1.25 | 2 1/8" | 75 GPM | 2750 psi | 1 1/4" | 2 2/25" | 1" | 1 1/4"-11 1/2 | €678.52 |
