AEROQUIP 4411-4S Hydraulic Hose Fitting
Item: AB9TNQModel: 4411-4SCross Ref: 2F513
7 In Stock
Ships within 2 days via
5.00% off
€20.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Fitting |
| Angle | Straight |
| Compatible Hose Inside Dia. | 1/4" |
| Compatible Hoses | FC802/FC558 |
| Compatible Tube Outside Dia. | 1/4" |
| Construction Style | Reusable |
| End Gender 1 | Female |
| End Size 1 | 7/16" |
| End Type 1 | SAE 37 |
| End Type 2 | Line, Hose, Tube |
| Female Sae Size (in.) | 7/16-20 |
| Finish Plating | Dura Kote |
| Finish, Coating | Trivalent Chromate Zinc |
| Fitting Material | Steel |
| Fitting Shape | Straight |
| For Use With Hose Series | FC558 Series, FC802 Series |
| Height | 0.62" |
| Hex Size 1 | 14/25" |
| Hex Size 2 | 0.62" |
| Hose Cut Off Factor | 1.23" |
| Hose Dash Size | -4 |
| Hose Fitting A Connection Type | Jic |
| Hose Fitting A Gender | Female |
| Hose Fitting A Size | 7/16" |
| Hose Fitting B Connection Type | Hose |
| Hose Fitting B Gender | Genderless |
| Hose Fitting B Size | 1/4" |
| Inside Dia. | 0.13" |
| Item Type | Fitting Assembly |
| Jic Thread (in.) | 7/16-20 |
| Length | 1.97" |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Working Pressure @ 70f | 3000 psi |
| Operating Pressure | 7000 psi |
| Outside Dia. | 0.62" |
| Overall Length | 1.97 mm |
| Reusable | Yes |
| Thread Angle (deg.) | 37 |
| Thread Sealant | No |
| Thread Size | 7/16"-20 |
| Thread Size 1 | 7/16"-20 |
| Thread Type | JIC |
| Width | 0.62" |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 1.57 |
| Ship length (cm) | 5 |
| Ship width (cm) | 1.57 |
| HS code | 7307995045 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Fitting Material | Height | Compatible Hose Inside Dia. | Thread Size 1 | Hex Size 1 | End Gender 1 | Hose Cut Off Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
63-190990-6 | Brass And Carbon Steel | Brass, Steel | 3/4" | 1" | 5/8"-18 | 3/4" | Female | 1 1/4" | €49.50 | |
 |

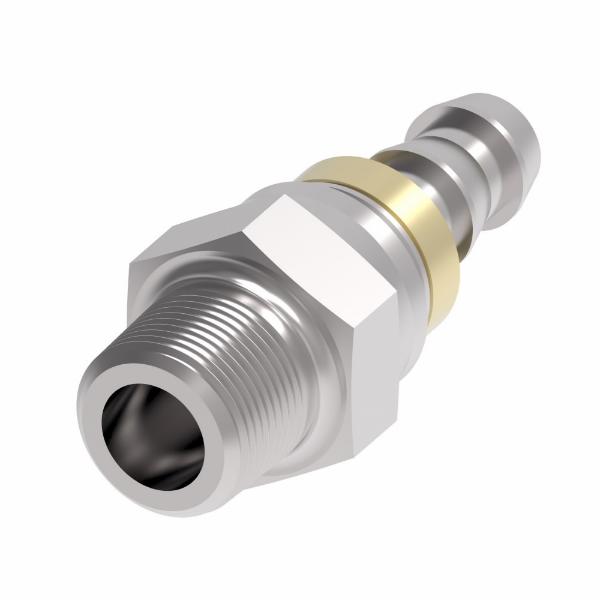

FJ9068-0404S | Carbon Steel | Steel | 0.87" | 1/4" | 1/4"-18 | 3/4" | Male | 1.43" | €52.00 | |
|
FJ9068-0606S | Carbon Steel | Steel | 1.01" | 0.38" | 3/8"-18 | 22/25" | Male | 1.43" | €80.30 | |
|
FJ9068-0808S | Carbon Steel | - | 1 2/25" | 1/2" | 1/2"-14 | 0.94" | Male | 1.69" | €77.68 | |
 |

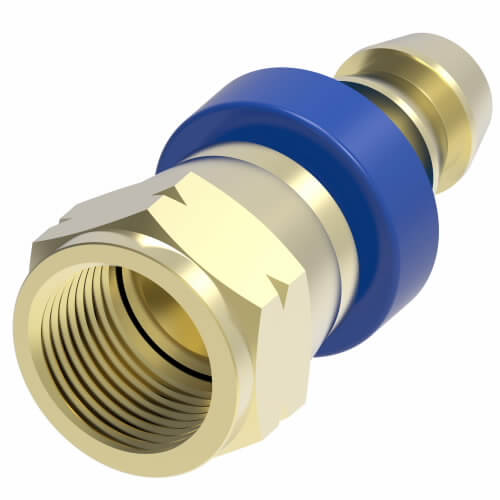

4739-12B | Brass | Brass x Brass | 1 1/4" | 3/4" | 1 1/16"-14 | 1 1/4" | Female | 1.19" | €44.71 | |
|
4739-6B | Brass | Brass x Brass | 0.86" | 3/8" | 5/8"-18 | 3/4" | Female | 0.81" | €11.84 | |
 |
190296-10S | Carbon Steel | Steel | 2.34" | 5/8" | 7/8"-14 | 1" | Female | 1.65" | €64.71 |
