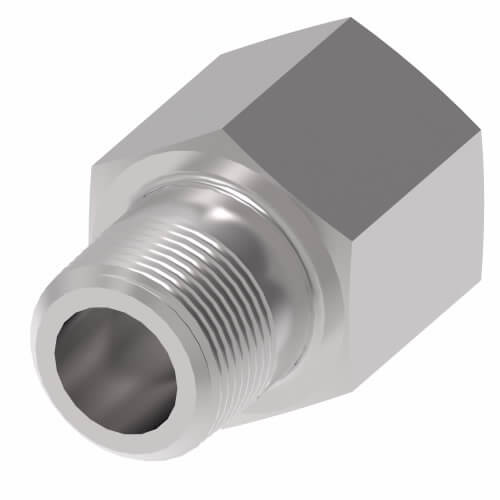

AEROQUIP 2246-12-12S Hydraulic Hose Adapter, Nptf Male Sae Orb Female Carbon Steel
Item: AH8RNNModel: 2246-12-12SCross Ref: 38YP66
7 In Stock
Ships within 2 days via
5.00% off
€52.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Adapter |
| Adapter Material | Carbon Steel |
| Angle | Straight |
| Application | Marine/Military, Chemical Processing, Pulp And Paper Industries, Food And Beverage Processing, Off-Shore Drilling |
| Compatible Pipe Size | 3/4" |
| Crimpable | No |
| End Gender 1 | Male |
| End Gender 2 | Female |
| End Size 1 | 3/4" |
| End Size 2 | 1" |
| End Type 1 | NPTF |
| End Type 2 | SAE ORB |
| Finish | Dura Kote |
| Fitting Material | Carbon Steel |
| Fitting Movement | Rigid |
| Fitting Shape | Straight |
| For Hose Type | Hydraulic |
| Height | 1.313" |
| Hex Size 1 | 1.313" |
| Hose Fitting A Connection Type | NPTF |
| Hose Fitting A Gender | Male |
| Hose Fitting A Size | 3/4" |
| Hose Fitting B Connection Type | ORB |
| Hose Fitting B Gender | Female |
| Hose Fitting B Size | 3/4" |
| Included O-ring | Yes |
| Inside Dia. | 18/25" |
| Item Type | NPTF Male/SAE ORB Female Straight Adapter |
| Length | 1 23/25" |
| Male Ors Size (in.) | 3/4"-14 |
| Male Sae Size (in.) | 1-1/16"-12 |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Operating Temp. | 250°F |
| Max. Working Pressure @ 70f | 3000 psi |
| Min. Operating Temp. | -40°F |
| Overall Length | 1.92" |
| Thread Sealant | No |
| Thread Size | 3/4"-14 |
| Thread Size 1 | 3/4"-14 |
| Thread Size 2 | 1 1/16"-12 |
| Tube Od 1 | 3/4" |
| Tube Od 2 | 3/4" |
| Width | 1.313" |
| Working Pressure | 3000 psi |
Shipping Info:
| Ship weight (kg) | 0.61 |
| Ship height (cm) | 3.34 |
| Ship length (cm) | 4.88 |
| Ship width (cm) | 3.34 |
| Country of Origin | US |
Product Details:
- Fitting Shape : Straight
Product Variants
| Model | Hose Fitting B Size | Hose Fitting A Size | Max. Working Pressure @ 70f | Finish | Compatible Pipe Size | Fitting Shape | Fitting Movement | Included O-ring | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2246-2-4S | 1/4" | 1/8" | 5000 psi | Dura Kote | 1/8" | Straight | Rigid | Yes | €27.25 | |
| 2246-4-6S | 3/8" | 1/4" | 4000 psi | Dura Kote | 1/4" | Straight | Rigid | Yes | €37.75 | |
| 2246-6-8S | 3/4" | 3/8" | 4000 psi | Dura Kote | 3/8" | Straight | Rigid | Yes | €28.12 | |
| 2246-8-10S | 5/8" | 1/2" | 3000 psi | Dura Kote | 1/2" | Straight | Rigid | Yes | €45.65 | |
| 2246-16-16S | 1" | 1" | 2500 psi | Dura Kote | 1" | Straight | Rigid | Yes | €134.65 | |

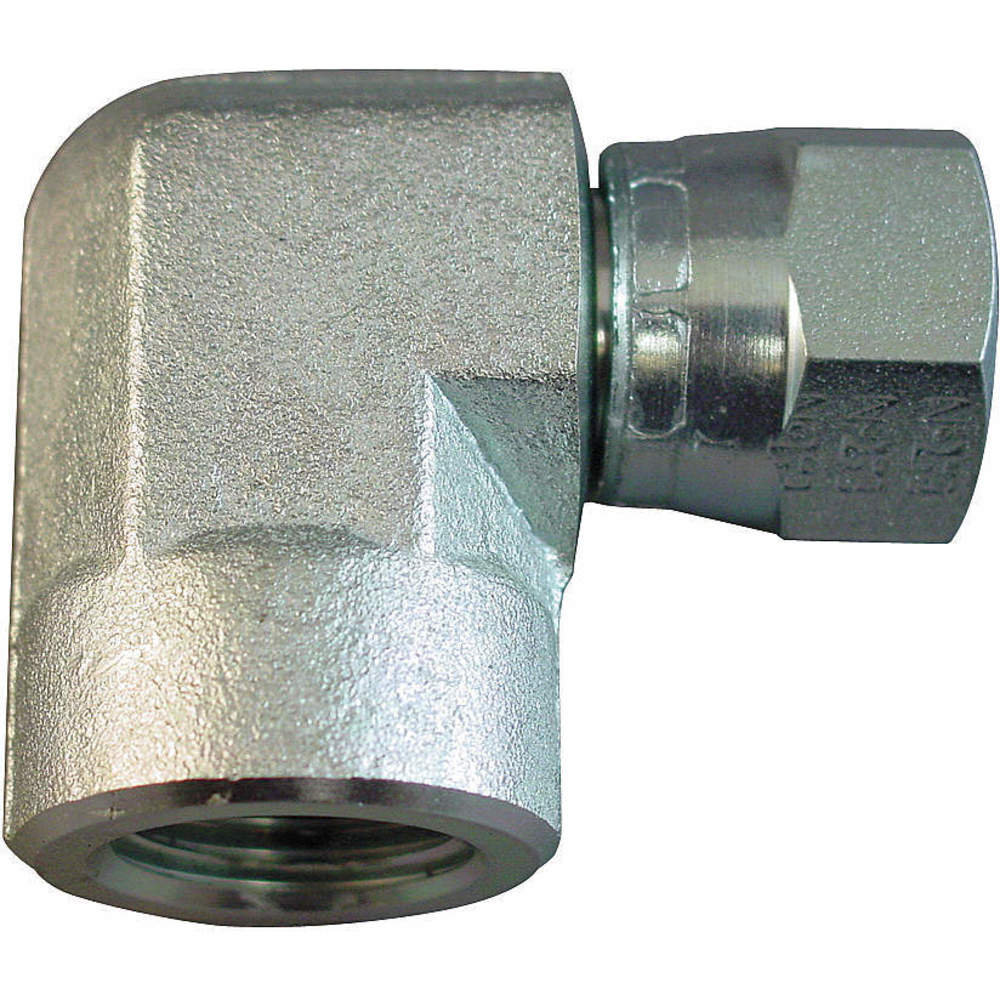

| 2244-12-12S | - | - | 3000 psi | Trivalent Chromate Zinc | 3/4" | 90° Elbow | Swivel | No | €62.10 |
