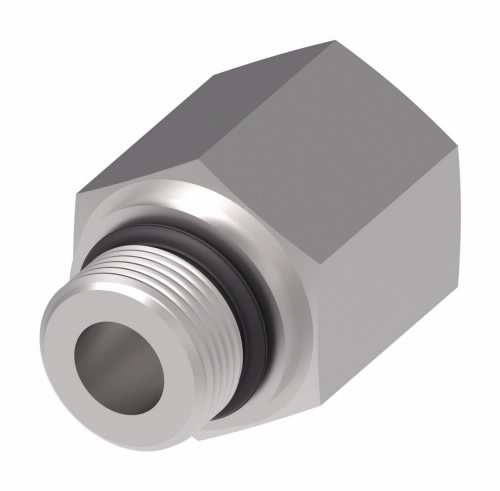

AEROQUIP 2216-12-12S Hydraulic Hose Adapter, 3/4 Inch x 3/4 Inch Size, Female x Male, NPTF x ORB, Rigid
Item: AD9YERModel: 2216-12-12SCross Ref: 4VRZ2
7 In Stock
Ships within 2 days via
10.00% off
€27.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Adapter |
| (f)npt Size | 3/4-14 |
| Angle | Straight |
| Application | Marine/Military, Chemical Processing, Pulp And Paper Industries, Food And Beverage Processing, Off-Shore Drilling |
| Compatible Pipe Size | 3/4" |
| Crimpable | No |
| End Gender 1 | Female |
| End Gender 2 | Male |
| End Size 1 | 3/4" |
| End Size 2 | 1" |
| End Type 1 | NPTF |
| End Type 2 | SAE ORB |
| Finish | Dura Kote |
| Fitting Movement | Rigid |
| Fitting Shape | Straight |
| For Hose Type | Hydraulic |
| Height | 1.313" |
| Hex Size 1 | 1.313" |
| Hose Fitting A Connection Type | NPTF |
| Hose Fitting A Gender | Female |
| Hose Fitting A Size | 3/4" |
| Hose Fitting B Connection Type | ORB |
| Hose Fitting B Gender | Male |
| Hose Fitting B Size | 3/4" |
| Includes O-ring | Yes |
| Inside Dia. | 0.61" |
| Item Type | NPTF Female/SAE ORB Male Straight Adapter |
| Length | 1.67" |
| Male Sae Size (in.) | 1-1/16-12 |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Operating Temp. | 250°F |
| Max. Working Pressure @ 70 F | 3000 psi |
| Min. Operating Temp. | -40°F |
| Thread Sealant | No |
| Thread Size | 3/4"-14 |
| Thread Size 1 | 3/4"-14 |
| Thread Size 2 | 1 1/16"-12 |
| Tube Od 1 | 3/4" |
| Tube Od 2 | 3/4" |
| Warranty | Hydraulics Warranty |
| Width | 1.313" |
| Working Pressure | 3500 psi |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.34 |
| Ship length (cm) | 4.24 |
| Ship width (cm) | 3.34 |
| HS code | 7307929000 |
| Country of Origin | US |
Product Variants
| Model | Hose Fitting A Size | Hose Fitting B Size | Fitting Shape | Fitting Movement | Material | Crimpable | Includes O-ring | Hose Fitting A Gender | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2216-4-4S | 1/4" | 1/4" | Straight | Rigid | Carbon Steel | No | Yes | Female | €12.15 | |
| 2216-4-6S | 1/4" | 3/8" | Straight | Rigid | Carbon Steel | No | Yes | Female | €14.95 | |
| 2216-6-6S | 3/8" | 3/8" | Straight | Rigid | Carbon Steel | No | Yes | Female | €76.69 | |
| 2216-6-8S | 3/8" | 1/2" | Straight | Rigid | Carbon Steel | No | Yes | Female | €16.04 | |
| 2216-6-10S | 3/8" | 5/8" | Straight | Rigid | Carbon Steel | No | Yes | Female | €70.70 | |
| 2216-8-8S | 1/2" | 1/2" | Straight | Rigid | Carbon Steel | No | Yes | Female | €16.52 | |
| 2216-8-10S | 1/2" | 5/8" | Straight | Rigid | Carbon Steel | No | Yes | Female | €18.50 |
