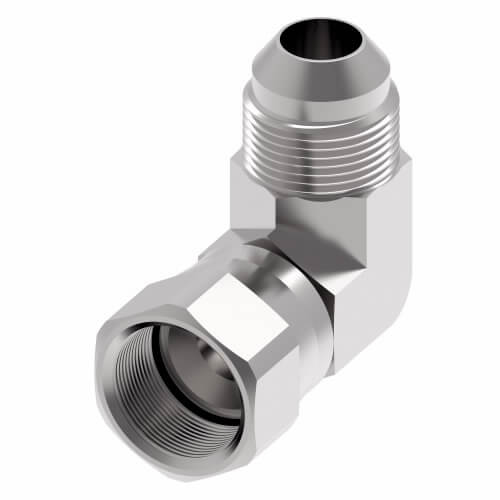

AEROQUIP 2071-5-5S Elbow, 90 Deg., 5/16 Inch x 5/16 Inch Size, Female x Male, JIC x JIC, Swivel
Item: AH8RPRModel: 2071-5-5SCross Ref: 38YP92
7 In Stock
Ships within 2 days via
5.00% off
€33.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Adapter |
| Adapter Material | Carbon Steel |
| Angle | 90° |
| Application | Marine/Military, Chemical Processing, Pulp And Paper Industries, Food And Beverage Processing, Off-Shore Drilling |
| Crimpable | No |
| Drop Dimension | 0.95 |
| End Gender 1 | Female |
| End Gender 2 | Male |
| End Size 2 | 1/2" |
| End Type 1 | SAE 37 |
| End Type 2 | SAE 37 |
| Finish | Dura Kote |
| Fitting Material | Carbon Steel |
| Fitting Movement | Swivel |
| Fitting Shape | 90° Elbow |
| For Hose Type | Hydraulic |
| Height | 1 2/25" |
| Hex Size 1 | 0.55" |
| Hex Size 2 | 0.62" |
| Hose Fitting A Connection Type | Jic |
| Hose Fitting A Gender | Female |
| Hose Fitting A Size | 5/16" |
| Hose Fitting B Connection Type | Jic |
| Hose Fitting B Gender | Male |
| Hose Fitting B Size | 5/16" |
| Included O-ring | No |
| Inside Dia. | 0.23" |
| Item Type | SAE 37掳 Female/SAE 37掳 Male 90掳 Elbow Adapter |
| Length | 0.95" |
| Male Ors Size (in.) | 1/2"-20 |
| Male Sae Size (in.) | 1/2"-20 |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Operating Temp. | 400°F |
| Max. Working Pressure @ 70f | 5000 psi |
| Min. Operating Temp. | -65°F |
| Overall Length | 1" |
| Thread Size 1 | 1/2"-20 |
| Thread Size 2 | 1/2"-20 |
| Width | 0.62" |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.74 |
| Ship length (cm) | 2.41 |
| Ship width (cm) | 1.57 |
| Country of Origin | US |
Product Details:
- Fitting Shape : 90 Degrees Elbow
Product Variants
| Model | Hose Fitting B Size | Hose Fitting A Size | Max. Working Pressure @ 70f | Thread Size 1 | Height | Hex Size 1 | Thread Size 2 | End Size 2 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2071-6-6S | 3/8" | 3/8" | 4000 psi | 9/16"-18 | 1 7/25" | 0.55" | 9/16"-18 | 9/16" | €19.49 | |
| 2071-8-8S | 1/2" | 1/2" | 4000 psi | 3/4"-16 | 1 2/5" | 3/4" | 3/4"-16 | 3/4" | €25.98 | |
| 2071-4-4S | 1/4" | 1/4" | 5500 psi | 7/16"-20 | 1.03" | 0.47" | 7/16"-20 | 7/16" | €18.72 | |
| 2071-12-12S | 1 1/16" | 1 1/16" | 3000 psi | 1 1/16"-12 | 1 19/25" | 1.06" | 1 1/16"-12 | 1" | €44.75 | |
| 2071-16-16S | 1" | 1" | 2500 psi | 1 5/16"-12 | 1.01" | 1.26" | 1 5/16"-12 | 1" | €64.93 | |
| 2071-10-10S | 5/8" | 5/8" | 3000 psi | 7/8"-14 | 1 16/25" | 0.87" | 7/8"-14 | 7/8" | €24.00 | |
| 2071-20-20S | 1 1/4" | 1 1/4" | 2000 psi | 1 5/8"-12 | 2 8/25" | 1.61" | 1 5/8"-12 | 1" | €141.41 |
