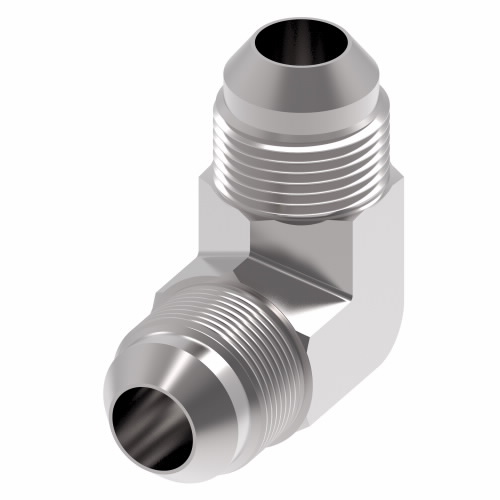

AEROQUIP 2039-16-16S Elbow, 90 Deg., 1 Inch x 1 Inch Size, Male x Male, JIC x JIC, Rigid
Item: AH8RQJModel: 2039-16-16SCross Ref: 38YR09
7 In Stock
Ships within 2 days via
10.00% off
€42.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Adapter |
| Adapter Material | Carbon Steel |
| Angle | 90° |
| Application | Marine/Military, Chemical Processing, Pulp And Paper Industries, Food And Beverage Processing, Off-Shore Drilling |
| Crimpable | No |
| Drop Dimension | 1.81 |
| End Gender 1 | Male |
| End Gender 2 | Male |
| End Size 1 | 1 5/16" |
| End Size 2 | 1" |
| End Type 1 | SAE 37 |
| End Type 2 | SAE 37 |
| Finish | Dura Kote |
| Fitting Movement | Rigid |
| Fitting Shape | 90° Elbow |
| For Hose Type | Hydraulic |
| Height | 2 11/25" |
| Hex Size 1 | 1 1/4" |
| Hose Fitting A Connection Type | Jic |
| Hose Fitting A Gender | Male |
| Hose Fitting A Size | 1" |
| Hose Fitting B Connection Type | Jic |
| Hose Fitting B Gender | Male |
| Hose Fitting B Size | 1" |
| Includes O-ring | No |
| Inside Dia. | 21/25" |
| Item Type | SAE 37掳 Male/SAE 37掳 Male 90掳 Elbow Adapter |
| Length | 2 11/25" |
| Male Ors Size (in.) | 1-5/16"-12 |
| Male Sae Size (in.) | 1-5/16"-12 |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Operating Temp. | 400°F |
| Max. Working Pressure @ 70 F | 2500 psi |
| Overall Length | 1.9" |
| Thread Sealant | No |
| Thread Size 1 | 1 5/16"-12 |
| Thread Size 2 | 1 5/16"-12 |
| Warranty | Hydraulics Warranty |
| Width | 1 1/4" |
| Working Pressure | 3500 psi |
Shipping Info:
| Ship weight (kg) | 0.44 |
| Ship height (cm) | 6.2 |
| Ship length (cm) | 6.2 |
| Ship width (cm) | 3.18 |
| Country of Origin | US |
Product Details:
- Fitting Shape : 90 Degrees Elbow
Product Variants
| Model | Hose Fitting A Size | Hose Fitting B Size | Overall Length | Fitting Shape | Fitting Movement | Crimpable | Includes O-ring | Hose Fitting A Gender | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2039-4-4S | 1/4" | 1/4" | 0.9" | 90° Elbow | Rigid | No | No | Male | €35.21 | |
| 2039-5-5S | 5/16" | 5/16" | 1" | 90° Elbow | Rigid | No | No | Male | €48.02 | |
| 2039-6-6S | 3/8" | 3/8" | 1.1" | 90° Elbow | Rigid | No | No | Male | €14.13 | |
| 2039-8-8S | 1/2" | 1/2" | 1.3" | 90° Elbow | Rigid | No | No | Male | €19.27 | |
| 2039-10-10S | - | - | - | - | - | - | - | - | €51.65 | |
| 2039-12-12S | 3/4" | 3/4" | 1.7" | 90° Elbow | Rigid | No | No | Male | €63.99 |
