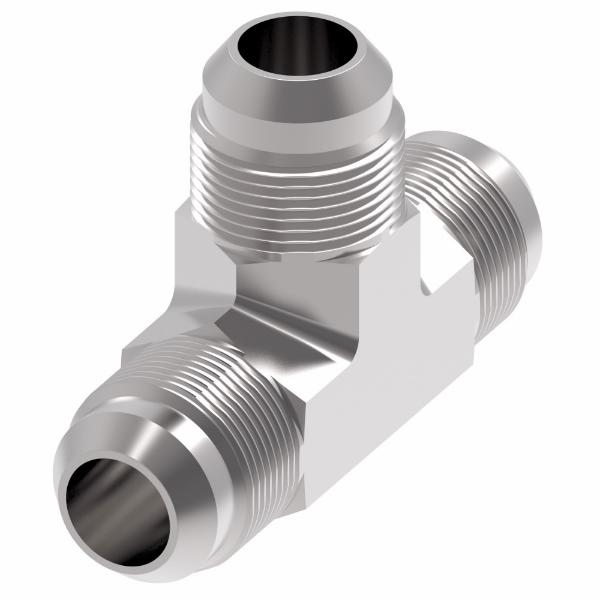

AEROQUIP 2033-8-8S Hose Adapter, 1/2 Inch x 1/2 Inch x 1/2 Inch Size, Male x Male x Male, JIC x JIC x JIC
Item: AD9XTRModel: 2033-8-8SCross Ref: 4VPW8
7 In Stock
Ships within 2 days via
5.00% off
€36.56 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Adapter |
| Angle | Tee |
| Application | Other- Hydraulic, Instrumentation, And Chemical Processing Systems |
| Crimpable | No |
| Drop Dimension | 1.25 |
| End Gender 1 | Male |
| End Gender 2 | Male |
| End Gender 3 | Male |
| End Size 1 | 3/4" |
| End Size 2 | 3/4" |
| End Type 1 | SAE 37 |
| End Type 2 | SAE 37 |
| End Type 3 | SAE |
| Finish | Dura Kote |
| Fitting Material | Carbon Steel |
| Fitting Movement | Rigid |
| Fitting Shape | TEE |
| For Hose Type | Hydraulic |
| Height | 2 1/2" |
| Hex Size 1 | 0.748" |
| Hose Fitting A Connection Type | Jic |
| Hose Fitting A Gender | Male |
| Hose Fitting A Size | 1/2" |
| Hose Fitting B Connection Type | Jic |
| Hose Fitting B Gender | Male |
| Hose Fitting B Size | 1/2" |
| Hose Fitting C Connection Type | JIC |
| Hose Fitting C Gender | Male |
| Hose Fitting C Size | 1/2" |
| Included O-ring | No |
| Item Type | SAE 37 Male/SAE 37 Male/SAE 37 Male Tee Adapter |
| Length | 1 5/8" |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Operating Temp. | 400°F |
| Max. Working Pressure @ 70f | 6000 psi |
| Min. Operating Temp. | -65°F |
| Overall Length | 2.5" |
| Thread Size 1 | 3/4"-16 |
| Thread Size 2 | 3/4"-16 |
| Thread Size 3 | 3/4"-16 |
| Tube Od 1 | 1/2" |
| Tube Od 2 | 1/2" |
| Tube Od 3 | 1/2" |
| Width | 0.748" |
| Working Pressure | 4000 psi |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 4.13 |
| Ship width (cm) | 1.9 |
| HS code | 7307995045 |
| Country of Origin | US |
Product Variants
| Model | Hose Fitting B Size | Hose Fitting A Size | Max. Working Pressure @ 70f | Thread Size 1 | Height | End Size 1 | Hex Size 1 | Thread Size 2 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2033-4-4S | 1/4" | 1/4" | 8500 psi | 7/16"-20 | 1.78" | 7/16" | 0.472" | 7/16"-20 | €24.12 | |
| 2033-6-6S | 3/8" | 3/8" | 7000 psi | 9/16"-18 | 2 3/25" | 9/16" | 0.551" | 9/16"-18 | €39.60 | |
| 2033-10-10S | 5/8" | 5/8" | 5500 psi | 7/8"-14 | 2.9" | 7/8" | 0.866" | 7/8"-14 | €36.07 | |
| 2033-12-12S | 3/4" | 3/4" | 4000 psi | 1 1/16"-12 | 3 8/25" | 1 1/16" | 1.063" | 1 1/16"-12 | €58.40 | |
| 2033-16-16S | 1" | 1" | 3500 psi | 1 5/16"-12 | 3.62" | 1 5/16" | 1.26" | 1 5/16"-12 | €95.63 | |
| 2033-5-5S | 5/16" | 5/16" | 5000 psi | 1/2"-20 | 1.9" | 1/2" | 0.551" | 1/2"-20 | €104.35 | |
| 2033-20-20S | 1 1/4" | 1 1/4" | 2000 psi | 1 5/8"-12 | 4 3/25" | 1 5/8" | 1.969" | 1 5/8"-12 | €221.87 |
