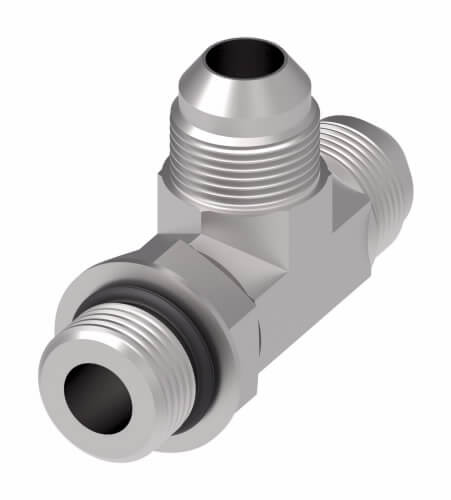

AEROQUIP 203005-20-20S Hose Adapter, 1 1/4 Inch x 1 1/4 Inch x 1 1/4 Inch Size, Male x Male x Male, Rigid, Tee
Item: AH8RTDModel: 203005-20-20SCross Ref: 38YR50
7 In Stock
Ships within 2 days via
5.00% off
€277.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Adapter |
| Adapter Material | Carbon Steel |
| Angle | Tee |
| Application | Other- Hydraulic, Instrumentation, And Chemical Processing Systems |
| Crimpable | No |
| Drop Dimension | 2.06 |
| End Gender 1 | Male |
| End Gender 2 | Male |
| End Gender 3 | Male |
| End Size 1 | 1 5/8" |
| End Size 2 | 1" |
| End Size 3 | 1" |
| End Type 1 | SAE 37 |
| End Type 2 | SAE 37 |
| End Type 3 | SAE ORB |
| Finish | Dura Kote |
| Fitting Material | Carbon Steel |
| Fitting Movement | Rigid |
| Fitting Shape | TEE |
| For Hose Type | Hydraulic |
| Height | 2.867" |
| Hex Size 1 | 1.614" |
| Hex Size 2 | 1 7/8" |
| Hose Fitting A Connection Type | ORB |
| Hose Fitting A Gender | Male |
| Hose Fitting A Size | 1 1/4" |
| Hose Fitting B Connection Type | Jic |
| Hose Fitting B Gender | Male |
| Hose Fitting B Size | 1 1/4" |
| Hose Fitting C Connection Type | JIC |
| Hose Fitting C Gender | Male |
| Hose Fitting C Size | 1 1/4" |
| Included O-ring | Yes |
| Item Type | SAE 37 Male/SAE 37 Male/SAE ORB Male Tee Adapter |
| Length | 4.31" |
| Male Ors Size (in.) | 1-5/8"-12 |
| Male Sae Size (in.) | 1-5/8"-12 |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Operating Temp. | 250°F |
| Max. Working Pressure @ 70f | 2000 psi |
| Min. Operating Temp. | -40°F |
| Overall Length | 4.45" |
| Seal Part Number If Included | 22617-20 |
| Thread Sealant | No |
| Thread Size 1 | 1 5/8"-12 |
| Thread Size 2 | 1 5/8"-12 |
| Thread Size 3 | 1 5/8"-12 |
| Tube Od 1 | 1 1/4" |
| Tube Od 2 | 1 1/4" |
| Tube Od 3 | 1 1/4" |
| Width | 1 7/8" |
| Working Pressure | 2000 psi |
Shipping Info:
| Ship weight (kg) | 1.06 |
| Ship height (cm) | 7.28 |
| Ship length (cm) | 10.95 |
| Ship width (cm) | 4.76 |
| Country of Origin | US |
Product Details:
- Fitting Shape : Tee
Product Variants
| Product | Model | Hose Fitting B Size | Hose Fitting A Size | Max. Working Pressure @ 70f | Thread Size 1 | Height | End Size 1 | Hex Size 1 | Thread Size 2 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
203005-10-10S | 5/8" | 5/8" | 3000 psi | 7/8"-14 | 1.885" | 7/8" | 0.87" | 7/8"-14 | €144.04 |
