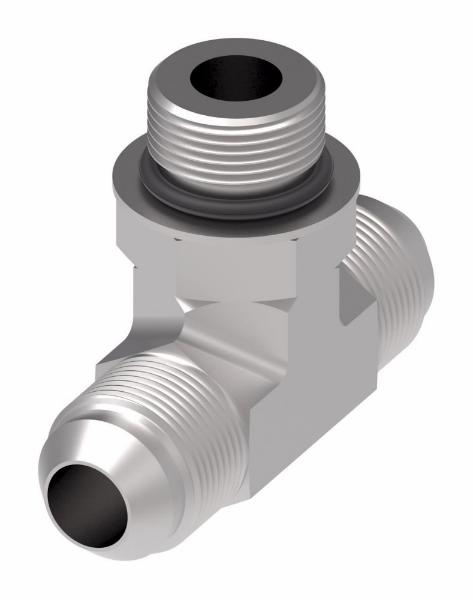

AEROQUIP 203003-4-4S Hose Adapter, 1/4 Inch x 1/4 Inch x 1/4 Inch Size, Male x Male x Male, ORB x JIC x JIC
Item: AD9YJMModel: 203003-4-4SCross Ref: 4VTE1
7 In Stock
Ships within 2 days via
10.00% off
€44.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Adapter |
| Angle | Tee |
| Application | Other- Hydraulic, Instrumentation, And Chemical Processing Systems |
| Crimpable | No |
| End Gender 1 | Male |
| End Gender 2 | Male |
| End Gender 3 | Male |
| End Size 1 | 7/16" |
| End Size 2 | 7/16" |
| End Size 3 | 7/16" |
| End Type 1 | SAE 37 |
| End Type 2 | SAE 37 |
| End Type 3 | SAE ORB |
| Finish | Dura Kote |
| Fitting Movement | Rigid |
| Fitting Shape | Tee |
| For Hose Type | Hydraulic |
| Height | 1.78" |
| Hex Size 1 | 14/25" |
| Hex Size 2 | 0.563" |
| Hose Fitting A Connection Type | ORB |
| Hose Fitting A Gender | Male |
| Hose Fitting A Size | 1/4" |
| Hose Fitting B Connection Type | Jic |
| Hose Fitting B Gender | Male |
| Hose Fitting B Size | 1/4" |
| Hose Fitting C Connection Type | JIC |
| Hose Fitting C Gender | Male |
| Hose Fitting C Size | 1/4" |
| Includes O-ring | Yes |
| Item Type | SAE 37 Male/SAE 37 Male/SAE ORB Male Tee Adapter |
| Length | 1 1/4" |
| Male Sae Size (in.) | 7/16-20 |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Operating Temp. | 400°F |
| Max. Working Pressure @ 70 F | 4500 psi |
| Min. Operating Temp. | -65°F |
| Overall Length | 1.78" |
| Seal Part Number If Included | 22617-4 |
| Thread Sealant | No |
| Thread Size 1 | 7/16"-20 |
| Thread Size 2 | 7/16"-20 |
| Thread Size 3 | 7/16"-20 |
| Tube Od 1 | 1/4" |
| Tube Od 2 | 1/4" |
| Tube Od 3 | 1/4" |
| Width | 0.563" |
| Working Pressure | 4500 psi |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 4.52 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 1.43 |
| HS code | 7307995045 |
| Country of Origin | US |
Product Variants
| Model | Hose Fitting A Size | Hose Fitting B Size | Overall Length | Hose Fitting C Size | Fitting Shape | Fitting Movement | Crimpable | Includes O-ring | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 203003-6-6S | 3/8" | 3/8" | 2.12" | 3/8" | Tee | Rigid | No | Yes | €52.44 | |
| 203003-8-8S | 1/2" | 1/2" | 2.5" | 1/2" | Tee | Rigid | No | Yes | €61.88 | |
| 203003-12-12S | 3/4" | 3/4" | 3.32" | 3/4" | Tee | Rigid | No | Yes | €78.32 | |
| 203003-16-16S | 1" | 1" | 3.62" | 1" | Tee | Rigid | No | Yes | €245.79 |
