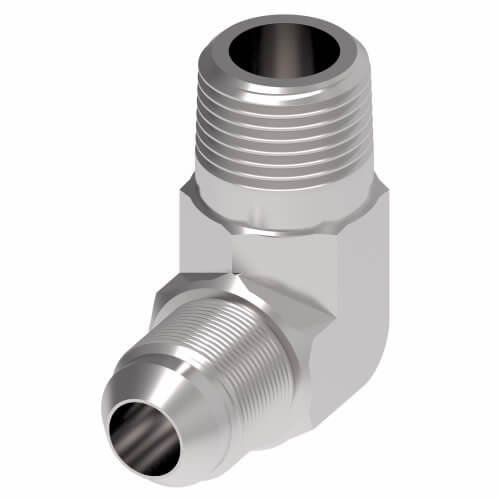

AEROQUIP 2024-4-4S Elbow, 90 Deg., 1/4 Inch x 1/4 Inch Size, Male x Male, NPTF x JIC, Rigid
Item: AF2NFTModel: 2024-4-4SCross Ref: 6W440
7 In Stock
Ships within 2 days via
10.00% off
€13.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Adapter |
| (m)npt Size (in.) | 1/4-18 |
| Angle | 90° |
| Application | Marine/Military, Chemical Processing, Pulp And Paper Industries, Food And Beverage Processing, Off-Shore Drilling |
| Compatible Pipe Size | 1/4" |
| Crimpable | No |
| Drop Dimension | 1.05 |
| End Gender 1 | Male |
| End Gender 2 | Male |
| End Size 1 | 1/4" |
| End Size 2 | 7/16" |
| End Type 1 | NPTF |
| End Type 2 | SAE 37 |
| Finish | Dura Kote |
| Fitting Movement | Rigid |
| Fitting Shape | 90° Elbow |
| For Hose Type | Hydraulic |
| Height | 1.325" |
| Hex Size 1 | 0.55" |
| Hose Fitting A Connection Type | NPTF |
| Hose Fitting A Gender | Male |
| Hose Fitting A Size | 1/4" |
| Hose Fitting B Connection Type | Jic |
| Hose Fitting B Gender | Male |
| Hose Fitting B Size | 1/4" |
| Includes O-ring | No |
| Inside Dia. | 0.175" |
| Item Type | NPTF Male/SAE 37掳 Male 90掳 Elbow Adapter |
| Length | 1.365" |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Operating Temp. | 400°F |
| Max. Working Pressure @ 70 F | 8500 psi |
| Min. Operating Temp. | -65°F |
| Overall Length | 1.09" |
| Thread Sealant | No |
| Thread Size | 1/4"-18 |
| Thread Size 1 | 1/4"-18 |
| Thread Size 2 | 7/16"-20 |
| Warranty | Hydraulics Warranty |
| Width | 0.55" |
| Working Pressure | 7000 psi |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 3.37 |
| Ship length (cm) | 3.47 |
| Ship width (cm) | 1.4 |
| HS code | 7307929000 |
| Country of Origin | US |
Product Variants
| Model | Hose Fitting A Size | Hose Fitting B Size | Overall Length | Fitting Shape | Fitting Movement | Crimpable | Includes O-ring | Hose Fitting A Gender | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2024-12-12S | 3/4" | 3/4" | 1.59" | 90° Elbow | Rigid | No | No | Male | €41.48 | |
| 2024-16-16S | 1" | 1" | 1.97" | 90° Elbow | Rigid | No | No | Male | €61.18 | |
| 2024-4-5S | 1/4" | 5/16" | 1.09" | 90° Elbow | Rigid | No | No | Male | €28.27 | |
| 2024-6-4S | 3/8" | 1/4" | 1.22" | 90° Elbow | Rigid | No | No | Male | €19.61 | |
| 2024-8-10S | 1/2" | 5/8" | 1.47" | 90° Elbow | Rigid | No | No | Male | €24.72 | |
| 2024-8-6S | 1/2" | 3/8" | 1.47" | 90° Elbow | Rigid | No | No | Male | €30.75 | |
| 2024-8-12S | 1/2" | 3/4" | 1.59" | 90° Elbow | Rigid | No | No | Male | €30.70 |
