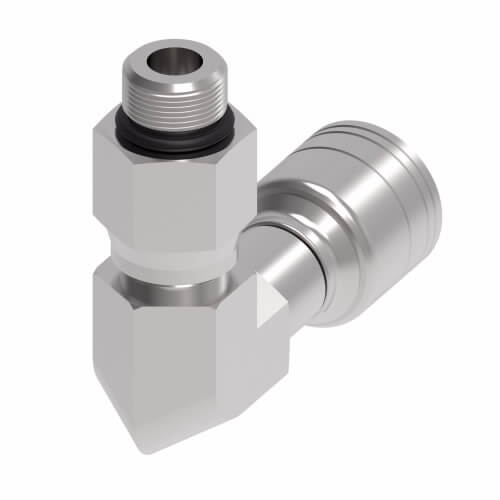

AEROQUIP 1AA6SBB6 Hydraulic Crimp Fitting, Steel x Steel, 90 Deg., Elbow, Male x Genderless
Item: AH8RYGModel: 1AA6SBB6Cross Ref: 38YT94
7 In Stock
Ships within 2 days via
10.00% off
€78.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Fitting |
| Angle | 90° |
| Application | General Purpose Low And Medium Pressure Hydraulics. Use H277 Or H435 Where Shock Hazards Exist |
| Compatible Hose Id | 3/8" |
| Compatible Hoses | 2661(Aaa12 Thru Aaa32), FC310, FC510, FC579, FC611, FC619 (Aaa12 Thru Aaa32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681Aaa6, GH781, GH793, EC115, EC215, EC110, EC210, EC118 |
| Construction Style | Crimp |
| Drop Dimension | 1.87 |
| End Gender 1 | Male |
| End Size 1 | 9/16" |
| End Type 1 | Unf |
| End Type 2 | Line, Hose, Tube |
| Finish/plating | Dura Kote |
| Fitting Movement | Swivel |
| Fitting Shape | 90° Elbow |
| For Hose Dash Size | -6 |
| For Hose I.d. | 3/8" |
| For Use With Hose Series | 3130 (-04 to -16) Series, 3740 (-12 to -16) Series, 3E80 (-06 to -16) Series, 3R80 (-06 to -16) Series |
| Height | 2 2/5" |
| Hex Size 1 | 22/25" |
| Hex Size 2 | 3/4" |
| Hose Cut-off Factor | 1.33" |
| Hose Dash Size | -6 |
| Hose Fitting A Connection Type | ORB |
| Hose Fitting A Gender | Male |
| Hose Fitting A Size | 9/16" |
| Hose Fitting B Connection Type | Crimp |
| Hose Fitting B Gender | Genderless |
| Hose Fitting B Size | 3/8" |
| Inside Dia. | 0.26" |
| Item Type | Fitting Assembly |
| Length | 2 19/25" |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Reusable | No |
| Thread Size | 9/16"-18 |
| Thread Size 1 | 9/16"-18 |
| Thread Type | ORB |
| Vacuum Rating | Not Rated |
| Warranty | Hydraulics Warranty |
| Width | 1.07" |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 7.01 |
| Ship width (cm) | 2.72 |
| Country of Origin | US |
Product Details:
- Fitting Shape : Straight
- For Use With Hose Series : GH194, GH195, GH663, GH781, GH793
