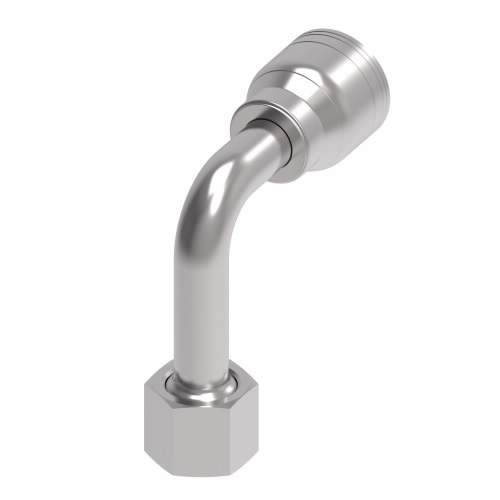

AEROQUIP 1AA4FRC4 Hydraulic Crimp Fitting, Steel x Steel, 90 Deg., Elbow, ORS x Crimp
Item: AH8RWWModel: 1AA4FRC4Cross Ref: 38YT61
7 In Stock
Ships within 2 days via
10.00% off
€54.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Fitting |
| Angle | 90° |
| Application | General Purpose Low And Medium Pressure Hydraulics. Use H277 Or H435 Where Shock Hazards Exist |
| Compatible Hose Id | 1/4" |
| Compatible Hoses | 2661(Aaa12 Thru Aaa32), FC310, FC510, FC579, FC611, FC619 (Aaa12 Thru Aaa32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681Aaa6, GH781, GH793, EC115, EC215, EC110, EC210, EC118 |
| Construction Style | Crimp |
| Drop Dimension | 1.81 |
| End Gender 1 | Female |
| End Size 1 | 9/16" |
| End Type 1 | Ors |
| End Type 2 | Line, Hose, Tube |
| Finish/plating | Dura Kote |
| Fitting Movement | Swivel |
| Fitting Shape | 90° Elbow |
| For Hose Dash Size | -4 |
| For Hose Inside Diameter | 1/4" |
| For Use With Hose Series | 2661(-12 THROUGH -32) Series, EC110 Series, EC115 Series, EC118 Series, EC210 Series, EC215 Series, FC310 Series, FC510 Series, FC579 Series, FC611 Series, FC619 (-12 THROUGH -32) Series, FC639/FC839B Series, FC693 Series, FC735 Series, FC849/FC849B Series, GH120 Series, GH194 Series, GH195 Series, GH663 Series, GH681-6 Series, GH781 Series, GH793 Series |
| Height | 2.58" |
| Hex Size 1 | 0.69" |
| Hose Cut-off Factor | 23/25" |
| Hose Dash Size | -4 |
| Hose Fitting A Connection Type | Ors |
| Hose Fitting A Gender | Female |
| Hose Fitting A Size | 9/16" |
| Hose Fitting B Connection Type | Crimp |
| Hose Fitting B Gender | Genderless |
| Hose Fitting B Size | 1/4" |
| Inside Dia. | 0.17" |
| Item Type | Fitting Assembly |
| Length | 2.23" |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Reusable | No |
| Thread Sealant | No |
| Thread Size | 9/16"-18 |
| Thread Size 1 | 9/16"-18 |
| Thread Type | ORS |
| Vacuum Rating | Not Rated |
| Warranty | Hydraulics Warranty |
| Width | 22/25" |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 6.55 |
| Ship length (cm) | 5.66 |
| Ship width (cm) | 2.24 |
| Country of Origin | US |
Product Details:
- Fitting Shape : Straight
- For Use With Hose Series : GH194, GH195, GH663, GH781, GH793
Product Variants
| Product | Model | For Hose Dash Size | Fitting Shape | For Hose I.d. | Angle | Height | Hose Fitting B Size | Hose Fitting A Size | Inside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1AA10FRA10 | -10 | 45° Elbow | 5/8" | 45 Degree | 2.43" | 5/8" | 1" | 11/25" | €96.65 | |
 |
1AA10FRB10 | -10 | 90° Elbow | 5/8" | 90° | 2.49" | 5/8" | 1" | 0.45" | €79.56 | |
|
1AA4FRA4 | -4 | 45° Elbow | - | 45 Degree | 1.51" | 1/4" | 9/16" | 0.17" | €53.03 | |
 |
1AA6FRA4 | -20 | 45° Elbow | - | 45 Degree | 1 16/25" | 1/4" | 11/16" | 0.17" | €58.12 | |
|
1AA6FRA6 | -6 | 45° Elbow | 3/8" | 45 Degree | 1.73" | 3/8" | 11/16" | 6/25" | €52.37 | |
|
1AA8FRA6 | -8 | 45° Elbow | 3/8" | 45 Degree | 0.59" | 3/8" | 13/16" | 0.26" | €70.70 | |
 |
1AA8FRA8 | -8 | 45° Elbow | 1/2" | 45 Degree | 2.09" | 1/2" | 13/16" | 0.33" | €58.21 |
