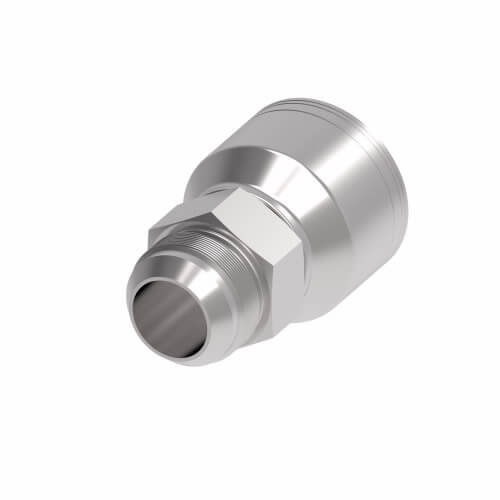

AEROQUIP 1AA20MJ16 Hydraulic Crimp Fitting, Steel x Steel, -16 For Hose Dash Size, Male x Genderless
Item: AH8RVWModel: 1AA20MJ16Cross Ref: 38YT38
7 In Stock
Ships within 2 days via
10.00% off
€159.88 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Fitting |
| Angle | Straight |
| Application | General Purpose Low And Medium Pressure Hydraulics. Use H277 Or H435 Where Shock Hazards Exist |
| Compatible Hose Id | 1" |
| Compatible Hoses | 2661(Aaa12 Thru Aaa32), FC310, FC510, FC579, FC611, FC619 (Aaa12 Thru Aaa32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681Aaa6, GH781, GH793, EC115, EC215, EC110, EC210, EC118 |
| Construction Style | Crimp |
| End Gender 1 | Male |
| End Size 1 | 1 5/8" |
| End Type 1 | Jic |
| End Type 2 | Line, Hose, Tube |
| Finish/plating | Dura Kote |
| Fitting Movement | Rigid |
| Fitting Shape | Straight |
| For Hose Dash Size | -16 |
| For Hose I.d. | 1" |
| For Use With Hose Series | 2661(-12 THROUGH -32) Series, EC110 Series, EC115 Series, EC118 Series, EC210 Series, EC215 Series, FC310 Series, FC510 Series, FC579 Series, FC611 Series, FC619 (-12 THROUGH -32) Series, FC639/FC839B Series, FC693 Series, FC735 Series, FC849/FC849B Series, GH120 Series, GH194 Series, GH195 Series, GH663 Series, GH681-6 Series, GH781 Series, GH793 Series |
| Height | 1.95" |
| Hex Size 1 | 1.69" |
| Hose Cut-off Factor | 1.71" |
| Hose Dash Size | -16 |
| Hose Fitting A Connection Type | Jic |
| Hose Fitting A Gender | Male |
| Hose Fitting A Size | 1 5/8" |
| Hose Fitting B Connection Type | Crimp |
| Hose Fitting B Gender | Genderless |
| Hose Fitting B Size | 1" |
| Inside Dia. | 0.81" |
| Item Type | Fitting Assembly |
| Length | 3.03" |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Outside Diameter | 1.94" |
| Reusable | No |
| Thread Sealant | No |
| Thread Size | 1 5/8"-12 |
| Thread Size 1 | 1 5/8"-12 |
| Thread Type | JIC |
| Vacuum Rating | Not Rated |
| Warranty | Hydraulics Warranty |
| Width | 1.94" |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 4.95 |
| Ship length (cm) | 7.7 |
| Ship width (cm) | 4.93 |
| Country of Origin | US |
Product Details:
- Fitting Shape : Straight
- For Use With Hose Series : GH194, GH195, GH663, GH781, GH793
