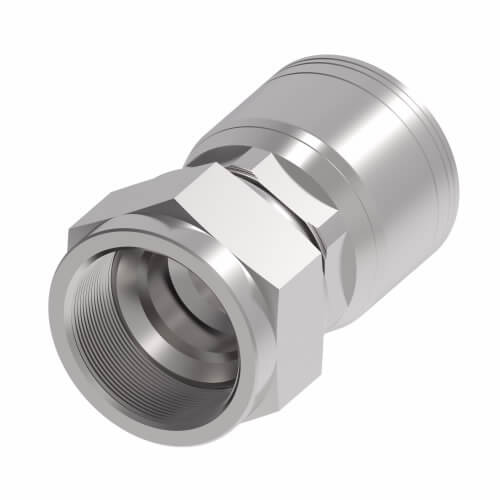

AEROQUIP 1AA20FJ16 Hydraulic Crimp Fitting, Steel x Steel, -16 For Hose Dash Size, JIC x Crimp
Item: AH8RUXModel: 1AA20FJ16Cross Ref: 38YT16
7 In Stock
Ships within 2 days via
5.00% off
€104.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Fitting |
| Angle | Straight |
| Application | General Purpose Low And Medium Pressure Hydraulics. Use H277 Or H435 Where Shock Hazards Exist |
| Compatible Hose Inside Dia. | 1 1/4" |
| Compatible Hoses | 2661(Aaa12 Thru Aaa32), FC310, FC510, FC579, FC611, FC619 (Aaa12 Thru Aaa32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681Aaa6, GH781, GH793, EC115, EC215, EC110, EC210, EC118 |
| Compatible Tube Outside Dia. | 1 1/8" |
| Construction Style | Crimp |
| End Gender 1 | Female |
| End Size 1 | 1 5/8" |
| End Type 1 | Jic |
| End Type 2 | Line, Hose, Tube |
| Finish Plating | Dura Kote |
| Fitting Material | Steel |
| Fitting Movement | Swivel |
| Fitting Shape | Straight |
| For Hose Dash Size | -16 |
| For Hose Inside Dia. | 1" |
| For Use With Hose Series | 2661(-12 THROUGH -32) Series, EC110 Series, EC115 Series, EC118 Series, EC210 Series, EC215 Series, FC310 Series, FC510 Series, FC579 Series, FC611 Series, FC619 (-12 THROUGH -32) Series, FC639/FC839B Series, FC693 Series, FC735 Series, FC849/FC849B Series, GH120 Series, GH194 Series, GH195 Series, GH663 Series, GH681-6 Series, GH781 Series, GH793 Series |
| Height | 2" |
| Hex Size 1 | 2" |
| Hex Size 2 | 1.61" |
| Hose Cut Off Factor | 1.81" |
| Hose Dash Size | -20 |
| Hose Fitting A Connection Type | Jic |
| Hose Fitting A Gender | Female |
| Hose Fitting A Size | 1 5/8" |
| Hose Fitting B Connection Type | Crimp |
| Hose Fitting B Gender | Genderless |
| Hose Fitting B Size | 1" |
| Inside Dia. | 0.81" |
| Item Type | Fitting Assembly |
| Length | 3.17" |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Outside Dia. | 22/25" |
| Reusable | No |
| Thread Sealant | No |
| Thread Size | 1 5/8"-12 |
| Thread Size 1 | 1 5/8"-12 |
| Thread Type | JIC |
| Torque | 158 lbs.-ft. to 175 lbs.-ft. |
| Vacuum | Not Rated |
| Width | 2" |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 8.05 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
Product Details:
- Fitting Shape : Straight
- For Use With Hose Series : GH194, GH195, GH663, GH781, GH793
Product Variants
| Product | Model | Height | Compatible Hose Inside Dia. | Thread Size 1 | Hex Size 1 | End Size 1 | Hose Cut Off Factor | End Type 1 | Hose Fitting B Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1AA24FJ24 | 2.7" | 1 1/2" | 1 7/8"-12 | 2.13" | 1 7/8" | 2.07" | JIC 37 | 1 1/2" | €238.55 | |
|
1AA32FJ32 | 3.31" | 2" | 2 1/2"-12 | 2 22/25" | 2 1/2" | 2.39" | JIC 37 | 2" | €299.17 | |
 |
1AA10FJ10 | 1.39" | 1 1/2" | 7/8"-14 | 1" | 7/8" | 1.62" | JIC 37 | 5/8" | €53.35 | |
|
1AA4FJ4 | 22/25" | 1/4" | 7/16"-20 | 0.55" | 7/16" | 1.07" | JIC 37 | 1/4" | €15.58 | |
 |
1AA4FJ6 | 1.07" | 3/8" | 7/16"-20 | 14/25" | 7/16" | 1.19" | SAE 37 | - | €23.59 | |
|
1AA5FJ4 | 22/25" | 1/4" | 1/2"-20 | 0.63" | 1/2" | 1.14" | SAE 37 | 1/4" | €20.66 | |
|
1AA6FJ4 | 22/25" | 3/8" | 9/16"-18 | 0.69" | 9/16" | 1.11" | JIC 37 | 1/4" | €16.52 |
