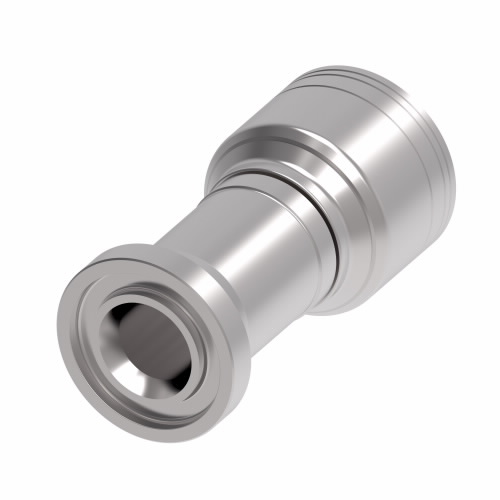

AEROQUIP 1A16FL16 Hydraulic Hose Fitting
Item: AD8GXRModel: 1A16FL16Cross Ref: 4KFL9
7 In Stock
Ships within 2 days via
5.00% off
€106.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Fitting |
| Angle | Straight |
| Application | General Purpose Low And Medium Pressure Hydraulics. Use H277 Or H435 Where Shock Hazards Exist |
| Compatible Hose Inside Dia. | 1" |
| Compatible Hoses | 2661(Aaa12 Thru Aaa32), FC310, FC510, FC579, FC611, FC619 (Aaa12 Thru Aaa32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681Aaa6, GH781, GH793, EC115, EC215, EC110, EC210, EC118 |
| Compatible Tube Outside Dia. | 1" |
| Construction Style | Crimp |
| Dia. | 1.94" |
| End Type 1 | Flanged |
| End Type 2 | Line, Hose, Tube |
| Finish | Rohs Trivalent Chromium Zinc |
| Finish Plating | Dura Kote |
| Fitting Material | Steel |
| Fitting Shape | Straight |
| Flange Code | 61 |
| Flange Size | 1 In. |
| For Use With Hose Series | GH194 Series, GH195 Series, GH663 Series, GH781 Series, GH793 Series |
| Height | 1.94" |
| Hose Cut Off Factor | 2.14" |
| Hose Dash Size | -16 |
| Hydraulic Fitting Connection Type | Crimpable |
| Hydraulic Flange Size | 1" |
| Hydraulic Hose Inside Dia. | 1" |
| Inside Dia. | 0.82" |
| Item Type | Fitting Assembly |
| Length | 3.49" |
| Material | Carbon Steel |
| Outside Dia. | 1.941" |
| Thread Sealant | No |
| Width | 1.94" |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 4.93 |
| Ship length (cm) | 8.86 |
| Ship width (cm) | 4.93 |
| HS code | 7307929000 |
| Country of Origin | US |
