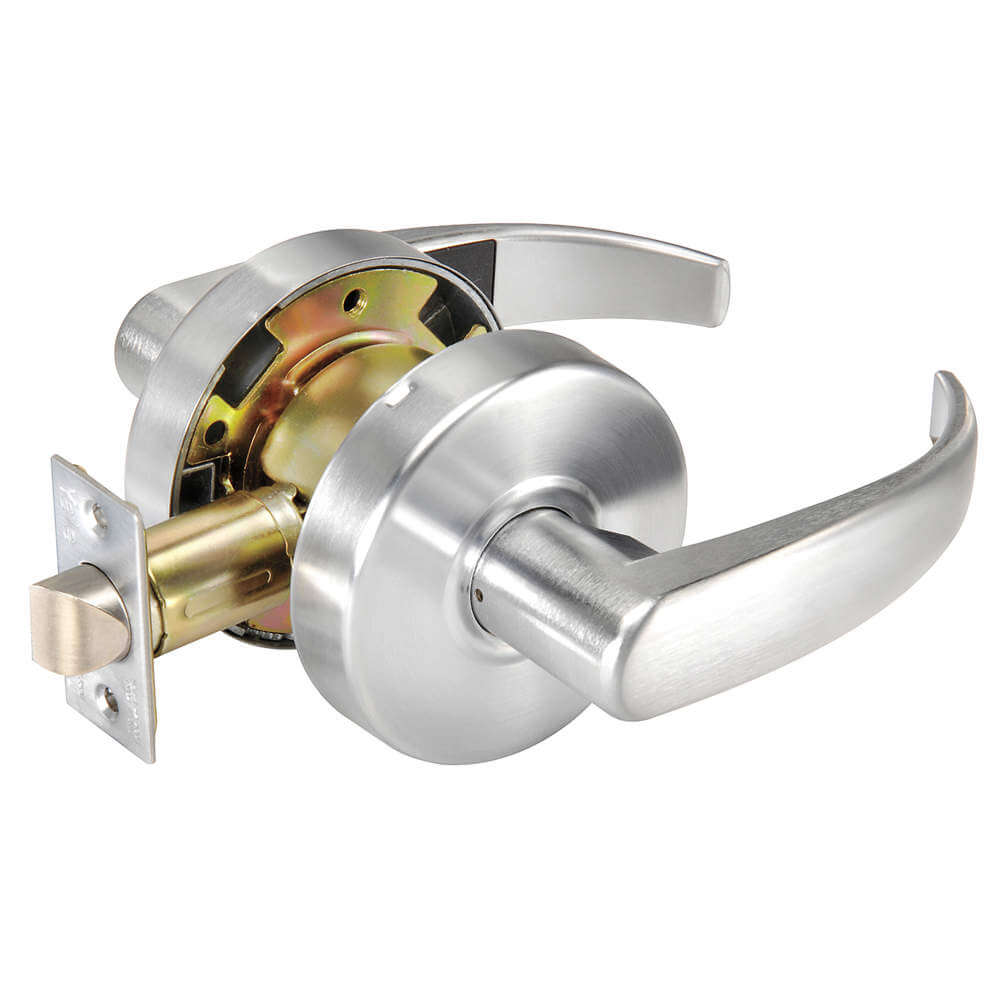

ABLOY PB4601LN x 626 Door Lever Lockset Curved Dull Chrome
Item: AE6XFEModel: PB4601LN x 626Cross Ref: 5VRU3
7 In Stock
Ships within 2 days via
€127.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lever |
| Ada Compliant | Yes |
| Ansi Grade | Grade 2 |
| Ansi Lockset Function | Passage |
| Backset | 2 3/4" |
| Bolt Type | Latch Bolt |
| Electrical/mechanical | Mechanical |
| Finish | Satin Chrome Plated |
| Fire Rating | 3 hrs. |
| For Use With | Metal Doors With Metal Frames |
| Function | Passage |
| General Lockset Function | Passage Lever Locksets |
| Hand Orientation | Non Handed |
| Handle Material | Steel |
| Handle Type | Lever |
| Included | Free Wheeling Lever |
| Included Core | No |
| Inside Locking Access | Not Lockable |
| Key Type | Not Keyed |
| Keying | Unkeyed |
| Keyway Type | Not Available |
| Knob/handle Material | Heavy Gauge Steel |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Type | Commercial |
| Lock Assembly Type | Cylindrical |
| Lockset Function | Passage |
| Lockset Function Ansi Code | F75 |
| Lockset Handle Type | Lever |
| Lockset Performance Strength | Medium Duty |
| Lockset Style | Pacific Beach |
| Lockset Type | Mechanical |
| Max. Door Thickness | 1 3/4" |
| Min. Door Thickness | 1 3/8" |
| Mortise/cylindrical | Cylindrical |
| Mounting Style | Thru Bolt |
| No. Of Keys | 0 |
| No. Of Pins | 6 |
| Outside Locking Access | Not Lockable |
| Performance Duty Rating | 2 |
| Required Door Thickness | 1 3/8" to 1 3/4" |
| Strike Dim. | 2 1/4" x 4 7/8" |
| Strike Plate Height | 4 7/8" |
| Strike Plate Lip Length | 1 1/4" |
| Strike Plate Width | 1 1/4" |
| Strike Type | Curved Lip |
| Style | Curved |
| Trim Plate Shape | Round |
| Visual Indicator Message | No Message |
Shipping Info:
| Ship weight (kg) | 1.62 |
| Ship height (cm) | 9.91 |
| Ship length (cm) | 18.8 |
| Ship width (cm) | 17.27 |
| HS code | 8301406030 |
| Country of Origin | KR |
