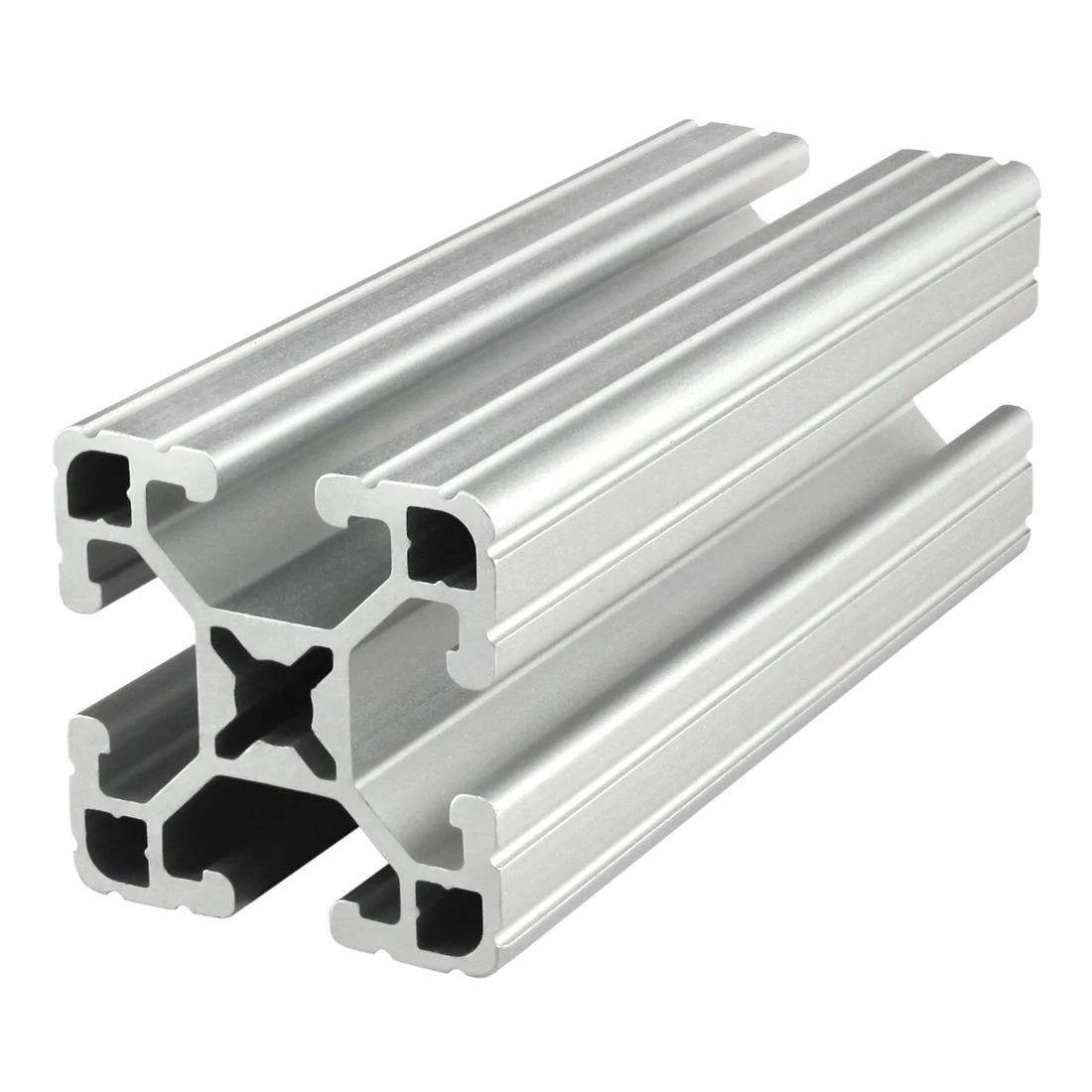

80/20 1515-UL-145 Extrusion, Ultra Lite, 4 Open T-Slot, 145 Inch Length, Aluminum, Clear

Item: AF8ZUD Model: 1515-UL-145Cross Ref: 29NZ75
Check Availability

Due to weight and dimension restrictions, please request a shipping quote

€164.60 /unit
Request a Quote

Payment Options Available

Delivery Options Available

Product Specifications:

ItemFraming Extrusion
Bore Dia.6.65mm
ColorClear
Drop Lock2 Deg.
FinishAnodize
Grade6105-T5
Height38.1mm
Length145"
MaterialAluminum
Modulus of Elasticity10200000 lbs./ sq. in.
Moment of Inertia0.1772 in4
Slot Width8.13mm
Surface Area0.787 sq. in.
TypeT-Slotted
Weight/Ft.0.924 Lb.
Width38.1mm
Yield Strength35000 psi

Shipping Info:

Ship weight (kg) 5.022
Ship height (cm)3.81
Ship length (cm)368.3
Ship width (cm)3.81
HS code7610900050

Product Details:

80/20 1515-UL-145 framing extrusion consists of four open T-slots connecting a wide range of parts and accessories to the extrusion and provides adjustment as required. This ultra-lite extrusion design can be used in machine guards, sound enclosures, work benches, panel mount racks or displays.

Features:

  • The four open T-slots allow access from any direction and are useful for mounting accessories.
  • It is integrated with align-a-grooves to assist in alignment when connecting profiles.

Frequently Asked Questions:

Q. How much weight can the aluminium extrusion support?

A. Typically aluminium structural profile is meant for lighter loads, but it is capable of supporting up to 2 tons.

Q. Is the product corrosion-resistant?

A. Aluminium extrusion comes in clear anodised finish which prevents oxidation and corrosion.

Q. What is the purpose of a T-slotted aluminium profile?

A. T-slotted aluminium profile eliminates the need for welding and resists heat stress or warping. It is lightweight and easy to fabricate and provides great aesthetic value.

Product Variants

ProductModelLengthWidthHeightModulus of ElasticityPrice
80/20 30-6060-4M Extrusion, 8 Open T-Slot, 4m Length, Aluminum, Clear | AF8ZUP 29NZ87 30-6060-4M4m60mm60mm70326.5 N/sq. mm€422.29
RFQ
80/20 45-9090-4M Extrusion, 8 Open T-Slot, 4m Length, Aluminum, Clear | AF8ZVC 29NZ99 45-9090-4M4m90mm90mm70326.5 N/sq. mm€968.29
RFQ
80/20 1515-UL-120 T-Slot Framing System | CN2RZH 1515-UL-145 / 29NZ75 1515-UL-120----€150.69
80/20 30-6060-3M T-Slot Framing System | CN2RZJ 30-6060-4M / 29NZ87 30-6060-3M----€340.54
80/20 45-9090-3M T-Slot Framing System | CN2RZK 45-9090-4M / 29NZ99 45-9090-3M----€779.38
