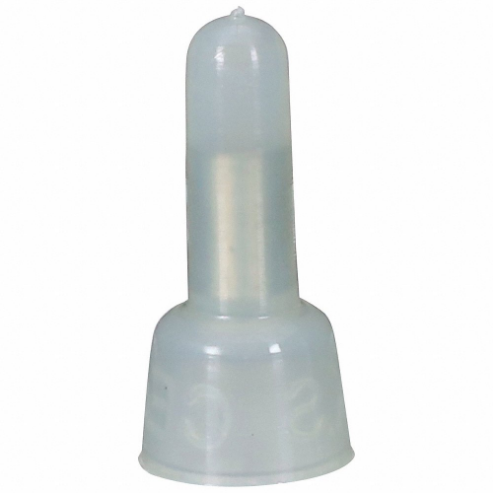

3M 7000133427 80611466436 / 58997 / S-11-A Closed-End Crimp Connector, Nylon
Item: AE2EVTModel: 7000133427Cross Ref: 4X294 / 80611466436 / 58997 / S-11-A
7 In Stock
Ships within 2 days via
10.00% off
€64.85 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Closed End Connector |
| Barrel Inside Dia. | 1/4" |
| Color | Natural |
| Color Code | Clear |
| Compatible Installation Tool Model No. | TH-440, TH-450 |
| Connection Type | Crimp |
| Contact Material | Copper |
| For Wire Type | Copper Wire |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Length | 19/25" |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Max. Wire Combination | (3) 20 AWG |
| Maximum Wire Combination | 16 AWG |
| Maximum Wire Size | 16 AWG |
| Min. Wire Combination | (2) 22 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Combination | (2) 22 AWG |
| Minimum Wire Size | 22 AWG |
| Overall Length | 0.83" |
| Rohs Compliant | Yes |
| Seam Style | Butted |
| Special Features | Built-In Wire Stop For Correct Positioning, Smooth, Flared End Provides Quick Wire Insertion |
| Strip Length | 1/2" |
| Termination Style | Crimp |
| Wire Size | 22 AWG to 16 AWG |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 2.11 |
| Ship width (cm) | 4.32 |
| HS code | 8536904000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Wire Size | Barrel Inside Dia. | Insulation Type | Strip Length | Max. Temp. | Contact Material | Color Code | Connection Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7000133426 | 18 AWG to 10 AWG | 4" | Nylon | 1/2" | 221°F | Copper | Clear | Crimp | 50 | €44.85 |
