3M 7010320793 80611466857 / 59039 / MU10-8RX Ring Terminal, Bare, #8 Stud Size, 12 AWG to 10 AWG Wire Size Range
Item: AA9JZZModel: 7010320793Cross Ref: 1DME6 / 80611466857 / 59039 / MU10-8RX
7 In Stock
Ships within 2 days via
10.00% off
€82.23 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ring Terminal |
| Color Code | Bare |
| Connection Material | Copper |
| Connection Type | Crimp |
| Contact Material | Copper |
| Insulation Color | Bare |
| Insulation Type | Non Insulated |
| Max. Temp. | 347°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 12 AWG |
| Overall Length | 0.73" |
| Seam | Butted |
| Seam Style | Butted |
| Stud Size | #8 |
| Terminal Connection | Crimp |
| Terminal Connection Type | Crimp |
| Terminal Type | Standard |
| Termination | Crimp Termination Only |
| Tongue Width | 0.38" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 1.85 |
| Ship width (cm) | 5.33 |
| HS code | 8536904000 |
| Country of Origin | US |
Product Variants
| Product | Model | Stud Size | Overall Length | Tongue Width | Insulation Color | Max. Voltage | Max. Temp. | Contact Material | Termination | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7010351316 | #8 | 0.74" | 0.31" | Bare | 600V | 347°F | Copper | Crimp Termination Only | 100 | €174.47 | |
|
7010398241 | #8 | 0.74" | 0.31" | Bare | 600V | 347°F | Copper | Crimp Termination Only | 100 | €181.73 | |
 |

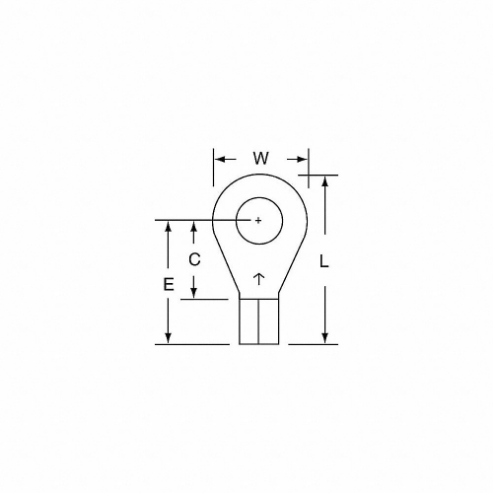

7100164077 | 1/4" | 24/25" | - | Bare | 600V | 347°F | Copper | - | 500 | €343.67 | |
 |

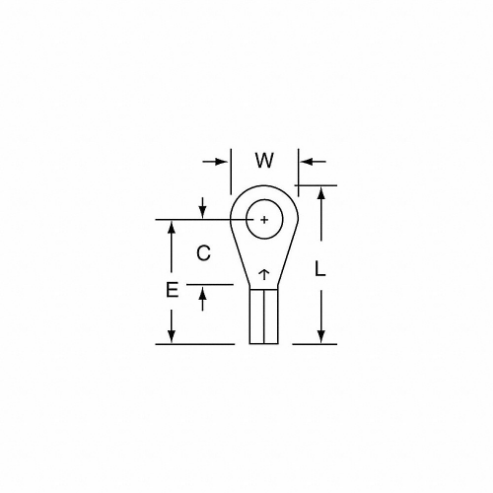

7100163917 | #8 | 0.74" | 0.31" | Bare | 600V | 347°F | Copper | Crimp Termination Only | 1000 | €318.12 | |
 |

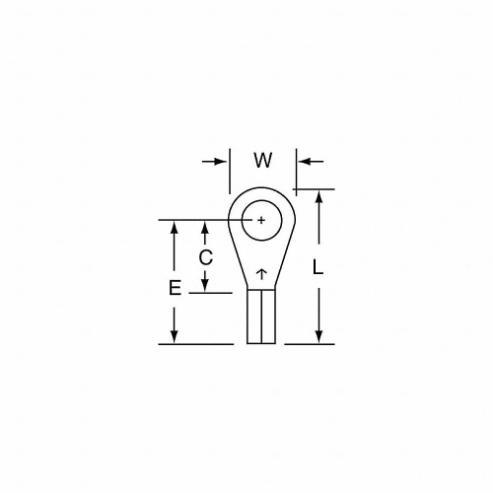

7100163918 | #10 | 0.74" | - | Bare | 600V | 347°F | Copper | - | 1000 | €340.69 | |
 |

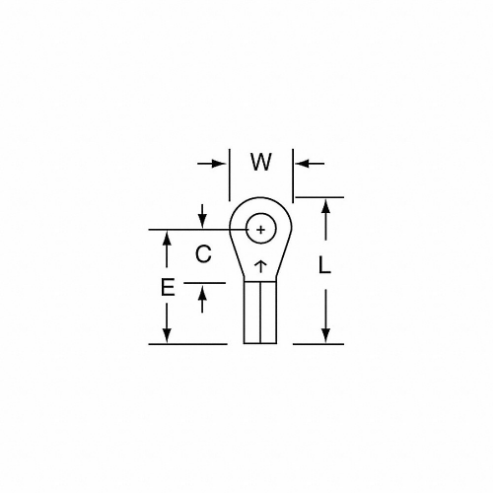

7100163915 | #4 | 3/5" | 1/4" | Bare | 600V | 347°F | Copper | Crimp Termination Only | 1000 | €315.02 | |
 |
7100164076 | #8 | 0.73" | - | Bare | 600V | 347°F | Copper | - | 500 | €284.98 |
