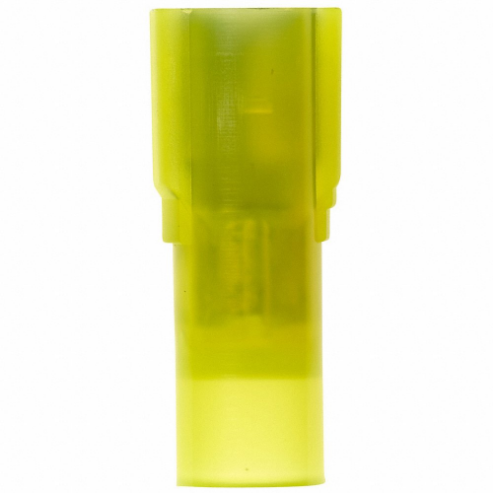

3M 7000133400 80611465768 / 58930 / MNI10-250DFIX Female Disconnect, Yellow, Full Coverage, 12 AWG to 10 AWG Wire Size Range, Tin
Item: AE7DJDModel: 7000133400Cross Ref: 5X426 / 80611465768 / 58930 / MNI10-250DFIX
7 In Stock
Ships within 2 days via
10.00% off
€127.27 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Female Disconnect |
| Barrel Inside Dia. | 0.128" |
| Barrel Length | 1/4" |
| Barrel Outside Dia. | 0.145" |
| Barrel Size | Standard |
| Barrel Style | Interlocking |
| Color Code | Yellow |
| Connection Type | Crimp |
| Connector Style | Insulation Displacement |
| Contact Finish | Tin |
| Contact Material | Brass |
| Diameter (d) | 0.23" |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation | Full |
| Insulation Color | Yellow |
| Insulation Coverage | Full Coverage |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Male Tab Width (w') | 1/4" |
| Mates With Male Tab Width (w') | 1/4" |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Max. Wire Size | 10 AWG |
| Minimum Wire Size | 12 AWG |
| Overall Dia. | 0.23" |
| Overall Length | 0.99" |
| Rohs Compliant | Yes |
| Seam | Butted |
| Seam Style | Butted |
| Tab Size | 0.032" x 0.25" |
| Tab Thickness | 0.032" |
| Tab Width | 1/4" |
| Terminal Style | Fully Insulated |
| Terminal Type | Female Socket , Socket |
| Termination Style | Crimp |
| Wire Size | 12 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 2.51 |
| Ship width (cm) | 4.57 |
| HS code | 8536904000 |
| Country of Origin | US |
Product Variants
| Product | Model | Wire Size | Insulation Color | Barrel Inside Dia. | Seam | Overall Length | Color Code | Insulation Material | Insulation | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7100164302 | 16 AWG to 14 AWG | Blue | 0.076" | Brazed | 0.91" | Blue | Nylon | Full | 1 | €1.32 | |
 |

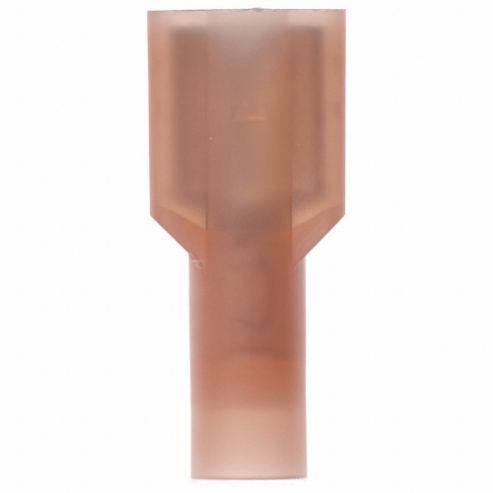

7100164303 | 22 AWG to 18 AWG | Red | 0.076" | Brazed | 0.91" | Red | Nylon | Full | 1 | €1.33 | |
 |
7100164301 | 12 AWG to 10 AWG | Yellow | 0.128" | Brazed | 0.99" | Yellow | Nylon | Full | 500 | €689.49 |
