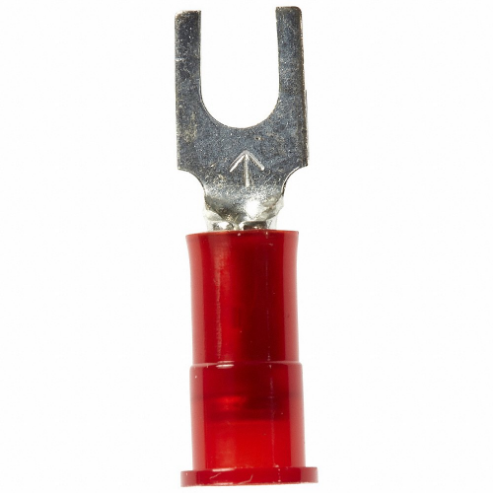

3M MNG18-6FB/SK Fork Terminal Red 22 To 18 Awg
Item: AC2FAAModel: MNG18-6FB/SKCross Ref: 2JJG2
7 In Stock
Ships within 2 days via
10.00% off
€931.42 /pkg. of 1000
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fork Terminal |
| Barrel Length | 44" |
| Barrel Style | Insulation Grip |
| Color Code | Red |
| Connection Material | Copper |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation Color | Red |
| Insulation Dia | 0.145" |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 18 AWG |
| Min. Wire Size | 22 AWG |
| Overall Length | 21/25" |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Butted |
| Stud Size | #6 |
| Terminal Connection | Crimp |
| Terminal Shape | Block Fork |
| Terminal Type | Block |
| Termination | Crimp Termination Only |
| Termination Style | Crimp |
| Tongue Thickness | 0.03" |
| Tongue Width | 1/4" |
| Wire Size | 22 AWG to 18 AWG |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.13 |
| Ship width (cm) | 2.54 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Variants
| Product | Model | Insulation Color | Stud Size | Wire Size | Terminal Type | Tongue Width | Color Code | Min. Wire Size | Insulation Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

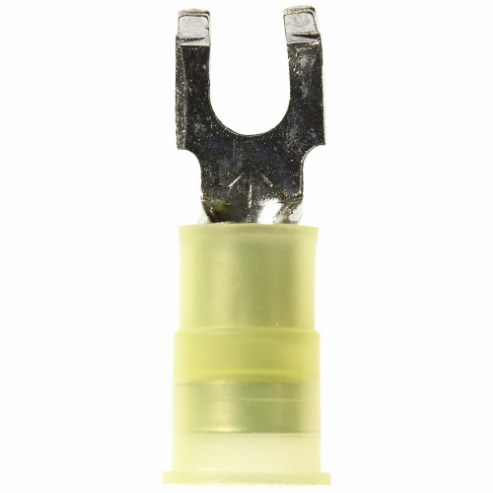

MNG10-8FBK | Yellow | #8 | 12 AWG to 10 AWG | Block | 0.32" | Yellow | 12 AWG | Nylon | 500 | €693.71 | |
 |
MNG14-6FBK | Blue | #6 | 16 AWG to 14 AWG | Block | 0.3" | Blue | - | Nylon | 1000 | €1,195.17 | |
 |
MNG14-6FFBK | Blue | #6 | 16 AWG to 14 AWG | Flanged Block | 0.3" | Blue | 16 AWG | Nylon | 1000 | €1,293.11 | |
 |
MNG14-10FLK | Blue | #10 | 16 AWG to 14 AWG | Locking | 0.32" | Blue | - | Nylon | 1000 | €939.80 | |
 |

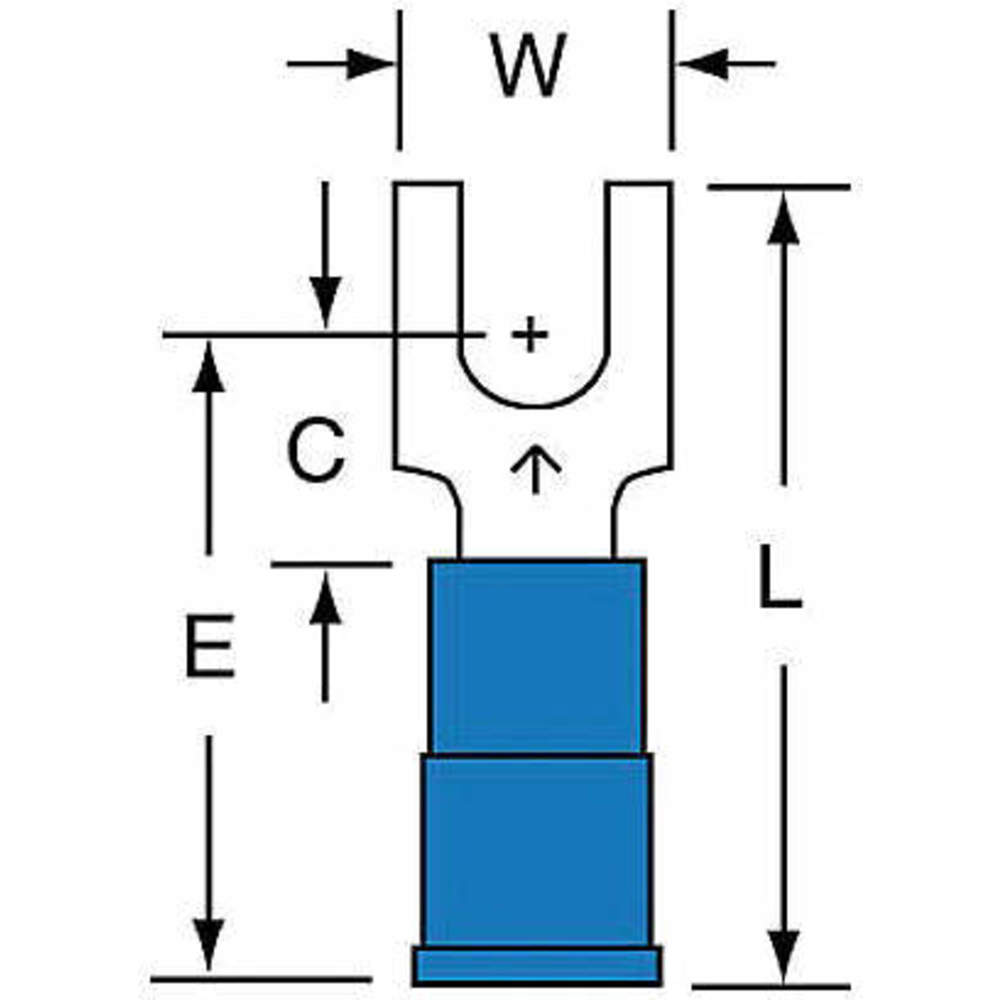

MNG14-8FBK | Blue | #8 | 16 AWG to 14 AWG | Block | 0.3" | Blue | 16 AWG | Nylon | 1000 | €1,090.12 | |
 |

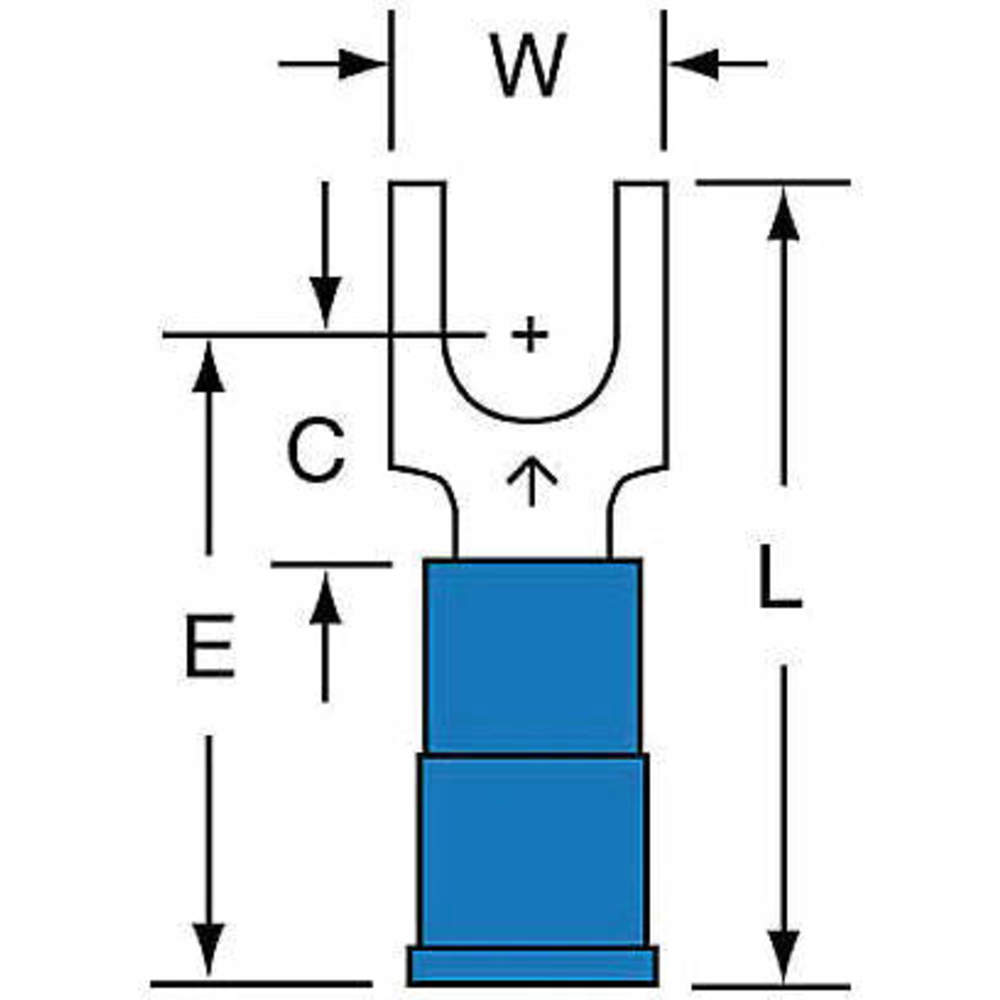

MNG14-10FBK | Blue | #10 | 16 AWG to 14 AWG | Block | - | Blue | 16 AWG | Nylon | 1000 | €1,018.80 | |
 |

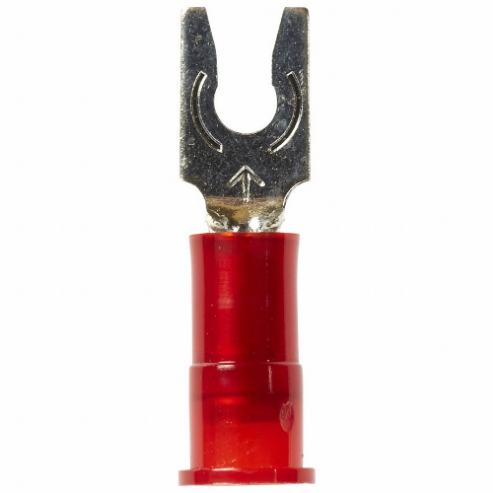

MNG18-4FLK | Red | #4 | 22 AWG to 18 AWG | Locking | - | Red | 22 AWG | Nylon | 1000 | €1,236.88 |
