3M 7000133348 80611464217 / 58775 / MNG14-47PX-A Pin Terminal, Partial Coverage, Blue, Nylon, 0.075 Inch Pin Dia
Item: AD2NDEModel: 7000133348Cross Ref: 3RWN1 / 80611464217 / 58775 / MNG14-47PX-A
7 In Stock
Ships within 2 days via
10.00% off
€240.88 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pin Terminal |
| Barrel Id | 0.08" |
| Barrel Inside Dia. | 2/25" |
| Barrel Inside Diameter | 2/25" |
| Barrel Outside Diameter | 1/5" |
| Barrel Style | Insulation Grip |
| Color Code | Blue |
| Compatible With Product Type | Copper Wires |
| Connection Material | Copper |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation Color | Blue |
| Insulation Coverage | Partial Coverage |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Max. Insulation Outside Dia. | 0.145" |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 14 AWG |
| Min. Wire Size | 16 AWG |
| Minimum Operating Temperature | -40°F |
| Overall Length | 0.9" |
| Pin Dia. | 0.075" |
| Pin Length | 0.47" |
| Ring Type | Standard |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Butted |
| Special Features | Funnel-Designed, Seamless Brass Sleeve Offers Easy Insertion Of Wires, Provides Quick Connection For Set Screws Or Clamps That Are Used To Make Electrical Contact |
| Terminal Connection | Crimp |
| Terminal Type | Pin |
| Termination Style | Crimp |
| Wire Size | 16 AWG to 14 AWG |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 2.29 |
| Ship width (cm) | 4.06 |
| HS code | 8536904000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Wire Size | Insulation Color | Color Code | Barrel Inside Dia. | Insulation Material | Insulation Type | Max. Voltage | Seam | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

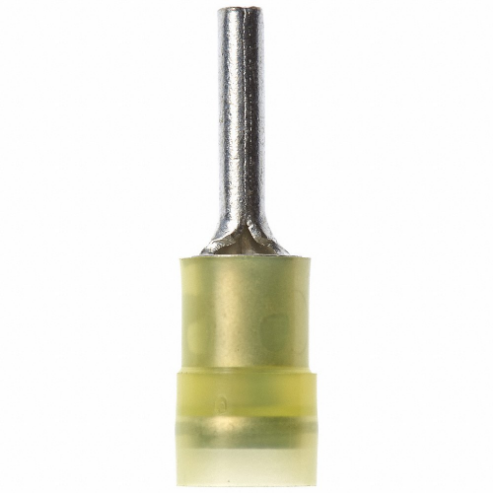

7000133373 | 12 AWG to 10 AWG | Yellow | Yellow | 0.11" | Nylon | Nylon | 600V | Brazed | 50 | €234.13 |
