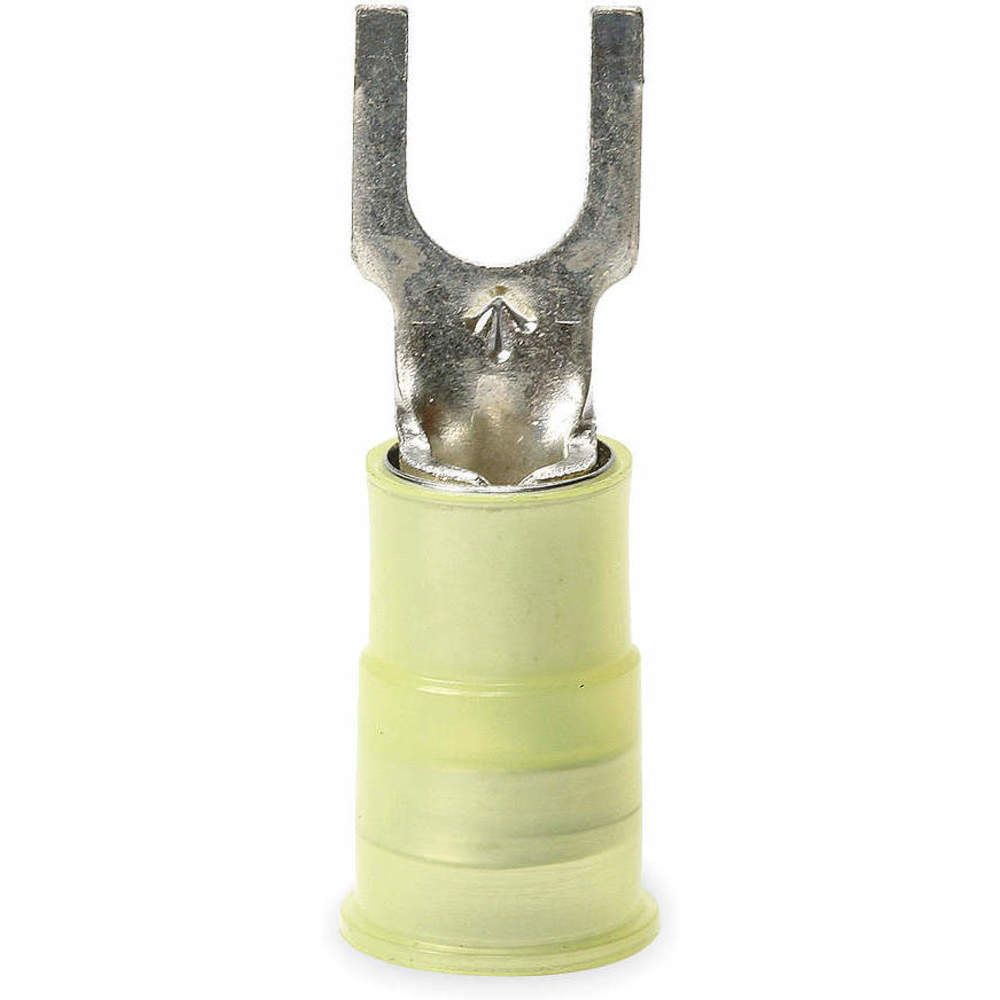

3M MNG10-8FBX Fork Terminal Yellow 12 To 10 Awg
Item: AD2NCWModel: MNG10-8FBXCross Ref: 3RWL2
7 In Stock
Ships within 2 days via
5.00% off
€143.55 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fork Terminal |
| Barrel Inside Dia. | 0.135" |
| Barrel Length | 0.55" |
| Barrel Style | Insulation Grip |
| Color Code | Yellow |
| Connection Material | Copper |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation Color | Yellow |
| Insulation Dia. | 1/4" |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Max. Wire Size | 10 AWG |
| Min. Wire Size | 12 AWG |
| Overall Length | 1.03" |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Butted |
| Stud Size | #8 |
| Terminal Connection | Crimp |
| Terminal Shape | Block Fork |
| Terminal Type | Block |
| Termination | Crimp Termination Only |
| Termination Style | Crimp |
| Tongue Thickness | 0.04" |
| Tongue Width | 0.32" |
| Wire Size | 12 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 2.62 |
| Ship width (cm) | 4.32 |
| HS code | 8536904000 |
| Country of Origin | US |
Product Variants
| Product | Model | Wire Size | Insulation Color | Stud Size | Max. Wire Size | Min. Wire Size | Terminal Shape | Terminal Type | Color Code | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MNG10-8FBK | 12 AWG to 10 AWG | Yellow | #8 | 10 AWG | 12 AWG | Block Fork | Block | Yellow | 500 | €693.71 | |
 |
MNG14-6FBK | 16 AWG to 14 AWG | Blue | #6 | 14 AWG | 16 AWG | Block Fork | Block | Blue | 1000 | €1,195.17 | |
 |
MNG14-6FFBK | 16 AWG to 14 AWG | Blue | #6 | 14 AWG | 16 AWG | Flanged Block Fork | Flanged Block | Blue | 1000 | €1,293.11 | |
 |
MNG14-10FLK | 16 AWG to 14 AWG | Blue | #10 | 14 AWG | 16 AWG | Locking Fork | Locking | Blue | 1000 | €939.80 | |
 |
MNG14-8FBK | 16 AWG to 14 AWG | Blue | #8 | 14 AWG | 16 AWG | Block Fork | Block | Blue | 1000 | €1,090.12 | |
 |
MNG14-10FBK | 16 AWG to 14 AWG | Blue | #10 | 14 AWG | 16 AWG | Block Fork | Block | Blue | 1000 | €1,018.80 | |
 |
MNG18-4FLK | 22 AWG to 18 AWG | Red | #4 | 18 AWG | 22 AWG | Locking Fork | Locking | Red | 1000 | €1,236.88 |
