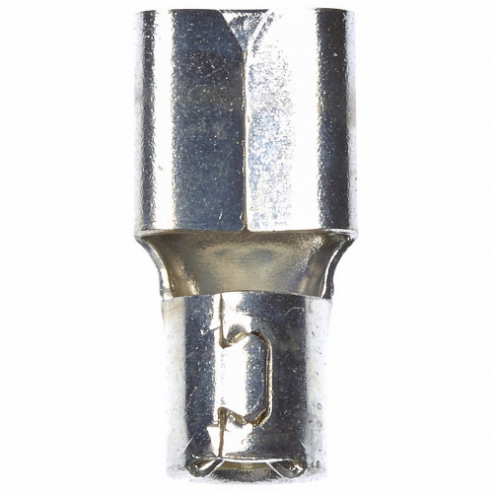

3M 7100164294 80610531156 / 69557 / MI10-250DFK Female Disconnect, Bare, Non-Insulated
Item: AB9KVVModel: 7100164294Cross Ref: 2DRJ3 / 80610531156 / 69557 / MI10-250DFK
7 In Stock
Ships within 2 days via
10.00% off
€506.76 /pkg. of 500
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Female Disconnect |
| Barrel Inside Dia. | 0.128" , 3/25" |
| Barrel Length | 1/4" |
| Barrel Size | Standard |
| Barrel Style | Interlocking |
| Color Code | Bare |
| Connection Material | Brass |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Brass |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation | None |
| Insulation Color | Bare |
| Insulation Type | Non Insulated |
| Mates With Female Width | 1/4" |
| Mates With Male Tab Width (w') | 1/4" |
| Max. Temp. | 347°F |
| Max. Voltage | 600V |
| Max. Wire Size | 10 AWG |
| Minimum Operating Temperature | 347°F |
| Minimum Wire Size | 12 AWG |
| Overall Length | 16/25" |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Butted |
| Special Features | Allows For Quick And Easy Disconnect Of Wires, Dents And Rolled Edges Of This Female Disconnect Terminal Offer Excellent Holding Force |
| Tab Size | 0.032" x 0.25" |
| Tab Thickness | 0.032" |
| Tab Width | 1/4" |
| Terminal Type | Socket |
| Termination Style | Crimp |
| Wire Size | 12 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.72 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 1.63 |
| Ship width (cm) | 2.54 |
| HS code | 8536904000 |
| Country of Origin | US |
