FREE delivery on orders over €150

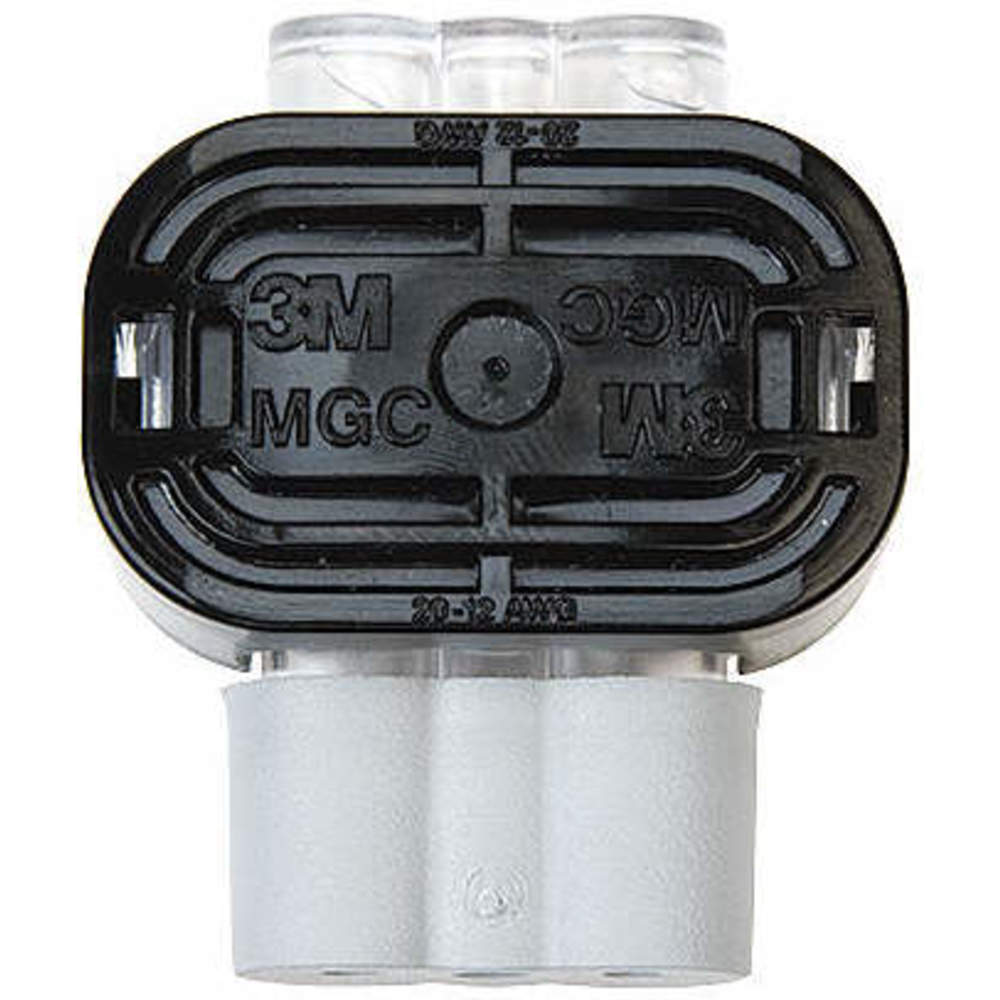

3M 7100006290 80611434152 / 56827 / MGC-BAG Moisture Guard Connector Black 3port
Item: AD7EPUModel: 7100006290Cross Ref: 4DYW6 / 80611434152 / 56827 / MGC-BAG
7 In Stock
Ships within 2 days via
5.00% off
€127.56 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Moisture Guard Connector |
| Application | Moisture Resistant |
| Color | Black |
| Compatible With Product Type | Irrigation, Lighting |
| Connector Type | Run Tap |
| Contact Finish | Tin |
| Contact Material | Brass |
| Crimping Tool | Pliers |
| Features | Up Protection |
| Fill Material | Gel |
| Flame Retardant | Yes |
| Flammability Rating | V-2 |
| Insulation Material | Polycarbonate |
| Material | Polycarbonate |
| Max. Insulation Dia. | Outside Ports 0.210" / Inside Port 0.150" |
| Max. Insulation Dia. | 0.15" |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Insulation Diameter | 0.15" |
| Maximum Run Wire Size | 18 AWG |
| Maximum Tap Wire Size | 18 AWG |
| Minimum Run Wire Size | 20 AWG |
| Minimum Tap Wire Size | 20 AWG |
| No. Of Ports | 3 |
| Number Of Ports | 3 |
| Resistance Properties | Uv Resistant, Water Resistant, Weather Resistant |
| Rohs Compliant | Yes |
| Run Wire Size Range | 20 AWG to 18 AWG |
| Tap Wire Size Range | 20 AWG to 18 AWG |
| Type | Gel Filled, Moisture Resistant |
| Ul 94 Flammability Rating | V-2 |
| Wire Size | 20 AWG to 12 AWG |
| Wire Type | Electrical |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 15.24 |
| HS code | 8536904000 |
| Country of Origin | US |
Product Variants
| Product | Model | Connector Type | Number Of Ports | Color | Insulation Material | Fill Material | Max. Voltage | Flame Retardant | Wire Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

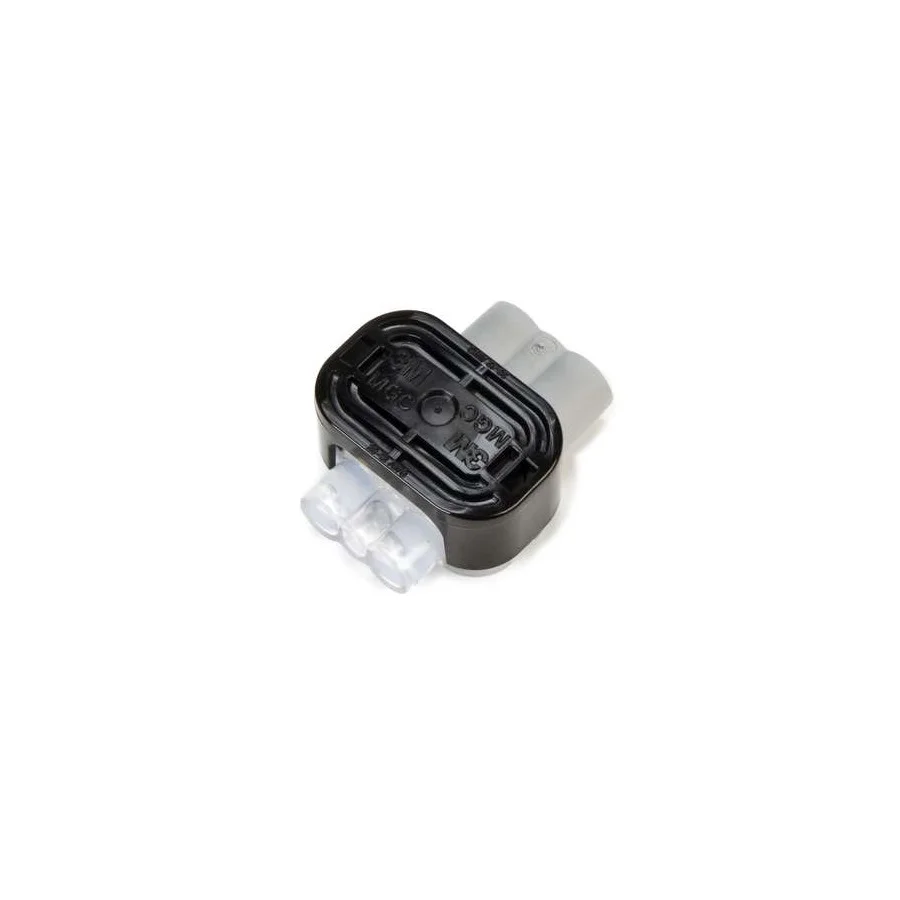

7000006223 | Moisture Guard | 3 | Black | Polycarbonate | Gel | 600V | Yes | Electrical | 100 | €450.55 |
