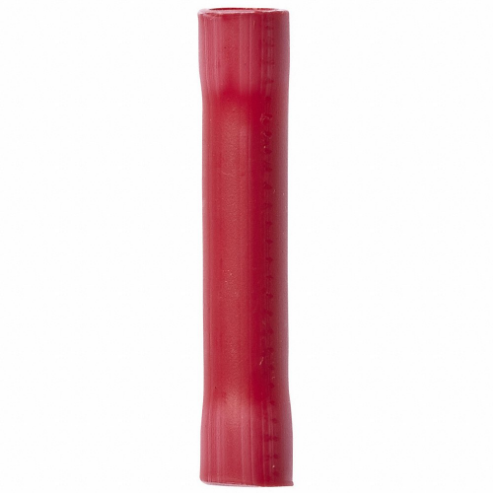

3M 7000133656 80611602592 / 59998 / BSV18Q Splice Connector, 18 AWG/20 AWG/22 AWG Wire Size Range, Vinyl
Item: AF7QQBModel: 7000133656Cross Ref: 22FX39 / 80611602592 / 59998 / BSV18Q
7 In Stock
Ships within 2 days via
10.00% off
€18.95 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Splice Connector |
| Barrel Inside Dia. | 0.145" |
| Color Code | Red |
| Combo Termination And Material | Vinyl |
| Compatible Installation Tool Model Number | Th-440, Th-450, Tr-490 |
| Connection Material | Copper |
| Connection Type | Crimp |
| Connector Type | Butt Splice |
| Insulation Color | Red |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 18 AWG |
| Minimum Wire Size | 22 AWG |
| Overall Length | 1" |
| Rohs Compliant | Yes |
| Seam | Butted |
| Seam Style | Butted |
| Wire Range | 22 AWG to 18 AWG |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 1.27 |
| HS code | 8536904000 |
| Country of Origin | US |
Product Variants
| Product | Model | Insulation Color | Overall Length | Wire Range | Barrel Inside Dia. | Insulation Material | Max. Voltage | Max. Temp. | Connection Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

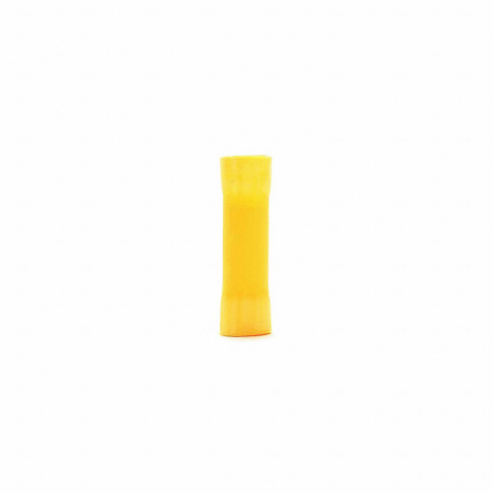

7000133654 | Yellow | 1.02" | 12 AWG to 10 AWG | 1/4" | Vinyl | 600V | 221°F | Crimp | 25 | €28.27 | |
 |
7000133655 | Blue | 1" | 16 AWG to 14 AWG | 0.17" | Vinyl | 600V | 221°F | Crimp | 25 | €23.30 |
