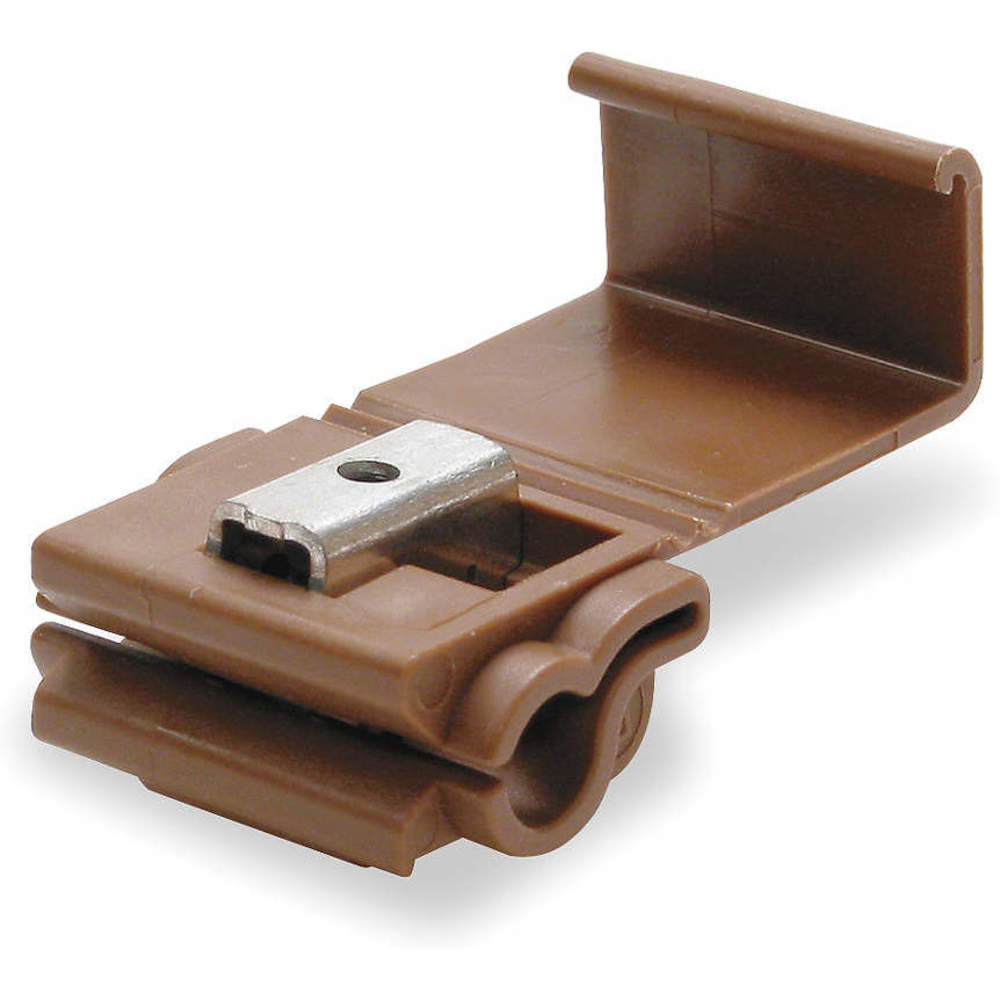

3M 567 BOX Connector Brown 2 Ports 18-10awg
Item: AE2NYLModel: 567 BOXCross Ref: 4YT74
7 In Stock
Ships within 2 days via
10.00% off
€142.30 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insulation Disp. Connector |
| Application | Dry Environment |
| Color | Brown |
| Compatible Installation Tool Model Number | E-9BM |
| Compatible With Product Type | Building Wire, Fixtures, Luminaires, Signs |
| Connector Type | Run Tap |
| Contact Finish | Tin |
| Contact Material | Brass |
| Crimping Tool | 2JLF8 |
| Fill Material | No Fill |
| Flame Retardant | Yes |
| Flammability Rating | V-2 |
| For Run Wire Size | 10 AWG |
| Insulation Material | Polypropylene |
| Material | Polypropylene |
| Max. Insulation Dia. | 0.145" Tap/ 0.190" Run |
| Max. Run Conductors | 1 |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Insulation Diameter | 0.145" |
| Maximum Run Wire Insulation Diameter | 0.19" |
| Maximum Run Wire Size | 10 AWG |
| Maximum Tap Conductors | 1 |
| Maximum Tap Wire Insulation Diameter | 0.19" |
| Maximum Tap Wire Size | 16 AWG |
| Maximum Voltage | 1000V |
| Minimum Run Wire Size | 10 AWG |
| Minimum Tap Wire Size | 18 AWG |
| No. Of Ports | 2 |
| Number Of Ports | 2 |
| Rohs Compliant | Yes |
| Run Wire Size Range | 10 AWG |
| Special Features | Self Stripping |
| Tap Wire Size Range | 18 AWG to 16 AWG |
| Type | Dry Environment |
| Ul 94 Flammability Rating | V-2 |
| Wire Range | 18 AWG to 10 AWG |
| Wire Type | Electrical |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 11.94 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 11.43 |
| HS code | 8536904000 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Ports | Connector Type | Color | Insulation Material | Fill Material | Max. Voltage | Flame Retardant | Wire Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7000005878 | 2 | Single U Element | White | Polypropylene | No Fill | 600V | Yes | Electrical | 5000 | €1,718.83 | |
 |
7000005870 | 2 | Single U Element | Beige | Polypropylene | No Fill | 600V | No | Electrical | 5000 | €1,356.48 | |
 |
7000148820 | 2 | Pigtail | Red | Polypropylene | No Fill | 600V | Yes | Electrical | 5000 | €3,744.14 | |
 |
903-BULK | 2 | Single U Element | Yellow | Polypropylene | No Fill | 600V | No | Electrical | 1000 | €673.63 | |
 |
902 | 2 | Single U Element | Brown | Polypropylene | No Fill | 600V | Yes | Electrical | 1000 | €676.75 | |
 |
314U-BOX | 3 | Single U Element | White | Nylon | No Fill | 600V | Yes | Electrical | 500 | €1,115.29 | |
|
7100177012 | 2 | Single U Element | Brown | Polypropylene | No Fill | 600V | Yes | Electrical | 500 | €696.21 |
