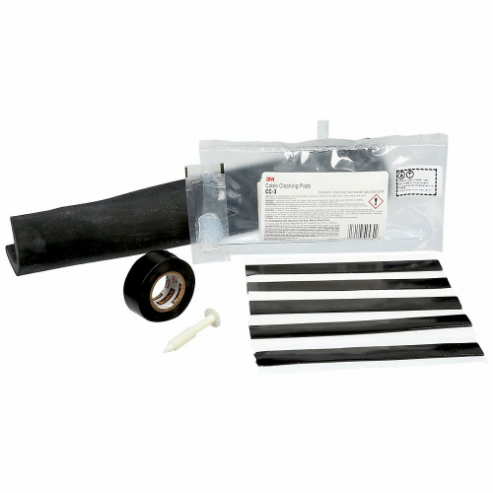

3M 7000027613 80610735492 / 08316 / 5319 Resin Compound Splice Kit, Splice Termination, Full Coverage
Item: AE7NGYModel: 7000027613Cross Ref: 5ZNL9 / 80610735492 / 08316 / 5319
7 In Stock
Ships within 2 days via
10.00% off
€598.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Motor Lead Splice Kit |
| Body Material | Epdm Rubber |
| Bolt Length | 1 1/2" |
| Color | Black |
| Compatible With Product Type | Pigtail, Non-Shielded Cable Connections |
| Compatible With Series | 30000 Series |
| Contact Material | Copper |
| For Wire Type | Motor Lead Cable |
| Heat Shrink Material | EPDM Rubber |
| Includes | (3) Bags Of Solvent Cleaning Cloths, (3) Instruction Sheets, (3) Locking Pins, (3) Mastic Sealing Strips, (3) Pigtail Lug Covers, (3) Scotch Linerless Rubber Splicing Tape 130C Strips, (3) Tubes Of Silicone Grease |
| Insulation Coverage | Full Coverage |
| Insulation Material | EPDM Rubber |
| Material | Epdm Rubber |
| Max. Cable Dia. | 0.75 to 1.12 In. |
| Max. Cable Dia. | 0.75" to 1.12" |
| Max. Temp. | 194°F |
| Max. Voltage | 8000V |
| Maximum Wire Size | 500 kcmil |
| Minimum Wire Size | 4/0 AWG |
| Number Of Pieces | 18 |
| Number Of Splices | 3 |
| Overall Length | 13" |
| Resin Material | Resin |
| Resistance Properties | Abrasion Resistant, Puncture Resistant |
| Rohs Compliant | Yes |
| Special Features | Mastic Strips Seal Moisture, Slip-On Lug Cover |
| Standard Length | 13" |
| Standard Length | 13.0 In. |
| Tensile Strength | 1400 psi |
| Termination Style | Splice |
| Voltage Rating | 1000V |
| Wall Type | Thick |
| Wire Size | 4/0 AWG to 500 kcmil |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 14.73 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 19.05 |
| HS code | 8546900000 |
| Country of Origin | US |
Product Variants
| Model | Overall Length | Wire Size | Standard Length | Max. Cable Dia. | Bolt Length | Termination Style | Max. Voltage | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7000027610 | 8" | 10 AWG to 4 AWG | 8" | 0.3" to 0.51" | 1/2" | Splice | 8000V | Epdm Rubber | €295.29 | |
| 7000027611 | 9 1/2" | 4 AWG to 1/0 AWG | 9 1/2" | 0.43" to 0.65" | 3/4" | Splice | 8000V | Epdm Rubber | €355.22 | |
| 7000027612 | 11" | 2 kcmil to 250 kcmil | 11" | 0.53" to 0.88" | 1 1/4" | Splice | 8000V | Epdm Rubber | €422.73 |
