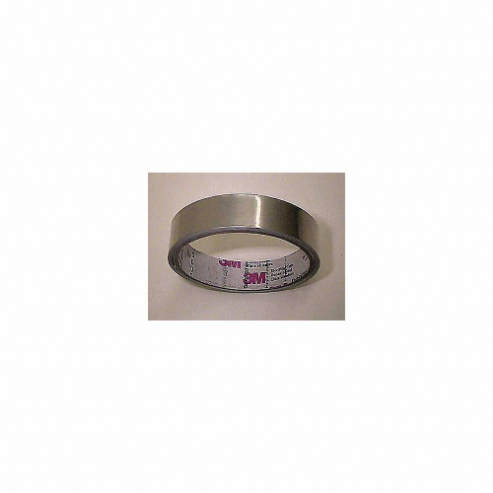

3M 7000132708 80610884480 / 49871 / 1183-3/4"X18YD Conductive Electrical Tape Foil, 1183, 3/4 Inch x 54 Ft., 2.8 mil Tape Thick
Item: CF2LTZModel: 7000132708Cross Ref: 2JNW4 / 80610884480 / 49871 / 1183-3/4"X18YD
In Stock
Get it by Monday, Dec 22
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Shielding Foil Tape |
| Adhesion To Steel | 35 oz./in. |
| Breaking Strength | 25 lbs./in. |
| Color | Copper , Silver |
| Core Dia. | 3" |
| Duct Tape Adhesive | Acrylic |
| Elongation | 5% |
| Imperial Tape Length | 54 ft. |
| Imperial Tape Width | 3/4" |
| Material | Copper Foil |
| Maximum Tape Performance Temperature | 266°F |
| Metric Tape Length | 16.5m |
| Metric Tape Width | 19.1 mm |
| Minimum Tape Performance Temperature | -40°F |
| Number Of Adhesive Sides | 1 |
| Product Form | Continuous Roll |
| Series | 1183 Series |
| Shape | Continuous Roll |
| Shielding Effectiveness | 50 dB to 70 dB |
| Specifications Met | EU, ROHS, UL LISTED |
| Tape Adhesive Format | Single-Sided |
| Tape Adhesive Material | Acrylic |
| Tape Backing Construction | Foil |
| Tape Backing Material | Tin Plated Copper |
| Tape Color | Copper |
| Tape Color | Silver |
| Tape Resistance Properties | Heat-Resistant, Oil-Resistant, Oxidation-Resistant, Solvent-Resistant |
| Tape Sub-type | General Purpose Foil |
| Tape Tensile Strength | 25 lbs./in. |
| Tape Thickness | 2.8 mil. |
| Tape Type | Foil |
| Voltage Rating | 600V |
Shipping Info:
| Ship weight (kg) | 2.28 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 17.78 |
| Country of Origin | TW |
Product Variants
| Product | Model | Tape Sub-type | Tape Thickness | Tape Backing Material | Tape Adhesive Material | Tape Color | Tape Tensile Strength | Shape | Tape Adhesive Format | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7010320384 | General Purpose Foil | 2.8 mil. | Tin Plated Copper | Acrylic | Silver | 25 lbs./in. | Continuous Roll | Single-Sided | 9 | €1,641.50 |
